Ultimate Carburetor Carb Repair Rebuild Kit
Ultimate carburetor rebuild kit for the Honda CB450 and CL450 models from 1968-1971. This is the most complete kit available! These rebuild kits are for Honda carburetor models 14H and 14L which were used on the 5 speed 450's.
NOTE: There were many different carburetor models for the CB450 and CL450, make sure to check your carb model number before ordering. The main jet sizes in the later model carbs are larger. (#145, #150)
This kit comes with 2 carburetor rebuild kits and 2 floats. Made in Taiwan.
Honda Part Number: 16013-283-004 (Float)

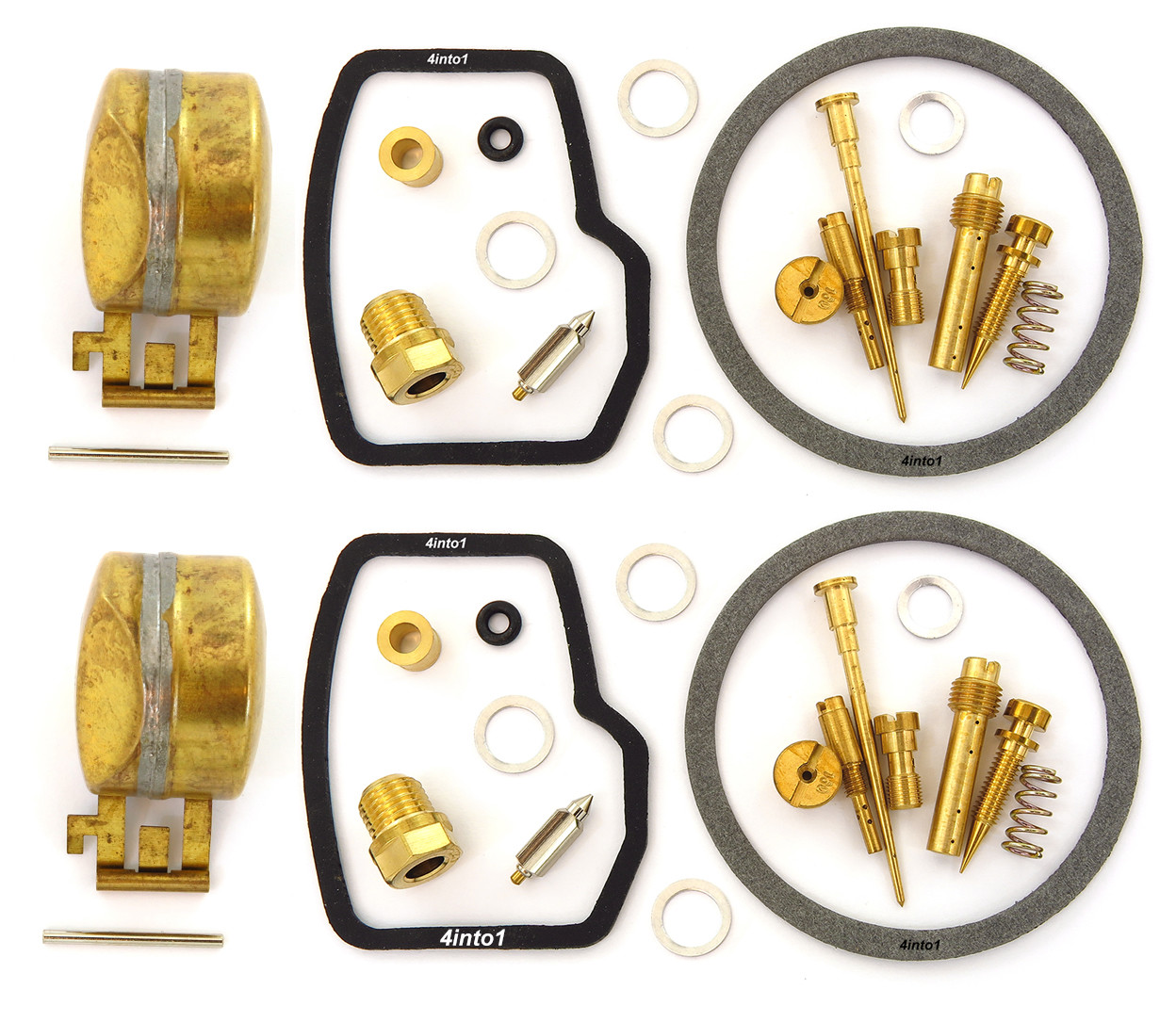

Each Kit Includes:
Float bowl gasket
Round Slide assembly Gasket
D14 slide needle and round needle seat
Float needle and 2.0 seat with washer
#130 main jet
#38 slow jet
Air mixture screw with spring
O-ring for air mixture screw
3 additional metal washers
Needle jet holder (goes under the main jet)
#38secondary slow jet(goes on top of the primary slow jet)
Fits Honda:
CB450K1 - K4 - 1968-1971 (Carb model 14H and 14L)
CL450K1 - K4 Scrambler - 1968-1971 (Carb model 14H and 14L)
