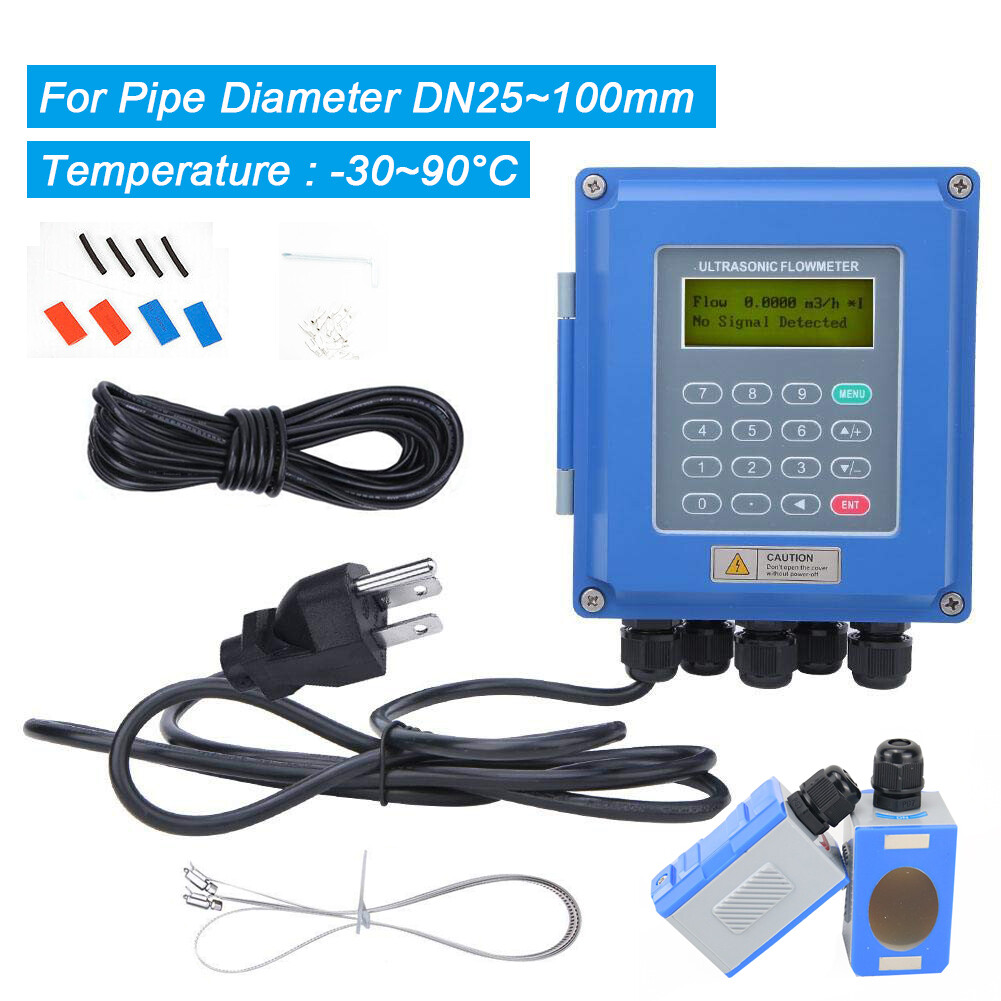

Ultrasonic Liquid Flow Meter Digital Flowmeter with TS-2 Transducer DN25mm-100mm
Note:This type of Ultrasonic flow meter package with TS-2 small type Transducer (size: 42*25*32mm) for Pipe Diameter DN25~100mm, Temp : -30~90℃
Introduction:
Flow meter can be virtually applied to a wide range of long-term online measurement. Convertor protection class IP67,transducer protection class IP98.A variety of liquid applications can be accommodated: ultra-pure liquids ,portable water,chemicals,raw sweage,reclaimed water,cooling water,river water,plant.etc.
Feature :
High Accuracy
1%
Wide measuring range
Several types transducer for selection, pipe size from Dn15mm to Dn6000mm (optional)
High Reliability
Adopt low voltage, multi-pulse technology to improve accuracy, operation life and reliability.
Strong Anti-interference
Dual-balance signal differential receiver/driver circuit to avoid interference of converter, TV tower, high voltage line etc.
Powerful Recording Function
Automatically record the following data:
1. The totalizer data of the last 512 days/128 months/10 years
2. The time and corresponding flow rate of the last 6 4 times of power on and off events
3. The working status of the last 32 days
Support Heat Measurement
Connect the temperature transducer ,can finish the heat/energy measurement
Support SD card Memory
Optional SD card
Working Environment:
Main Unit
Transducer
Protection Level
IP67
IP68
Humidity
≤85%RH
Temperature
-20~60℃
-30~160℃
Basic Parameters:
Accuracy
≤1%
Velocity range
0~±10m/s, Bi-directional measurement
Pipe size
DN25-100mm
Temperature
-30~90℃
Type of liquid
Single liquid can transmit ultrasound, such as water, sea water, sewage, oil, alcohol, etc.
Pipe material
Steel, stainless steel, cast iron, copper, PVC, aluminmum, glass steel, etc. Liner is allowed.
Signal output
1 way 4-20mA output
1 way OCT pulse output
1 way Relay output
Signal input
3 way 4-20mA input, achieve to heat measurement by connecting PT100 platinum resistor.
Interface
RS485, support MODBUS
Data storage
SD card regularly store the pre-set results(optional)
Power supply
DC8~36V or AC85~264V
Standard Configurations:
1. Ultrasonic Flowmeter
2. A pair TS-2 Transducer
3. 2 x5m Signal cable
4. Steel Belt
5. Certificate of Warranty
