Technical Data

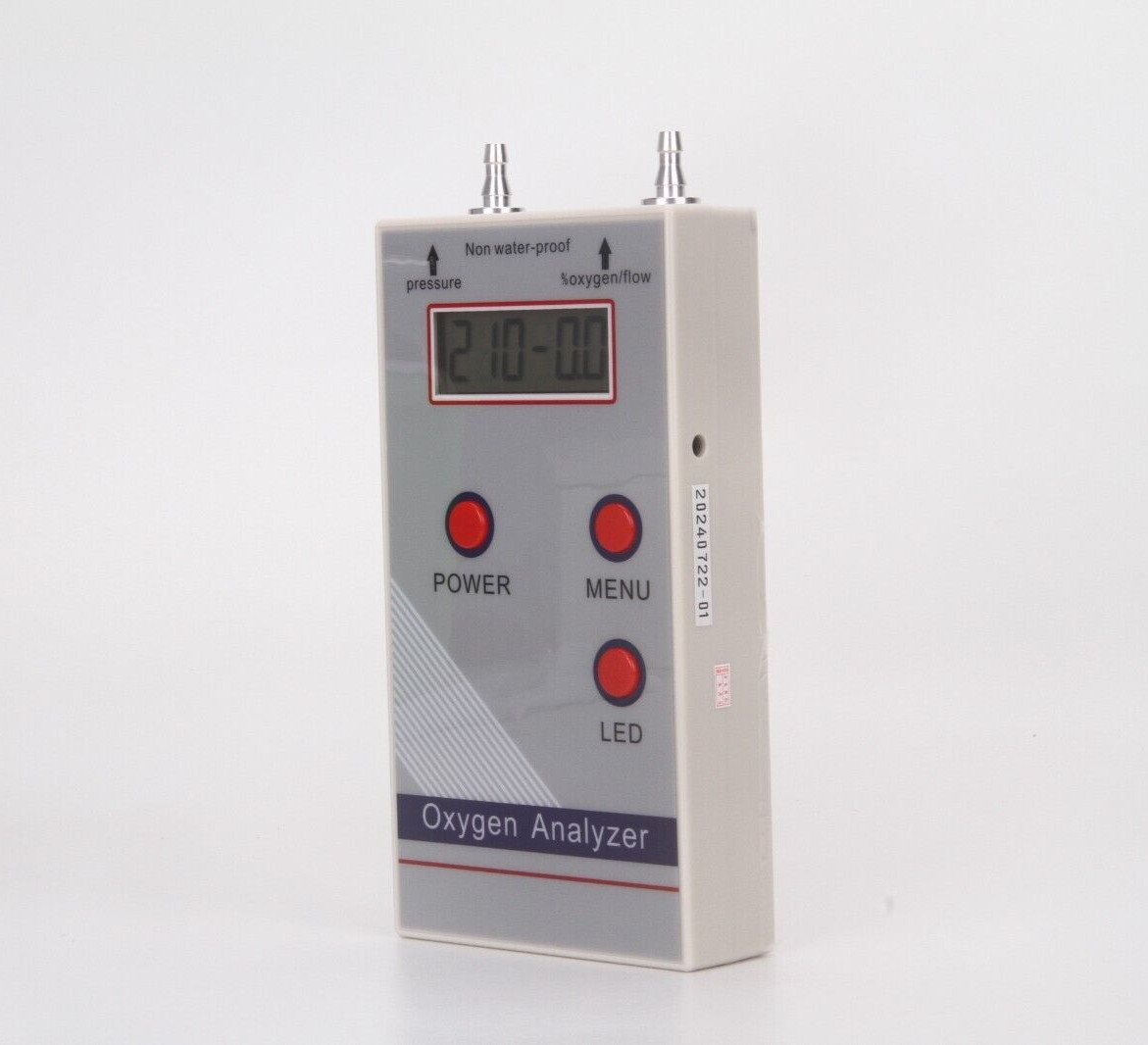

Ultrasonic Oxygen Concentration Purity Tester Meter Detector O2 Analyzer73-100% with 0.1% resolution
Ultrasonic oxygen sensor with accuracy ≤±1.5%
Battery Lasts >24 hours. Comes with a rechargeable Li-ion 1000mAh and wall plug charger.
Made with strong ABS plastic housing. Comes with two barb inlets for easy connection.
The Oxygen Analyzer is specially used for detecting the concentration of O2 generated by molecular sieve O2 Concentrator.
The oxygen measurement we offer has high sensitivity. Due to stable quality, our instrument can last over 5 years.
Flow:
Range:: 0 to 10.0 L/min
Input:: PSA O2 Machine output only
Resolution: 0.1 L/min
Accuracy:: ± 5% F.S. (± 0.2 73% to 95.6% O2
Input: PSA O2 Machine output only
Resolution: 0.1 %
Accuracy: ± 1.5%
Pressure:
Range: 0-100Kpa
Resolution: 1Kpa
Accuracy: ±1%FS
Temperature: Display: +5°C to +55°C LCD
power supply Battery: 12V 1A 3000mAh
Weight: 300g
Length: 17.6 cm
Length Including Inlet Fittings: Thickness: 3.5 cm
