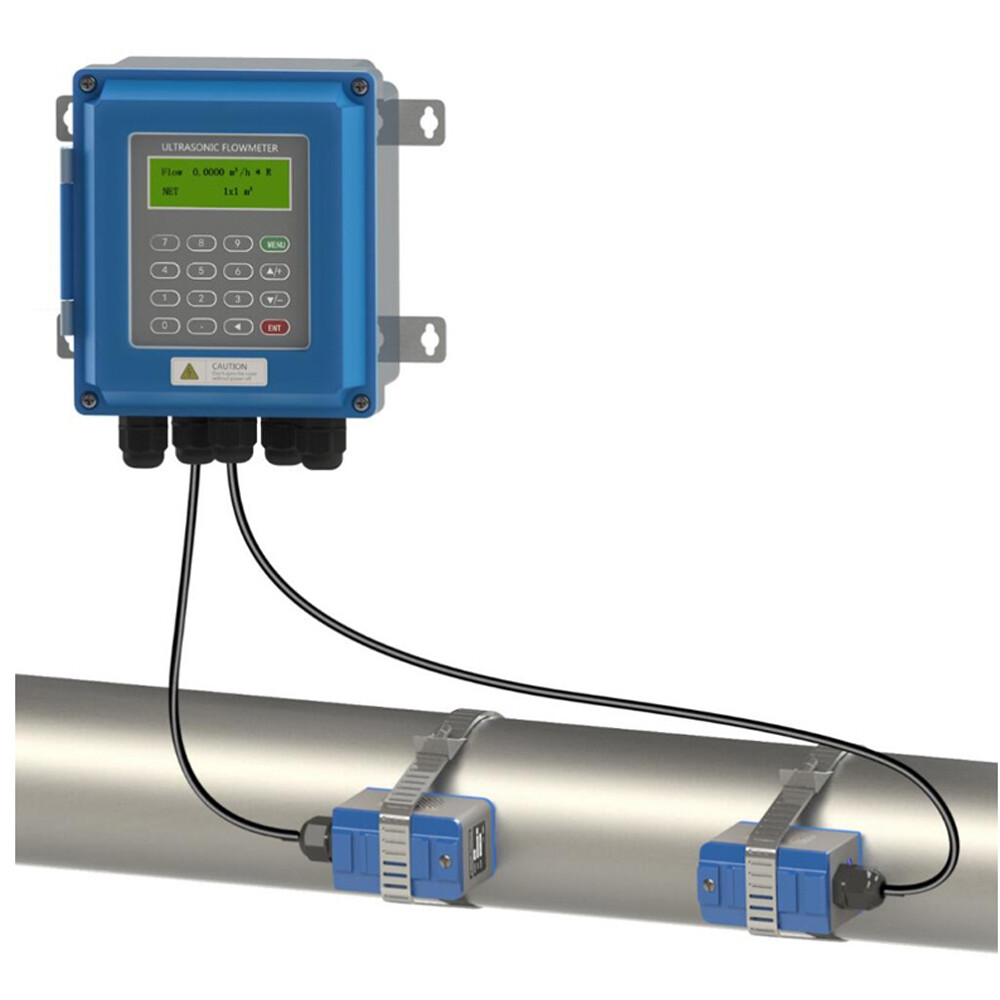

Ultrasonic liquid flow meter RS485 Modbus New TUF-2000B wall-mounted digital flowmeter DN25-100mm for industrial control
Multiple Installation Methods: Installation methods:Wall mounting and Two ways of Din-rail mounting
Main Unit Transducer Protection Level IP67 IP68 Humidity
Temperature -20~60℃ -30~160℃
Accuracy
Velocity range 0~±10m/s, Bi-directional measurement Pipe size DN32~DN6000mm Temperature -30~160℃ Type of liquid Single liquid can transmit ultrasound, such as water, sea water, sewage, oil, alcohol, etc. Pipe material Steel, stainless steel, cast iron, copper, PVC, aluminmum, glass steel, etc. Liner is allowed. Signal output
Signal input 3 way 4-20mA input, achieve to heat measurement by connecting PT100 platinum resistor. Interface RS485, support MODBUS Data storage SD card regularly store the pre-set results(optional) Power supply DC8~36V or AC85~264V
Standard Packing: TUF-2000B Host Steel Belt TS-2 Ultrasonic Transducers 5m*2 Signal Cable Connection terminal and Screwdriver User manual If you need other transducer or extend the signal cable length, please contact us.
