Upgrade T04e T3 A/r.63 420hp Stage Iii Boost Turbocharger Oil Feed+drain Line For Sale

T04e T3A/r .63 420+hp Stage IIIBoost Turbocharger&Wg+Oil Feed& Drain for all 4 or 6 CYL, 1.5L-2.5L Engines

*Notice:Please confirm that there is enough space in your car to install this turbo before purchasing.

Oil lines:

* OIL RETURN LINE: Length: 550mm || Inner Diameter: 21mm
​* OIL FEED LINE: Length: 1000mm || Inner Diameter: 14mm

Turbo Specific:
Exhaust Inlet (Turbo Manifold) Flange:T34 bolt Flange Patterns
ExhaustOutlet Flange:V-Band Flange(ID/OD: 2.5"/3.1")

Turbine Side:
Turbine Trim: 74.2
Turbine A/R: 0.63
Turbine Inducer: 64.8mm
Turbine Exducer: 55.8mm
Turbine exhaust outlet : 79mm
Turbine exhaust inlet: Side:
Compressor Trim: 48.1
Compressor A/R: 0.5
Compressor Inducer: 52.7mm
Compressor Exducer: 76mm
Compressor outlet:78 mm
Compressor inlet:51.5 mm

Oil Inlet:M12*1.25 & 2*M8*1.25
Oil Outlet:2*M8*1.25
Bearing:Journal Bearing
Cooling Type:Oil Cooled
Wastegate:w/ Wastegate
Thrust Bearings:270 Degrees
Hosepower:Up to 420 HP
Turbo Type:Individual
Condition:100% Brand New
Accessories:You will get exactly as shown as picture above
Package Size:30x 28x 24 cm
Package Weight:9180g

Package Inludings:
1 x Turbocharger Kit
1 x 1/8 NPT Turbo Oil Feed Line
1 x Braided Turbo Oil Drain Line

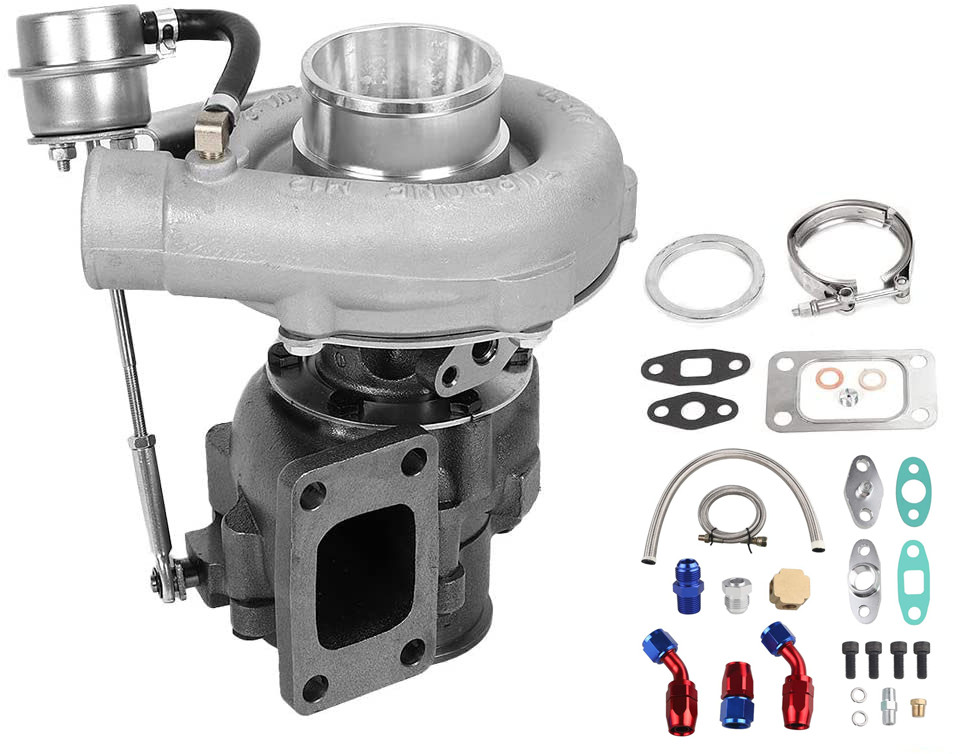

As the pictures show

Features:

-High Quality Material, Cast Housing with Durable Steel
-Boost Engine Horsepower Significantly
-Increase Engine Power and Torque Outpout;
-Maintain Combustion Chamber Pressure and Fuel/Air Load
-Contructed with High Quality Material
-Built for Durability and Strength
OUR ADVANTAGE
1.100% BALANCING TEST, This Turbocharger you will receive has been balanced using the VSR machine technology.
Through the comprehensive and high-precision static and dynamic balance detection technology, and reliability.
2. All of the materials we use are the best materials,and we believe that only the best materials will guarantee the life of the turbo.
Turbine Wheel: the special K418 alloy to achieve stability under high temperatures up to 900 degrees Celsius, and never use K13 Inconel alloy.
Turbine housing : Ductile iron QT450-10 can withstand temperatures up to 700 degrees Celsius
Aluminum blades : Precision machining forging. The lightweight design enables reduced noise and increased response without compromising comfort or longevity

*Factory direct price, ship worldwide; Offering any turbo part leading 2 years warranty under normal use, unlimited mileage.
2 YEARS WARRANTY
Factory direct price, ship worldwide; Offering any turbo part leading 2 years warranty under normal use, unlimited mileage.
