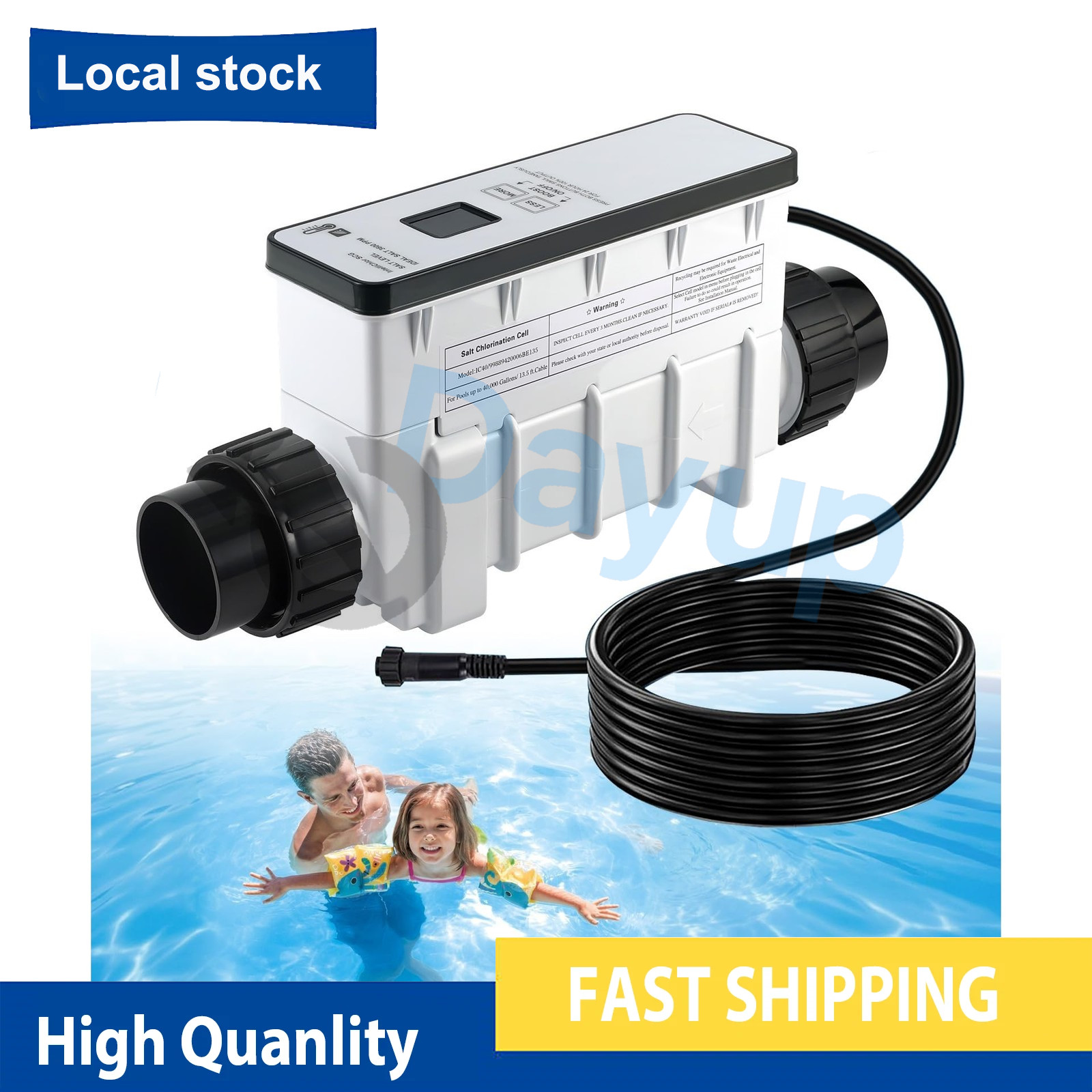

Upgraded Salt Cell for Pentair IntelliChlor IC40 EC-520555 Pool Chlorine 40K Gal For Sale

★Operation Steps:

1. Chlorine Generation Control: ● Adjust the chlorine output percentage (2%-100%) using the “More” and “Less” buttons on the control panel. ● The “Boost Mode” can be activated for 24-hour full power operation (press both the “More” and “Less” buttons simultaneously; press both buttons again to turn off “Boost Mode”).
2. Self-Cleaning Function: The device will automatically reverse the electrode polarity every 2 hours to reduce calcium buildup (for the first 30 days), after which it will switch to every 3 hours.
3. Salt Concentration Requirements: 2800-4500 ppm (ideal value 3600 ppm)

★Common Problems and Solutions

1. Abnormal Chlorine Generation ● If the salt concentration is below 2800 ppm or above 4500 ppm, the device will prompt “SALT LOW”/“SALT HIGH” and stop working. Follow the prompts to add or dilute salt, adjusting the salt concentration to the normal range. ● If the water temperature is too low (<52°F), the device will prompt and stop working, displaying “Cold Water”. Adjust the water temperature to rise above 52°F (11°C) for automatic recovery. ● If water flow is insufficient, the device will stop chlorine production, displaying "NO FLOW": ① Check whether the water flow direction is reversed. ② Remove from the pipe, turn the product power on normally. ③ Manually press the water flow switch and observe the status.

1. If it shows "salt check", it indicates the water pump flow is too low.
2. If it still shows “NO FLOW”, it suggests a fault in the water flow switch sensor. When "FLOW" is displayed, it indicates there is sufficient water flow to produce chlorine.

2. Low Salt False Alarm If the salt has not fully dissolved or the local concentration is too low, run the water pump for at least 24 hours after adding salt, and then check the concentration after the salt dissolves evenly.
3. Abnormal Screen Display If the display is normal during installation but shows a white screen, flickering, or snow screen after some use, this is because the normal operating temperature range for the screen is -4°F to 158°F (-20°C to 70°C). The OLED screen may display abnormally if exposed to high temperatures for an extended period. If these anomalies occur, power off the entire machine and place the product in a cool, ventilated area. Once the temperature drops, restart it for normal use. It is recommended to install the product in a cool, ventilated place or install shielding to avoid direct sunlight.
4. SCG Shut Down, Buttons Inoperative If the power supply voltage is too low, the product will not function properly. Users need to check the power supply voltage, and it will work normally once power is Electrolysis TechnologyThis salt chlorine generator utilizes advanced electrolysis technology, allowing for a gentler electrolysis process that effectively reduces irritating chlorine odors and harmful by-products. It is specifically designed for water bodies up to 40,000 gallons, maintaining clear and luminous pool water throughout the year. The internal electrolytic cell structure has been upgraded for enhanced durability, supporting long-term stable operation.
5. Perfect Compatibility with Original SystemThis product is fully compatible with the Pentair IntelliChlor IC40 system and its automation devices, making it an ideal replacement for the original electrodes. It offers the same high-quality chlorination effect at a more competitive price. Replacement part number: 520555 / EC-520555.
6. High Durability and Low MaintenanceThe electrode shell is made from high-quality PE material, providing excellent flexibility and impact resistance, effectively reducing the risk of accidental damage. The overall design ensures a long lifespan and low maintenance frequency, significantly saving long-term usage costs.
7. Smart and Intuitive Control In addition to a control panel that clearly displays core operational data, it also features a built-in smart WiFi module. You can remotely monitor water flow, temperature, and chlorine output via your smartphone, keeping you in full control of pool conditions.
8. Installation and Maintenance Reminder It is recommended to install the product in a cool, well-ventilated area, or to take sunshade measures to avoid direct sunlight.

Product Details:

• Item model number: EC-520555
