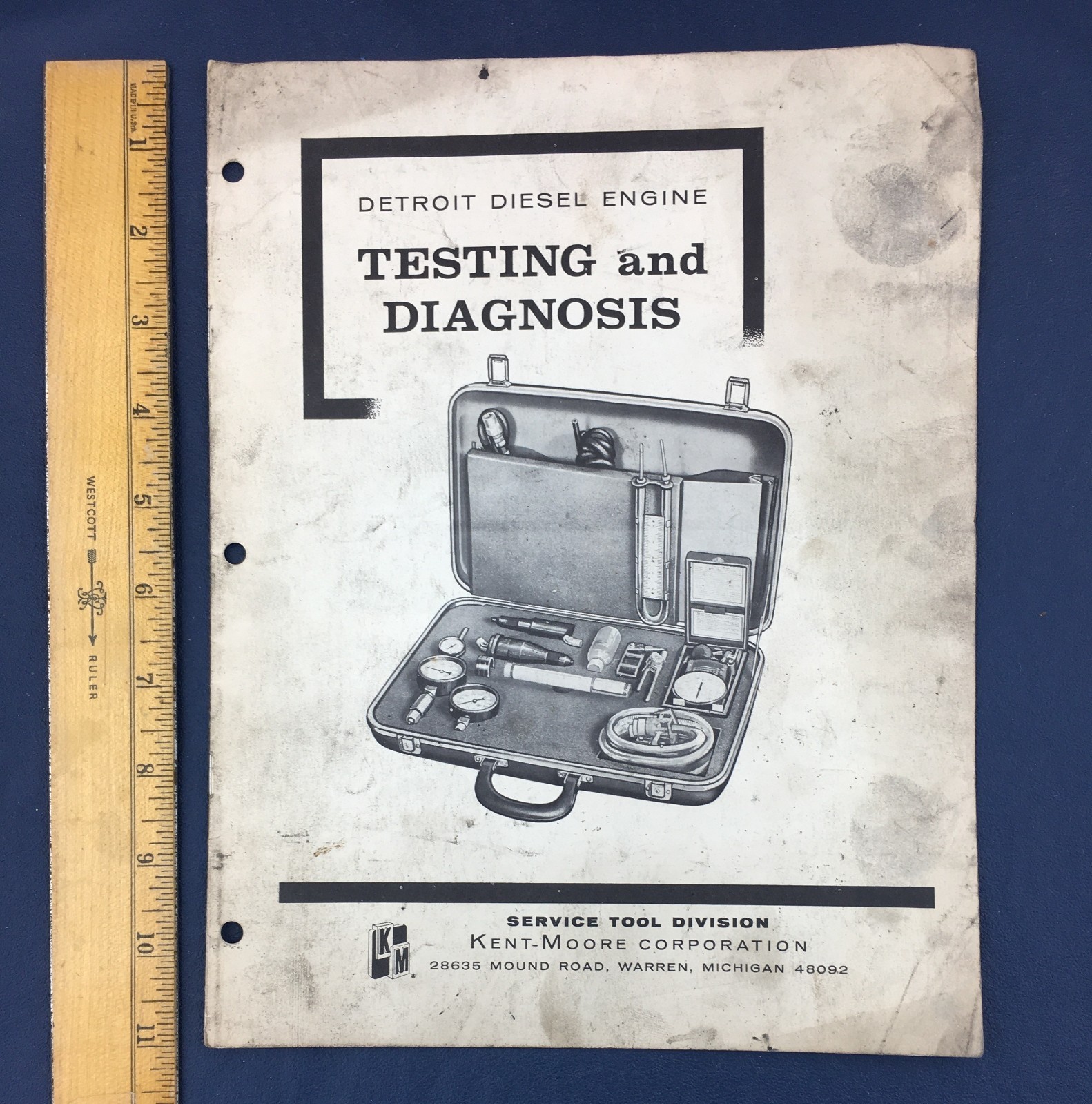

Original Vintage Detroit Diesel Engine Testing and Diagnosis instruction pamphlet from the Kent-Moore Corporation Service Tool Division. This four-page illustrated guide was designed to accompany a Kent-Moore Detroit Diesel diagnostic test kit and explains the operation and application of the gauges, manometers, tachometer equipment, and pressure-testing tools contained in the set.
An interesting piece of diesel service history from the era before engine computers and electronic diagnostic scanners. The pamphlet demonstrates the mechanical testing methods technicians relied upon to diagnose Detroit Diesel engines using specialized analog instruments and factory-approved procedures.
Contents include:
- Exhaust back pressure testing
- Air box pressure testing
- Cooling system pressure testing
- Engine oil pressure testing
- Slack tube manometers
- Pressure gauges and accessories
- Tachometer testing equipment
- Diagnostic tool kit illustrations and specifications
A great addition for collectors of Detroit Diesel memorabilia, vintage service literature, heavy equipment manuals, trucking history, shop equipment, and Kent-Moore tools.
