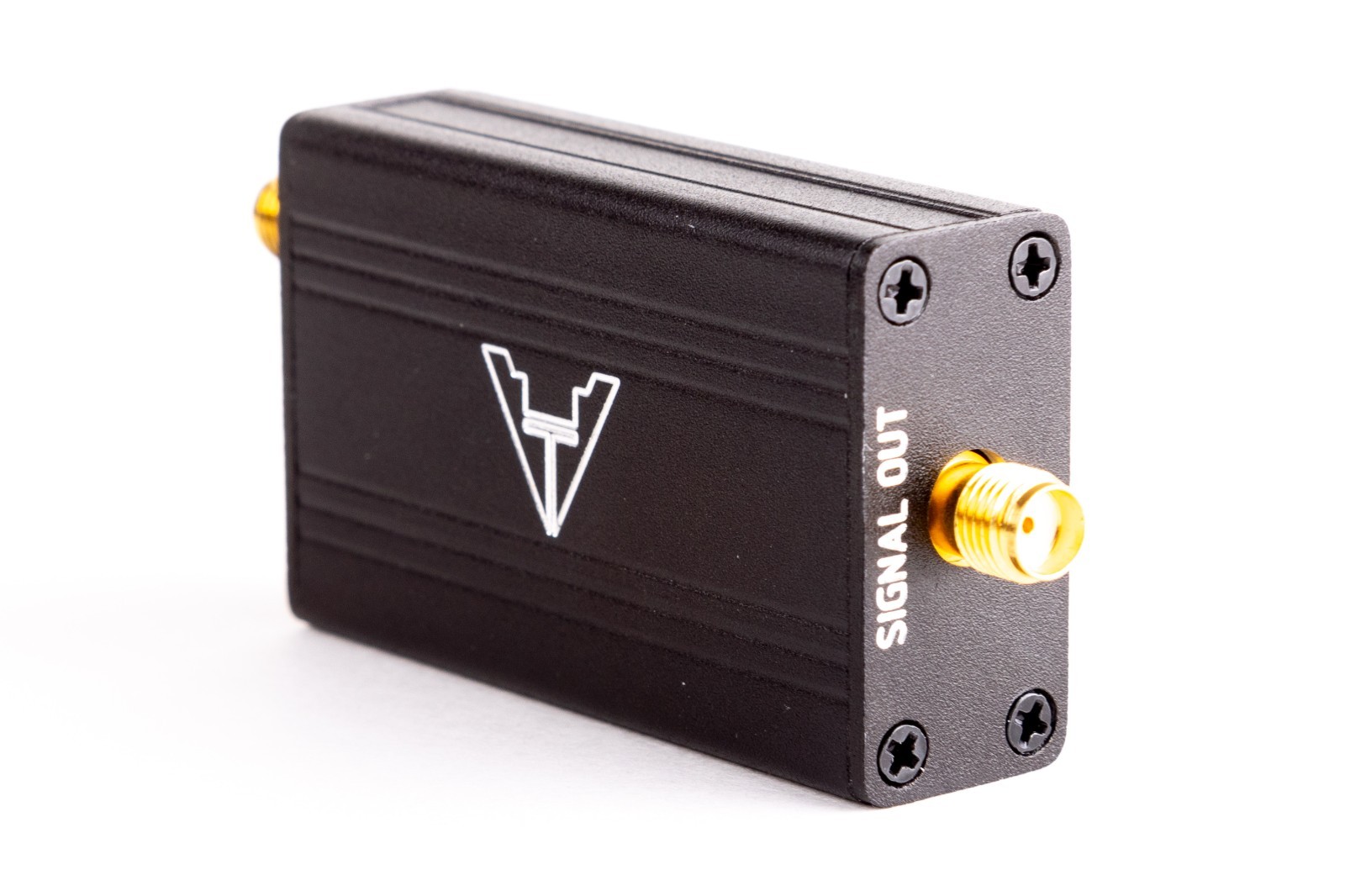

The Voltative PG-3 ultra-fast rise time pulse generator produces a square-wave output featuring extremely fast rising edges: 20 ps (picoseconds) or less. As a result, the bandwidth is also very wide, at least 25 GHz.
These ultra-fast rise time edges are ideal for a variety of applications, including instrument characterization (e.g., oscilloscope bandwidth), time-domain reflectometry (TDR), and ultra-wideband signal sources.
Features include:
- Separate 1 Vpp trigger output
- 1000 mV amplitude (typical)
- Less than 2.5 ps RMS jitter
- 50% duty-cycle 10 MHz square wave output
- SMA connector for signal output (tight-tolerance, high-bandwidth type)
- SMA connector for trigger output
- Powered via USB-C (cable not included)
Each pulse generator is individually characterized/calibrated, and a report is included describing that particular generator\'s actual rise time and other parameters.
The Voltative PG-3 pulse generator is designed and built in Denver, Colorado, USA.
A complete datasheet is available for downloadfrom the Voltative web site.
The pulse generators in this listing are brand new, never used, in their original packaging.
jeff.the.k is proud to be the only authorized seller of Voltative products on .
No international sales. Sales via freight forwarders will be canceled.
