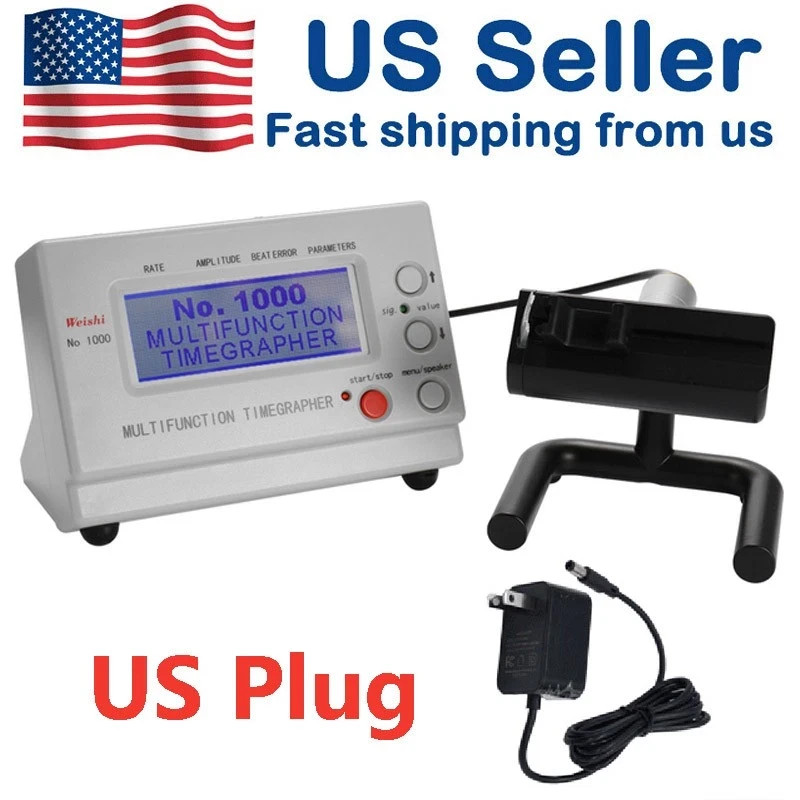

WeiShi No.1000 Multifunctional Professional Timing Timegrapher Mechanical US For Sale

⌚ Professional mechanical watch timegrapher for watchmakers, repair technicians, collectors, and watch adjustment.

📊 Measures rate deviation, amplitude, beat error, and displays beat noise diagram on the LCD screen.

⚙ Supports automatic beat selection for common movements and manual selection for rare beat rates.

🎚 Adjustable lift angle from 30° to 70°, factory default set to 52°.

🔇 Six testing positions with speaker simulation sound and mute function.

Product Description
This mechanical watch timing machine is a precise testing instrument designed for mechanical watch inspection, repair, and adjustment. It can measure rate deviation, amplitude, beat error, and display the frequency diagram of the watch on the LCD screen.

During testing, the instrument automatically adjusts the optimal signal level according to different watches and calculates the rate, amplitude, and beat error in real time. Common beat rates can be detected automatically, while special or rare beat rates can be selected manually.

With selectable measuring periods, adjustable lift angle, and 1-6 testing positions, this timegrapher is a practical tool for watch manufacturers, watch technicians, repair shops, and mechanical watch enthusiasts.

Specifications
Measuring Functions: Rate Deviation, Amplitude, Beat Error, Beat Noise Diagram
Rate Deviation Range: ±999 sec/day
Rate Precision: 1.0 sec/day
Amplitude Range: 100°-360°
Amplitude Resolution: 1°
Beat Error Range: 0-9.9ms
Beat Error Resolution: 0.1ms
Lift Angle Range: 30°-70°
Factory Lift Angle: 52°
Supply Voltage: AC 100V-240V ±10%, Single Phase
Measure Positions: 1-6 Positions
Working Environment: 0°C-50°C
Relative Humidity: 0-80% RH
Shell Color: Light Grey Plastic

Measuring Periods
2s, 4s, 8s, 10s, 12s, 20s, 30s, 60s

Automatic Beat Selection
12000, 14400, 18000, 19800, 21600, 25200, 28800, 36000, 43200

Manual Beat Selection
3600, 6000, 7200, 7380, 7440, 7800, 9000, 9100, 10800, 11880, 12000, 12342, 12480, 12600, 13320, 13440, 13500, 14000, 14040, 14160, 14200, 14280, 14400, 14520, 14580, 14760, 14850, 15000, 15360, 15600, 16200, 16320, 16800, 17196, 17258, 17280, 17786, 17897, 18000, 18049, 18514, 19332, 19440, 19800, 20160, 20222, 20944, 21000, 21031, 21306, 21600, 25200, 28800, 32400, 36000, 43200

Package Includes
📦 1 x Watch Timing Machine Timegrapher
📦 1 x Charger
📦 1 x Manual

Important Notes
⚠ If the tested beat rate is not supported by automatic selection, please use manual mode to select the correct beat rate.

⚠ The lift angle affects amplitude calculation. Please set the lift angle according to the watch movement.

⚠ The actual shell color may be slightly different, but it does not affect use.
