Premium Quality Replacement Part

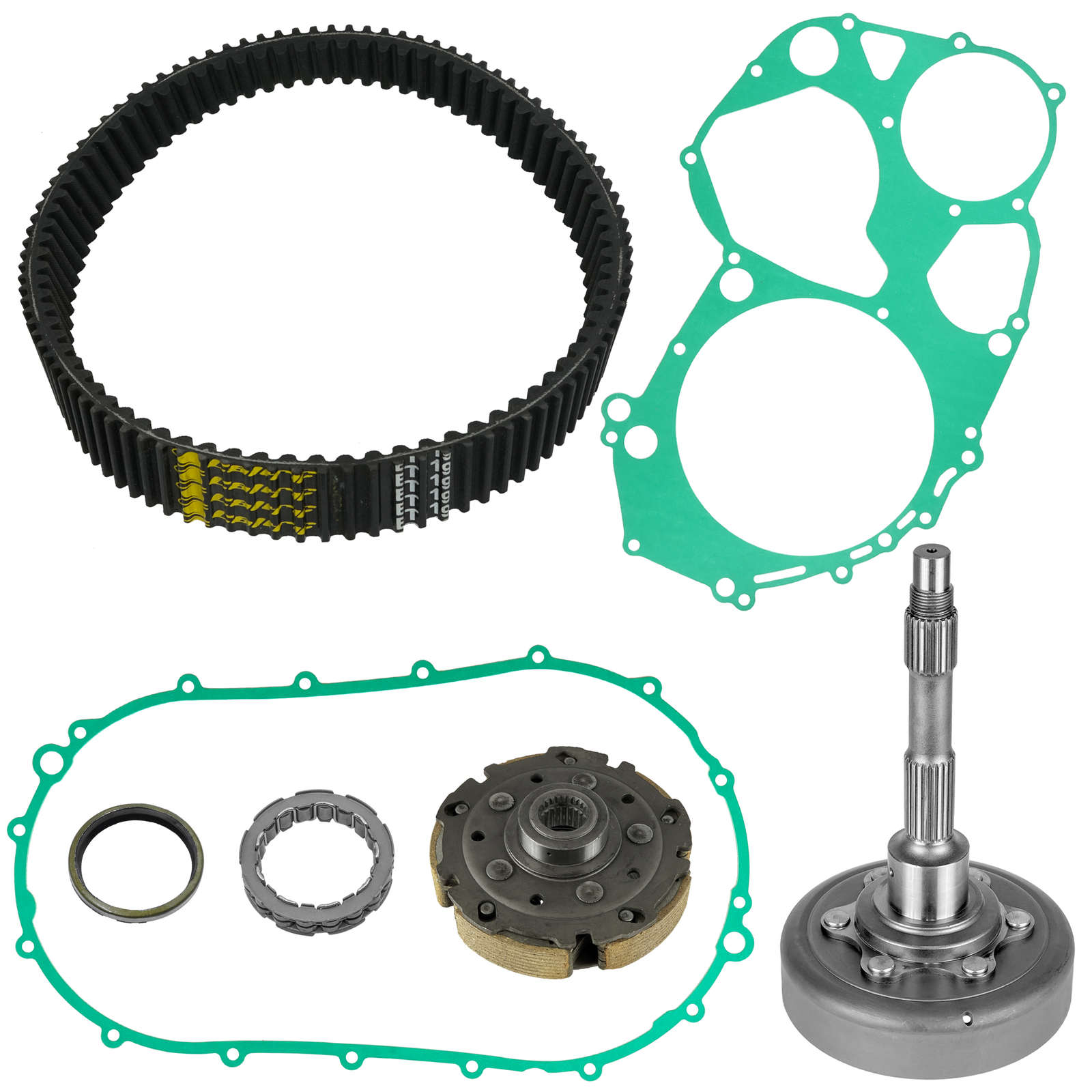

Wet Clutch Housing Kit With Belt
For Arctic Cat Models :550 H1 EFI 4x4 2009-2011
TRV 550 2012 2013
TRV 550 LTD 2013-2015
TRV 550s H1 EFI 2010-2011
550 TRV LE 2009
550 TRV 2009 2010
Prowler 550 4x4 Flatbed 2009
Prowler 550 XT 4x4 2010-2014
550s H1 EFI 2010-2011
550 STD GT 2012-2013
550 LTD 2012-2014
650 TBX 2009
650 4x4 Automatic 2010
650 H1 2011
650 H1 Mud pro 2011
650 STD 2012
700 STD LTD 2012-2014
700 GT 2012
700 H1 EFI 4x4 Automatic 2009-2011
700 H1 EFI 4x4 TBX 2010
700 H1 EFI Mud Pro 2011
700 Mud Pro STD LTD 2012-2015
700 TRV Cruiser 2009-2010
700 XT 2013-2014
700s H1 EFI 2010-2011
TRV 700s H1 EFI 2010-2011
700S TRV 2011
Prowler 700 XT 4x4 2009
Prowler 700 XTX 4x4 2009-2014
Prowler 700 HDX 2011-2014
TBX 700 2013
TRV 700 2011
TRV 700 XT LTD 2013-2015
Order Includes :
1xWet Clutch Centrifugal Carrier :0823-098, 0823-311, 0823-310, 0823-484Inner Diameter : 25mm
Outer Diameter : 138mm
Width : 51mm1x Clutch Hub One Way Bearing :3446-003, 0823-198, 0823-018Inner Diameter : 48mm
Outer Diameter : 62.6mm
Width : 12mm1x Wet Clutch Drum Housing Shaft :0823-556, 0821-002, 0823-096, 0823-261, 0823-365Inner Diameter : 62mm
Outer Diameter : 140mm
1x Drive Belt :0823-013, 3402-757, 3402-484
933mm x 35mm x 15mm
1x Gasket :0830-116, 0830-011, 3402-441
1x Gasket :0830-174, 0830-012
1xDrum Shaft Seal:0830-189Inner Diameter : 38.7mm - 1.52 inOuter Diameter : 46mm - 1.81 inWidth : 5.5mm - 0.21 in
