WHITFIELD, LENNOX, IRON STRIKE AUGER FEED MOTOR

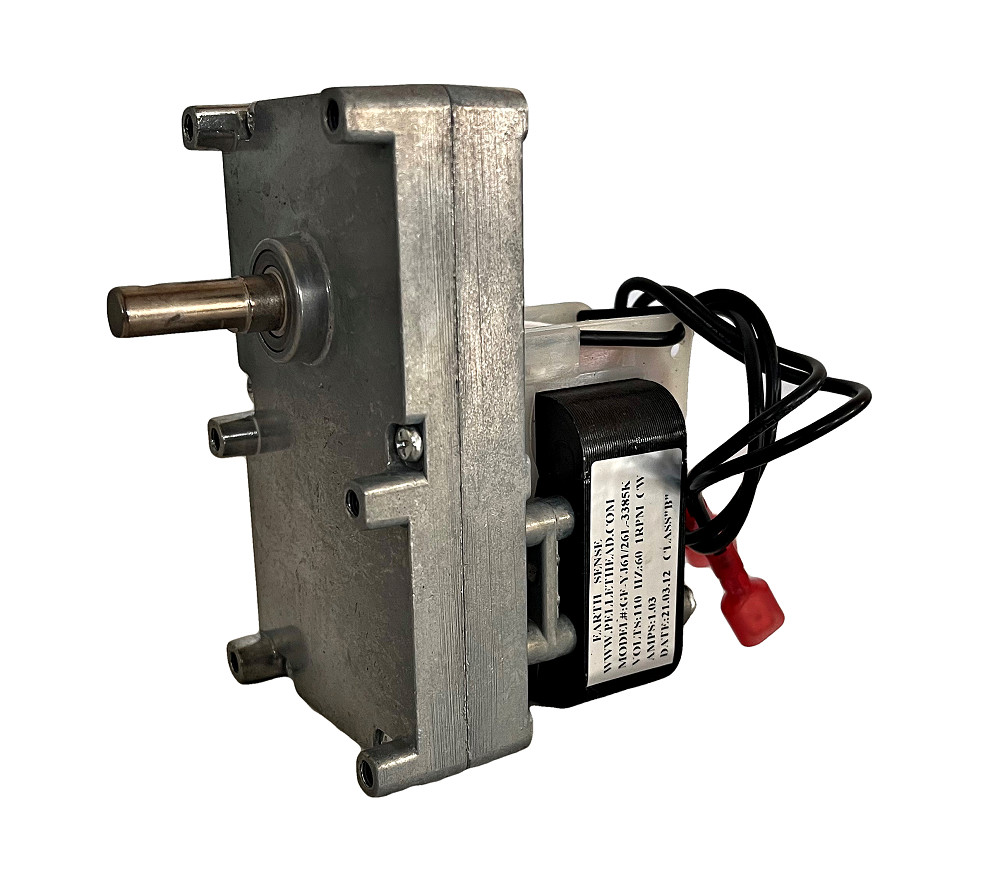

Our Pellethead PH-CW1H is a top quality replacement for Country, Iron Strike, Lennox, and Whitfield pellet stove models. This auger feed motor replaces part numbers 12026300, 12046300, and H5886. This is a 120V, 1 RPM clockwise direction (when facing motor shaft) sealed bearing gearbox motor. Flat spot on the motor shaft to tighten the set bolt and wire leads for easy installation. This motor will also have a hole in the shaft for cotter/set pin installations.
Top Quality Sealed Bearing Aftermarket Replacement
1 RPM Auger Feed Motor Assembly; Clockwise Rotation Facing Shaft
Guaranteed Newest Stock Inventory
1 Year Manufacturer Warranty
Electrical:120V, 60 HZ, 1.03 Amps. 1 RPM, CLOCKWISE Rotation When Facing Shaft. Wire leads measure 20” in length. We include both male and female spade connectors depending on your stoves configuration.
Size:3/8” Diameter x 1” Length Shaft – Flat Edge of Shaft for Securing with Set Collar.This motor will also have a hole in the shaft for cotter/set pin installations.Gearbox measures 2-¾” Wide x 4-5/8” High x 1” Width (Width to screw mount hole 1-5/16”) Total width including magnet, armature and gearbox measures 2-1/8”.
Product Note:This motor runs cooler than the original and does not have or require the rear plastic cooling fan. This motor has wire leads for electrical connection instead of leads directly on the motor. Connection wires will plug in directly into wire leads; doesn’t matter which wire connects to which lead. We guarantee 100% correct fit and function.
Country Pellet
Iron Strike Pellet
- Cascade
- Montage 32FS
- Winslow PI40
- Winslow PS40
Lennox Pellet
- Cascade-2
- Montage 32FS
- Optima 2 FS (A02)
- Optima 3 FS (A03)
- Optima 3 Insert (A03)
- Profile 20 FS (P9)
- Profile 30 FS (P10)
- Profile 30 Insert (P10)
- Traditions - (T300P, T301P, T305P, T308P)
- Winslow PI40
- Winslow PS40
Whitfield
- Advantage I (WP2)
- Advantage II (WP2)
- Advantage II-T (WP2)
- Advantage II-T Classic (WP2)
- Advantage II-T Insert (WP2)
- Advantage III (WP2)
- Advantage III Insert (WP2)
- Advantage Plus (WP7)
- Advantage Plus Insert (WP7)
- Cascade (WP5)
- Explorer (WF1)
- Frontiersman (WF2)
- Legend (WP1)
- Optima 2 (A02)
- Optima 3 (A03)
- Prodigy I (WP3)
- Prodigy II (WP3)
- Profile 20 (P9)
- Profile 30 (P10)
- Profile 30 Insert (P10)
- Quest (WP4)
- Quest Insert (WP4)
- Quest Plus (WP4)
- Quest Plus Insert (WP4)
- Renaissance (WW1)
- Traditions (T300P, T301P, T305P, T308P)
- Waterford Erin
