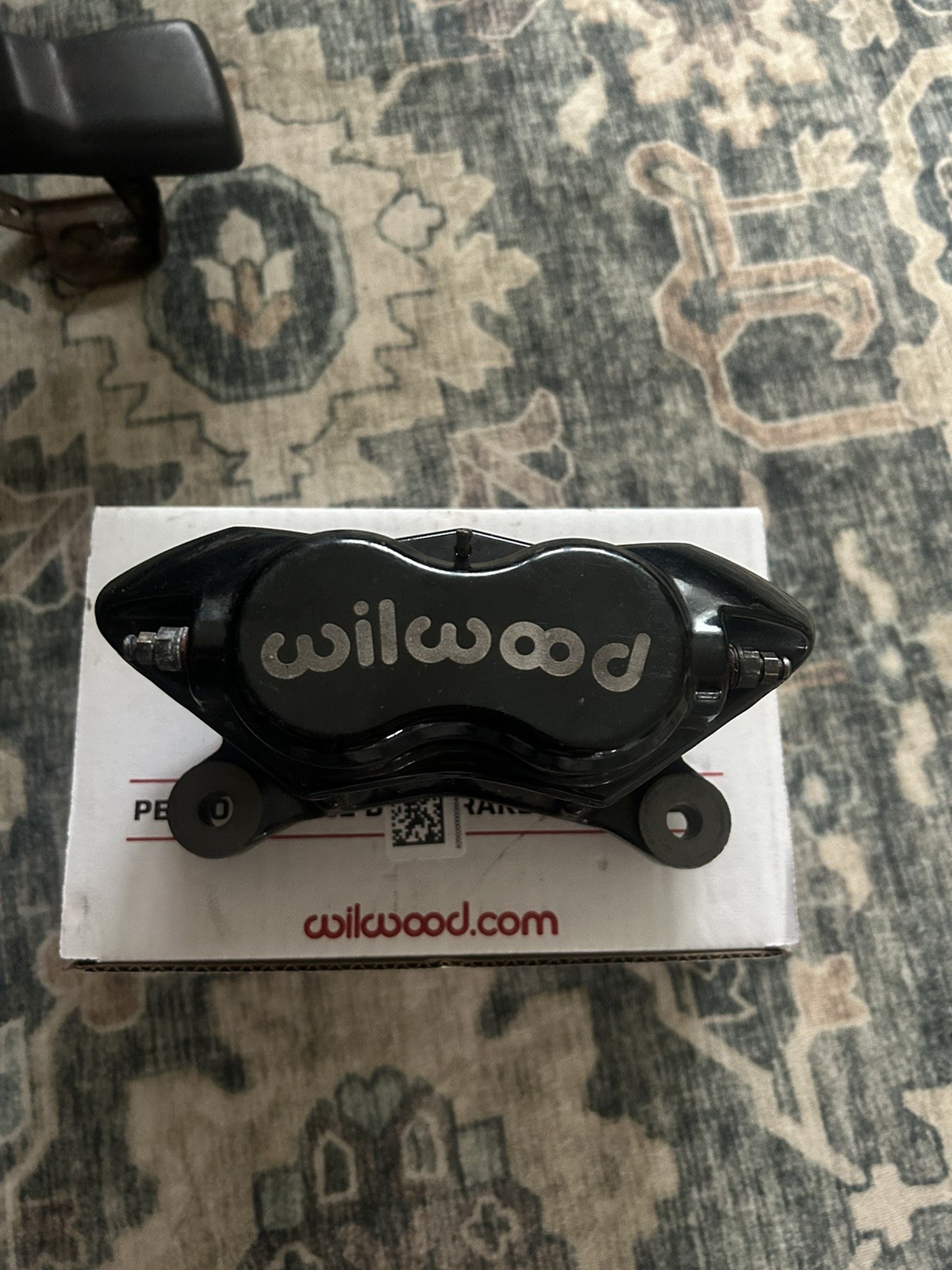

2 brake calipers
Pistons:
Piston Count: 4
Piston Area (in²): 4.80
Piston Type: Stainless
Dust Boot: No
Rotor Dimensions:
Rotor Width (in): 0.81
Rotor Diameter(in): 13.06
Pad Dimensions:
Pad Area (in²): 6.36
Pad Volume (in³): 2.1
Duty Rating & Material:
Material: Forged Aluminium
Weight(Lbs): 3.6
Colors & Finish:
Color: Anodize
Finish: Type III Anodize
Mounting:
Mount Center(in): 5.25
Mount Side: Universal
Mount Type: Lug
Rotor Compatibility:
Rotor Width (in): 0.81
Maximum Rotor Width (in): 0.83
Minimum Rotor Width (in): 0.75
Maximum Rotor Diameter(in): 13.06
Minimum Rotor Diameter(in): 10.00
Brake Pad Specifications:
Brake Pad Type 1: 7112
Brake Pad Type 2: N-A
Brake Pad Type 3: N-A
Total Pad Area (in²): 6.36
Total Pad Volume (in³): 2.1
Piston Specifications:
Piston 1 Bore (in): 1.75
Piston 2 Bore (in): 1.75
Total Piston Area (in²): 4.80
Mounting Specifications:
Mount Type: Lug
Mount Side: Universal
Mount Center(in): 5.25
Mount Hole Size(in): 0.39
Mount Height(in): 2.03
Inlet Thread Size: 1/8-27 NPT
