Wilwood 140-12097-R D154 Front Caliper Kit For Sale

• FAST & now and get same day shipping!
• Hurry up! Tomorrow the price will be Summary

• Spindle Type: Factory Disc Spindle
• Mount Type: Floating
• Caliper Type: 1 - Red Powder Coat

  Calipers

• Left Hand - Part No: 120-11870-RD
• Right Hand - Part No: 120-11870-RD
• Type: D154
• Finish Color: Red Powder Coat
• Piston Count: 1
• Piston 1 Bore (in): 2.50
• Piston Area (In²): 4.90
• Piston Type: Stainless
• Mount Type: Floating
• Brake Pad Plate: D154
• Brake Pad Area (In²): 8.7
• Brake Pad Volume (In³): 2.9
• Pad Compound: BP-10

• We do our best to ship most items same or next day.
• For all products, free fast delivery of the UPS is already included in the price.
• Unfortunately UPS doesn’t accept PO box address. Please specify physical address which will guarantee faster delivery.

• All orders must be paid via PayPal.
• You may use your paypal dollars, or use your MC/Visa, Amex, Discover thru your PayPal account.

• We offer 30 Day return policy.
• Buyer pays return shipping.
• Returns will only be accepted with a valid RMA number.
• All returns must be in original box unopened.
• A 20% restocking fee may apply.
• All products returned are assumed to be in new and saleable condition unless the customer indicates otherwise at the time of submission. Re-boxing fees will be assessed on items received with damaged packaging. This fee may include shipping or other charges levied by the manufacturer. Any product returned in damaged, used or otherwise unsaleable condition may be returned to the customer or credit given at lower value, at the discretion of Autoshopping24.

• Unfortunately mistakes happen and very seldom we ship faulty items. If you would like to get a replacement for an item purchased from us, we can do it for you! Please ship the original item(s) to our warehouse first and provide us with tracking number(s). Once we see that items are on their way we will send a replacement.

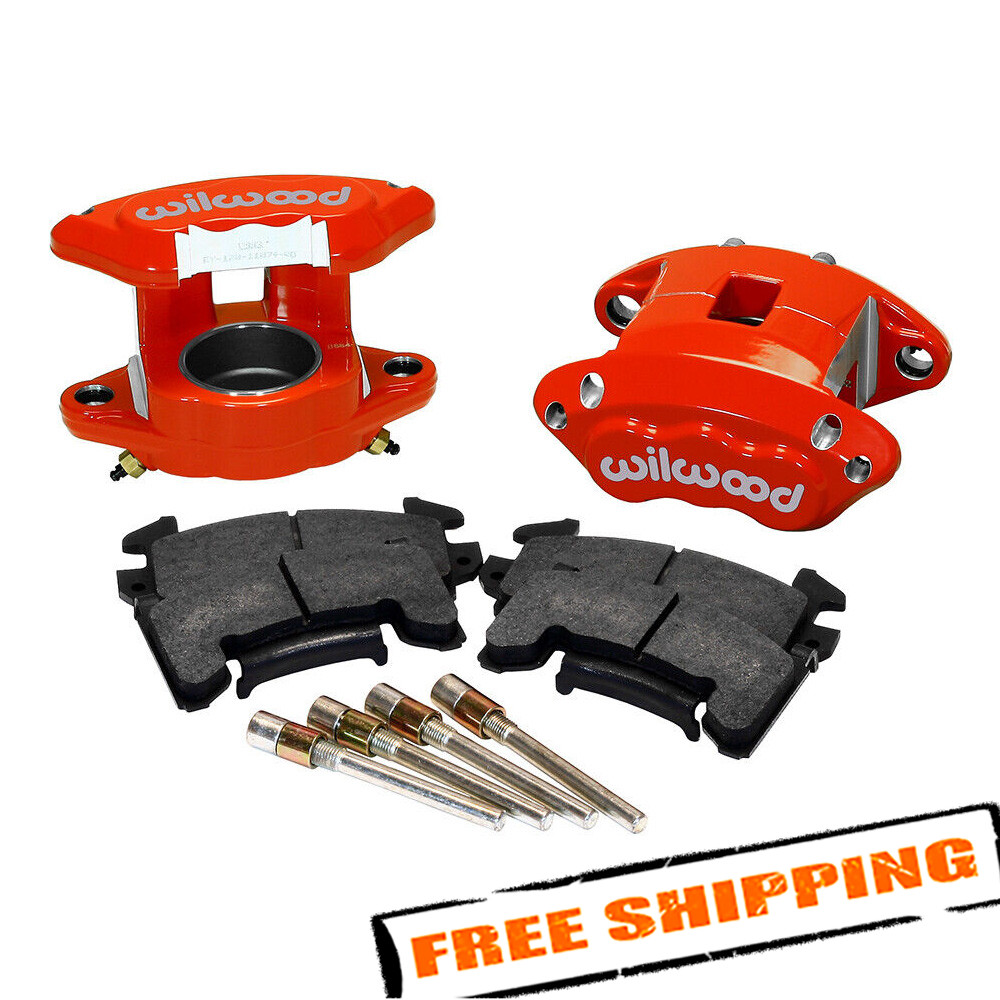

D154 Front Caliper Kit

Wilwood's D154 Front Caliper Kit is a direct bolt-on 1 or 2 piston, lightweight, high-strength, extreme duty alternative to the OE cast iron "Metric" calipers that were used on a wide range of factory disc brake equipped mid size GM cars and small trucks beginning in 1978. Use of this caliper can still be found on some GM models as late as the year 2002. Forged billet aluminum bodies, stainless steel pistons, and competition style high-temperature seals put an end to the rust, bore pitting, and seal failures that plague the OE caliper design. D154 calipers provide low-maintenance performance and a huge weight savings with high temperature reliability for the street and track. D154 calipers mount in the stock location over stock rotors; use the original style OE D154 brake pads and an OE M10-1.5 banjo bolt brake line mounting. D154 Calipers can be used with most wheels that clear the OE calipers. The front calipers with 2.50” piston provide 4.90 square inches of piston area per caliper, in order to maintain the original front to rear brake bias and use of the OE master cylinder. The D154 is also available in a two piston version with 1.62 pistons, offering 4.12 square inches of area. Kits contain Wilwood’s hardened slide pins and BP-10 high friction pads. Matching rear calipers are also available for custom installations. Custom stainless steel brake lines are also available.

BRAKE KIT:D154 Front Caliper Kit

Spindle Type:Factory Disc 1979-1981 All

Century 1978 Disc Brake Spindle

Grand National 1982-1987 All

Regal 1979-1987 All

Regal 1978 Disc Brake Spindle

Regal Grand National 1982-1987 All

Riviera 1979-1985 Disc Brake Rear

Riviera 1979-1985 Drum Brake Rear

Cadillac Eldorado 1979-1985 All

Cadillac Seville 1980-1985 1982-1987 Disc Brake Rear

Camaro 1982-1987 Drum Brake Rear

Camaro 1988-1992 OE Single Piston Caliper Spindles, Disc Brake Rear

Camaro 1988-1992 OE Single Piston Caliper Spindles, Drum Brake Rear

El Camino 1978 All

El Camino 1979-1987 All

Malibu 1979-1987 All

Malibu 1978 Disc Brake Spindle

Monte Carlo 1979-1988 All

Monte Carlo 1978 Disc Brake Spindle

S10 Blazer 1983-1997 4 x 2

S10 Blazer 1983-1996 4 x 4

S10 Blazer 1997 4 x 4, w/o AWD, w/ Drum Rear

S10 Pickup 1983-1996 4 x 2

S10 Pickup 2003 4 x 2 w/ Disc Brake Rear

S10 Pickup 1997-2003 4 x 2 w/ Drum Rear

S10 Pickup 1983-1996 4 x 4

S10 Pickup 1997 4 x 4, w/o AWD, w/ Drum Rear

S10 Pickup 1982 1978 All

Caballero 1979-1987 All

Jimmy 1992-1997 4 x 2

Jimmy 1992-1996 4 x 4

Jimmy 1997 4 x 4, w/o AWD

S15 1983-1990 4 x 2

S15 1983-1990 4 x 4

S15 1982 All

S15 Jimmy 1983-1991 4 x 2

S15 Jimmy 1983-1991 4 x 4

Sonoma 1991-1996 4 x 2

Sonoma 2003 4 x 2 w/ Disc Brake Rear

Sonoma 2003 4 x 2 w/ Drum Rear

Sonoma 1997-2002 4 x 2 w/ Drum Rear Brake

Sonoma 1991-1996 4 x 4

Sonoma 1997 4 x 4, w/o AWD

Syclone 1991 All

Typhoon 1992-1993 All

Isuzu Hombre 1996-2000 4 x 1991-1996 All

Cutlass 1979-1981 Base

Cutlass 1978 Disc Brake Spindle

Cutlass Calais 1979-1984 Base

Cutlass Calais 1983-1984 Hurst

Cutlass Cruiser 1980-1983 All

Cutlass Salon 1979-1986 442

Cutlass Salon 1979-1987 Base

Cutlass Salon 1979-1980 Brougham

Cutlass Salon 1979 Hurst

Cutlass Supreme 1987 442

Cutlass Supreme 1979-1987 Base

Cutlass Supreme 1977 Brougham

Cutlass Supreme 1979-1981 Brougham

Cutlass Supreme 1977 Colonnade

Cutlass Supreme 1978 Disc Brake Spindle

Cutlass Supreme 1981 LS

Cutlass Supreme 1988 RWD only

Toronado 1979-1985 Disc Brake Rear

Toronado 1979-1985 Drum Brake Rear

Vista Cruiser 1978 Disc Brake 1982-1987 All

Firebird 1982-1987 Disc Brake Rear

Firebird 1982-1987 Drum Brake Rear

Firebird 1988-1992 OE Single Piston Caliper Spindles, Disc Brake Rear

Firebird 1988-1992 OE Single Piston Caliper Spindles, Drum Brake Rear

Grand Am 1979-1980 All

Grand Am 1978 Disc Brake Spindle

Grand Prix 1979-1987 All

Grand Prix 1978 Disc Brake Spindle

LeMans 1979-1980 All

LeMans 1981-1983 All (Canada)

LeMans 1978 Disc Brake Spindle

Brake Kits are designed to fit OE Factory Spindles.

If you have fitment questions or concerns, please contact us prior to ordering.
