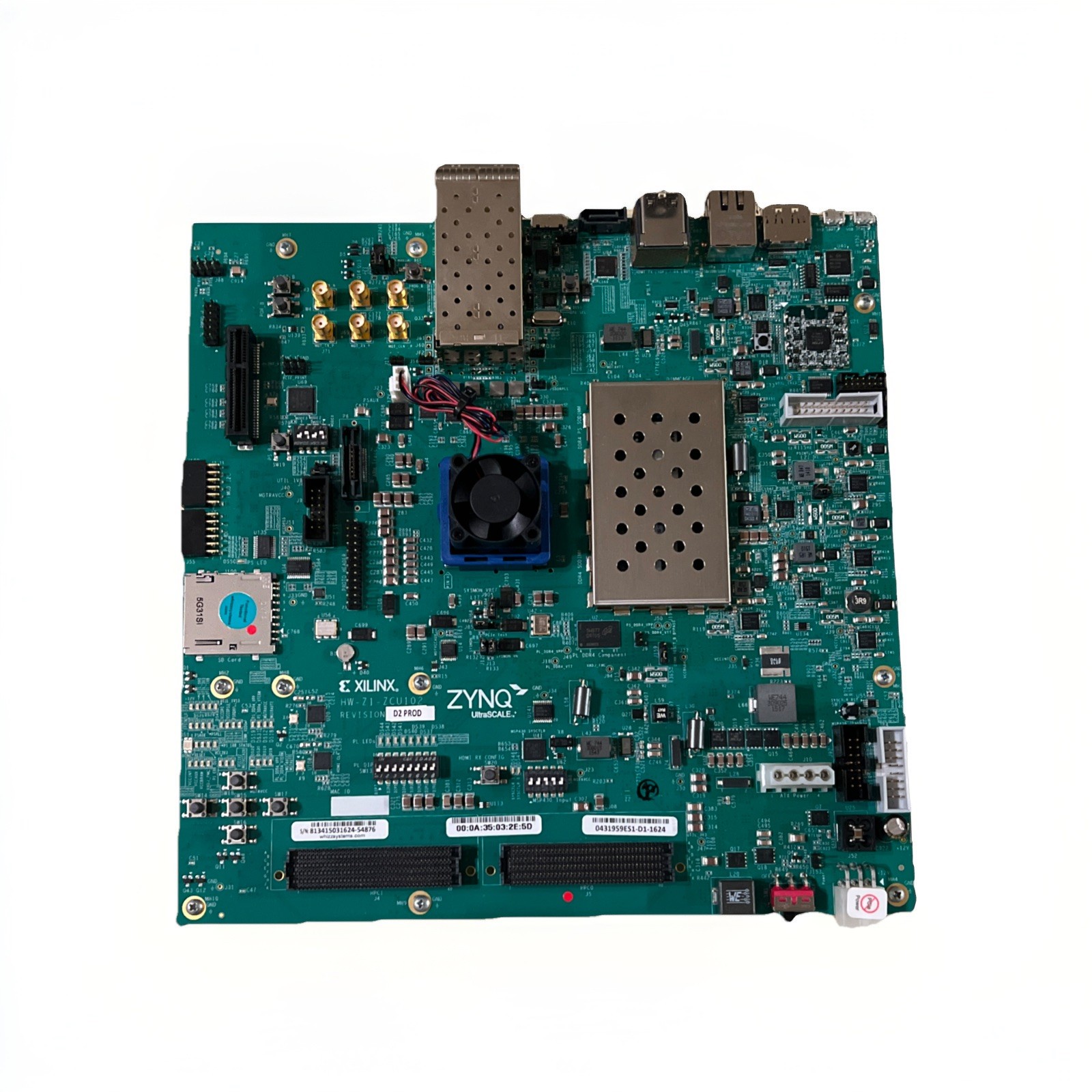

The ZCU102 Evaluation Kit enables designers to jumpstart designs for automotive, industrial, video, and communications applications. This kit features an AMD Zynq™ UltraScale+™ MPSoC with a quad-core Arm® Cortex®-A53, dual-core Cortex-R5F real-time processors, and a Mali™-400 MP2 graphics processing unit based on 16nm FinFET+ programmable logic fabric by AMD. The ZCU102 supports all major peripherals and interfaces, enabling development for a wide range of applications.
Key Features & Benefits:
• Optimized for quick application prototyping with Zynq UltraScale+ MPSoC
• DDR4 SODIMM – 4GB 64-bit w/ ECC attached to processing system (PS)
• DDR4 Component – 512MB 16-bit attached to programmable logic (PL)
• PCIe® Root Port Gen2 x4, USB3, DisplayPort™, and SATA
• 4x SFP+ interfaces for Ethernet
• 2x FPGA Mezzanine Card (FMC) interfaces for I/O expansion, including 16 16.3Gb/s GTH transceivers and 64 user-defined differential I/O signals
Communication & Networking:
RGMII communications at 10, 100, or 1000 Mb/s. Serial GMII interface-supports a 1 Gb/s SGMII interface
4x SFP+ cage
SMA GTH support (4x SMA Tx/Rx connectors)
UART To USB bridge
RJ-45 Ethernet connector
SATA (1 x GTR)**
PCIe® Gen2x4 Root Port**
Display:
HDMI™ video input and output (3 GTH)
External Retimer device driving an HDMI output connector
9x GPIO user LEDs (8x PL, 1x PS)
VESA DisplayPort™ 1.2 source-only controller supports up to two lanes of main link data at rates of 1.62 Gb/s, 2.70 Gb/s, or 5.40 Gb/s.
Expansion Connectors:
2x FMC-HPC connectors (16 GTH Transceivers, 64 differential user defined signals)
2x Pmod headers
IIC
Configuration:
Onboard JTAG configuration circuitry to enable configuration over USB
Dual Quad-SPI flash memory
Boot from SD card
Memory:
PS 4GB DDR4 64-bit SODIMM w/ ECC
PL 512MB DDR4 component memory ([256 Mb x 16] devices) at 1200MHz / 2400Mb/s DDR
8KB IIC EEPROM
Dual 64MB Quad SPI flash
SD card slot
Control & I/O:
6x Directional Push Buttons (5x PL, 1x PS)
DIP switches (8x PL)
PMBUS & System Controller MSP430 for power, clocks, and I2C bus switching
USB2/3 (MIO ULPI and 1 GTR)**
Power:
12V wall adapter or ATX
** Switch enables either PCIe Root Port OR SATA, USB2/3 & DisplayPort
