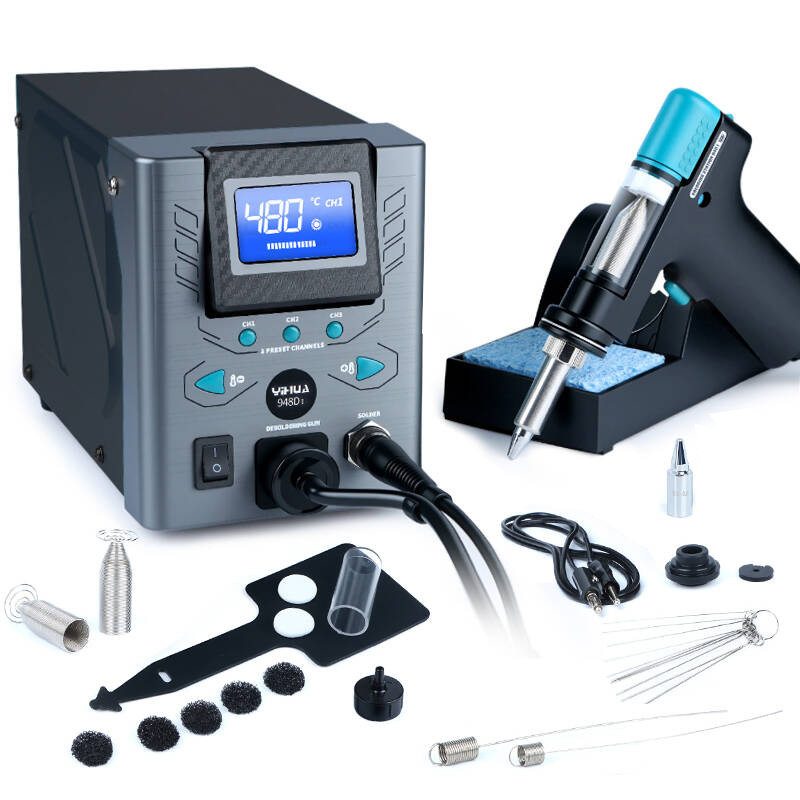

YIHUA 948D-I 110W Desoldering Station Vacuum Desoldering Pump Solder Station Kit For Sale

YIHUA 948 Desoldering Station YIHUA 948D-I 110W Digital Desoldering StationProduct ApplicationSuitable for various through-hole components and complex desoldering jobs, especially for multi-pin components such as transformers, LCD screens, digital displays, IC chips, pin headers, etc. Key Features

• [ESD-Safe] Anti-static desoldering station with isolated transformer-powered heating element, ensuring low-voltage, safe, and reliable operation.
• [Built-in Vacuum] Portable built-in vacuum pump provides strong suction without the need for an external system.
• [Precise PID Temperature Control] Offers accurate, linear temperature adjustments via embedded PID algorithm.
• [Auto Shut-off] When the iron is idle in the holder for 30 minutes, the station powers off automatically to conserve energy and extend lifespan.
• [Sleep Mode] When not in use, the iron enters sleep mode after the preset time. Lightly shake the handle to wake it up and restore working temperature.
• [Digital Temperature Calibration] Allows for precise temperature adjustment without opening the case—ideal after replacing heating cores or tips.
• [℃/℉ Conversion] Easily switch between Celsius and Fahrenheit displays for users in different regions.

Specifications

• Model: 948D-I
• Voltage: 110–127V~, 60Hz
• Power:110W
• Dimensions:L8.66″ x W4.72″ x H6.14″ ±0.2inches
• Operating Temperature: 32℉–104℉
• Temperature Range: 716℉–896℉
• Display Type: LCD
• Tip-to-Ground Resistance: < 2Ω

What's in the Box

• 1 x 948D-I Desoldering Station
• 1 x Desoldering Nozzles (1.2mm)
• 1 x Set of Cleaning Pins
• 1 x Desoldering Gun Holder
• 1 x Cleaning Sponge
• 1 xReplacement Filter Tube
• 2 x Filter Springs
• 2 x Ceramic Filters
• 5 x Carbon Filters
• 1 x Heat-Resistant Pad
• 1 xGround Wire

🚚 Ships from local US warehouse – with US standard plug (110–127V) 🛡️ 12-Month Warranty

Warranty applies to the following cases:

• The device fails to power on
• Any function is unresponsive
• Heating element failure
• Defective transformer or fuse holder
• No unauthorized disassembly or self-repair
• Free spare parts shipping included

How to Claim Warranty

1. Contact the seller via platform message
2. Provide photos/videos to confirm the issue
3. Seller provides solution based on warranty terms
