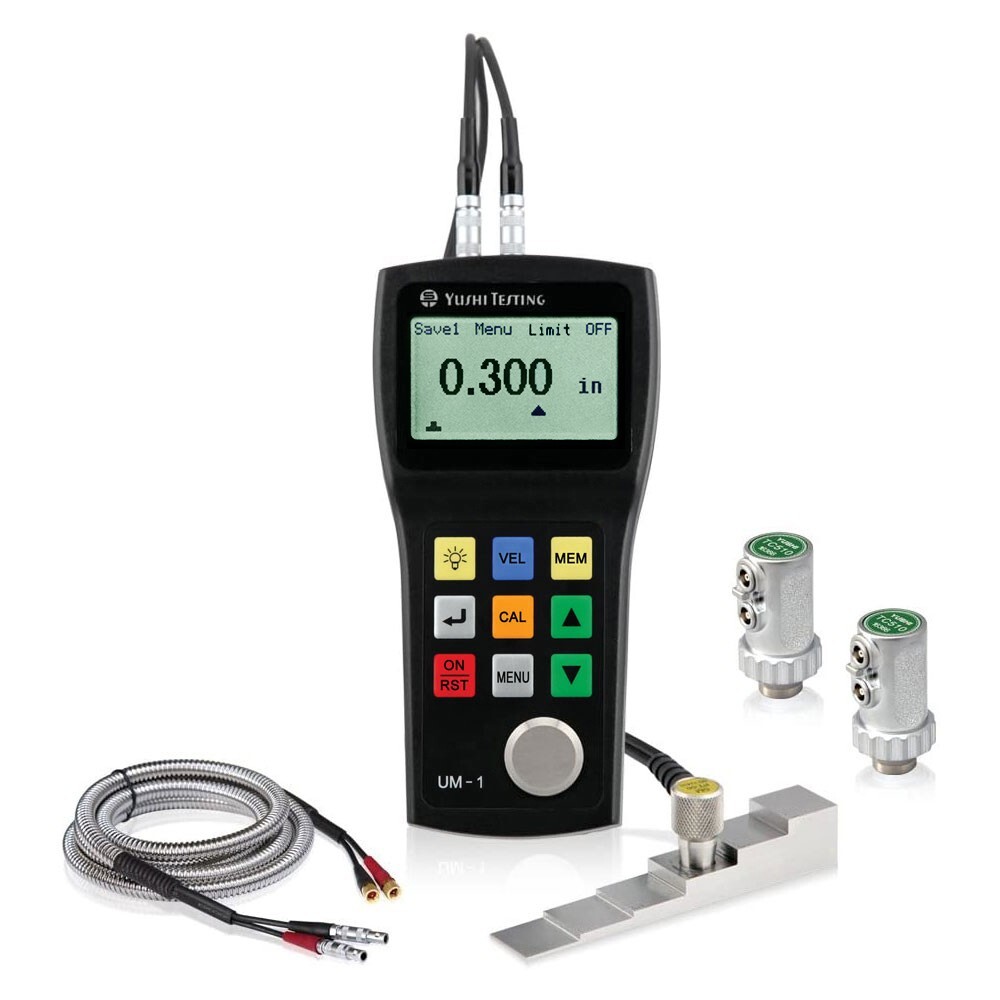

YUSHI UM-1 Portable Ultrasonic Thickness Gauge Pipe Wall Corrosion Tester Meter For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
YUSHI UM-1 Portable Ultrasonic Thickness Gauge Pipe Wall Corrosion Tester Meter:
$467.00
Store CategoriesUltrasonic Transducers - Angle Beam Transducers
- Straight Beam Transducers
- Miniature Screw-In Transducers
- AWS Transducers
- Delay Line Transducers
- Contact Transducers
- Protective Membrane Transducer
- TOFD Transducers
- Water Immersion Transducers
Step Calibration Blocks - 1018 Steel
- 304 Stainless Steel
- Aluminum
- Other Material
Ultrasonic Calibration Blocks Ultrasonic Thickness Thickness Gauges Color A/B Scan Thickness GaugeGeneral Purpose GaugesThru Coating Thickness GaugesPrecision Thickness GaugesPortable Leeb Hardness Testers - Hardness Tester
- Hardness Blocks
Probe CablesCoating Thickness Gauges - Coating Measurement Cases
- Material Science &Biotechnolog
- Automotive & Shipbuilding
- Defense & Specialty Applicatio
- Oil & Gas
- Power & Energy
- Aerospace & Precision &Infrastructure
UV NDT LampsDensitometersUT Flaw DetectorsUltrasonic Pulser ReceiverX-Ray Film ViewersGauge BlocksYUSHI UM-1 Portable Ultrasonic Thickness Gauge Pipe Wall Corrosion Tester MeterMain Features Accurate measurement: each instrument is measured by 35 test blocks before leaving the factory;
Stable reading without flickering;
Fast value output: the measured value is output as soon as the probe is put on;
High resolution: even a 0.1 inch difference can be distinguished;
LCD screen display, low power consumption: the output current is 13-15 mA, working time is up to 200 hours. Technical Specification of UM-1Display Type128×64 dot-matrix LCD screen with EL backlight Operating PrincipleP-E (pulse-echo) with dual-crystal probes Measuring Range In Standard Mode0.8mm to 300mm, depending on material and probeMeasuring Limits of Tube (Steel)Φ20mm×3.0mm(PT-08 probe) Φ15mm×2.0mm(PT-06 probe) The measuring error is up to ±0.1mmMeasuring ErrorLow limit to 10mm: ±0.1mm 10mm to high limit: ± (1%H+0.1) mm Note: H is the actual thickness of the measured objectMinimum Value CheckingMove the probe along the surface of the testing piece, the gauge is able to find the thinnest point automatically. Warning FunctionIf the measured value exceeds the pre-set limit, the warning tone will be start.Communication PortUSB port or Serial RS 232 port (Optional)Application SoftwareUmView Software for transmission,storage,analysis and documents editing (Optional) Operating TimeUp to 200 hours with alkaline batteries (without backlight) Instrument Shut-off AUTO OFF after 5 minutes of inactivityOperating Temperature-10°C to +50°C , -20°C in special requirementsWarrantyA year Quality CertificateCEPaymentDelivery detailsTerms of salesAbout usContact usPaymentWe support payment methods such as PayPal, credit card, Google Pay/Apple Pay, etc. The specific payment methods are subject to the actual page display.Delivery detailsWe support Fedex, DHL, UPS and EMS.
Import duties and taxes are not included in item price or shipping charges.These charges are buyer\'s responsibility.Terms of salesWe accept returns within 30-60 days.We encourage all customers to communicate with us through messages. If you have any questions or comments whatsoever regarding our products or listing, we are waiting to hear from you.
One year warranty is offered for our instruments(NOT INCLUDING PARTS). If the instruments malfunctioned under proper usage per instructions manual within the warranty period, please contact us to obtain shipping instructions and send it back .
3-7 business days evaluation and investigation take place after receiving your return item. A brand new replacement unit will be sent to you at our shipping costs if it meets our warranty requirements.About usYUSHI INSTRUMENTS，formerly the Shenyang Flaw Detector Factory, originated in 1985. As one of the professional manufactures and suppliers of NDT products in China, we own the independent intellectual property rights and honorably have the national patents for new products. we have a strong R&D team for technical support and extending new products year by year, Now they have been exported to many countries of the world and won good reputation from our domestic and foreign customers. we aim to provide our customers with reliable quality, high performance products, fast delivery, satisfactory service and competitive price. Sincerely looking forward to earlier and long cooperation with you.Contact usIf you have any other questions, please contact our customer service , we will reply within 24 hours.Other InstrumentsCountry of OriginChinaBrandYUSHiGage TypeThickness GageColorBlackModelUM-1MaterialPlastic and MetalMPNG1010001Bundle ListingNoCalifornia Prop 65 WarningNOUnit TypeUnitRepeatability0.1mmDisplay Resolution0.1mm,0.001 inchUnitsInch or MillimeterCalibration MethodZero calibration,Two-point calibrationV-Path CorrectionAutomaticUpdate RateRate 4HzMaterial Velocity Range1000 ~ 9999 m/s (0.0394 to 0.3937in/us)Memory Function500 thickness valuesLanguagesEnglishPower RequirementsTwo 1.5V AA alkaline batteriesSize149mm X 73mm X 32mm(H X W X D)Weight210g including batteries
|
|
