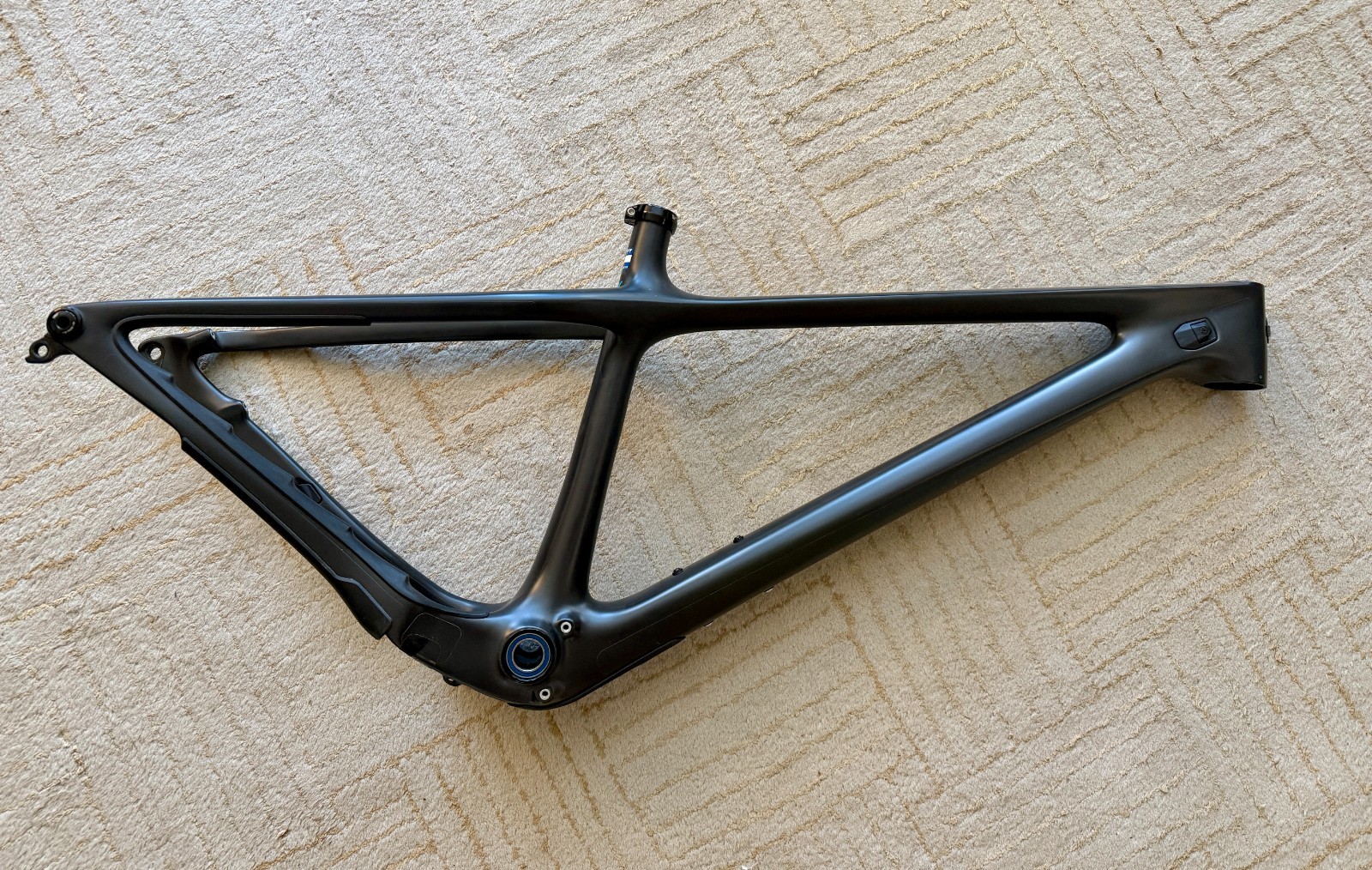

Yeti ARC mountain bike frame size M. Raw carbon. Excellent condition.
There is one very small scratch on the top tube near the head tube (see pic) but other than that the frame is flawless.
Yeti frame protection kit installed since new. Just under 1500 miles on the frame, all XC type riding by a 50 year old 150 lbs rider.
Very light frame at 1200g.
I will include the Wheels Mgr. bottom bracket which is for SRAM GXP cranks, but you could probably swap out the non-drive-side bearing for a 24mm if you want to run Shimano style cranks.
I was able to fit a 29 x 2.8\" tire with pretty of room. I was also able to run a full 210mm dropper post, and a 52mm chainline with a 30t oval chainring. It was close clearance-wise so I put extra frame protection tape in that area.
Easy internal cable routing, with a little door on the downtube to help with routing the dropper housing.
Can run 120mm-150mm fork. I tried all these sizes and the sweet spot for me was 140mm. The bike geo is designed around 130mm.
Frame Specifications
- Material: TURQ Series Carbon Fiber
- Wheel Size: 29 inches
- Bottom Bracket: PF92 (Pressfit BB92)
- Rear Spacing: 148mm x 12mm (Boost)
- Seatpost Diameter: 31.6 mm (Seatpost clamp: 36.4 mm)
- Headset: Integrated 41mm/52mm tapered
- Derailleur Hanger: SRAM UDH (Universal Derailleur Hanger)
- Brake Mount: Post mount 160 mm (160 mm min / 180 mm max rear rotor)
- Chainline / Chainring: 55mm chainline (SRAM DUB Wide); Min 28T / Max 34T (round)
