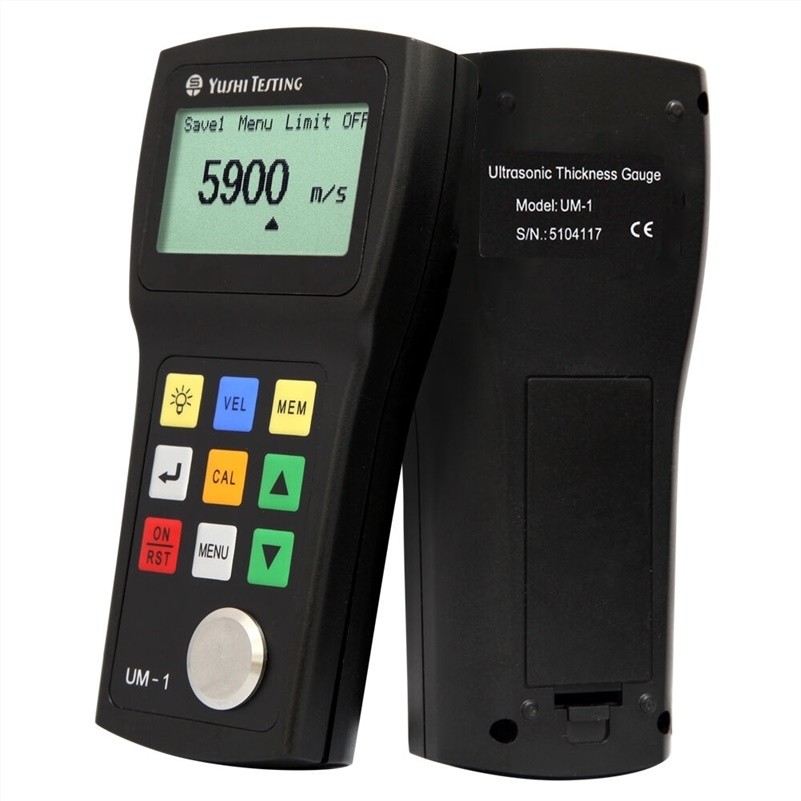

Yushi UM-1 Ultrasonic Thickness Gauge Corrosion Wall Test Meter 0.03"-12" Ce UM-1 Series Ultrasonic Thickness Gauges Specifications
Display Type128*64 dot-matrix LCD screen with EL backlightOperating PrincipleP-E (pulse-echo), E-E (echo-echo) with dual-crystal probes(Only for UM-1D)Measuring RangeStandard mode: 0.8mm to 300mm, depanding on material and probes
Thru coating mode: 3mm to 20mm with PT-08 probe(Only UM-1D)Measuring Limits of Tube(Steel)∮20mm×3.0mm(PT-08 probe)
∮15mm×2.0mm(PT-06 probe)
The measuring error is up to ±0.1mmMeasuring ErrorLow Limit to 10mm: ±0.1mm
10mm to high limit: Resolution0.1mm, 0.001inchUnitsinch or mmCalibration ModeZero Calibration, Two-point CalibrationV-Path CorrectionAutomaticUpdate Rate4HzVelocity Range1000 to 9999 m/s(0.0394 to 0.3937 in/μs)Memory Function500 readings can be stored in 5 groupsMinimum Value CheckingMove the probe along the surface of the testing material, the gauge is able to find the thinnest point automatically.Warning FunctionIf the measured value exceeds the pre-set limit, the warning tone will be start.Velocity StorageTotal 5 different materials velocitiescan be stored.LanguagesEnglish and ChineseCommunication PortUSB or Serial RS232 Port(Optional)Application SoftwareUmView software for transmission, storage, analysis and documents editing(Optional)Power RequirementsTwo 1.5V AA alkaline batteries(Warning with low battery voltage)Operating TimeUp to 200 hours with alkaline batteries(wihtout backlight)Instrument Shut-OffAUTO OFF after 5 minutes of inactivityOperating Temperature-10℃ to +50℃, -20℃ in special requirementsStandard ConfigurationUM-1 Ultrasonic Thickness Gauge,Probe(PT-08), Instrument Case, Operating Manual, Certification, Picking List (without batteries)Optional AccessoriesVarious Probes, Probe Cables, Step Calibration Blocks, Communication Software and Rubber Sheath.(extra payment)
Function Range in Standard Range in Thru Coating Mode×3mm-20mm×3mm-20mmResolution (inch)0.1mm, 0.0010.1mm, 0.0010.1mm, 0.0010.1mm, 0.001Probe Compensating Line1 built-in1 built-in1 built-in1 built-inData Logger√√√√ Sun, 05 Oct 2025 18:32:28 GMT 638953147481378978 2792D8D3519FECB0EB8F0A8CEDDDB293
