About this item
- Never go beyond its capabilities. Try to stay 10 to 15% below what the rate is for
- Please make sure you made tight connections (especially on the load wires)

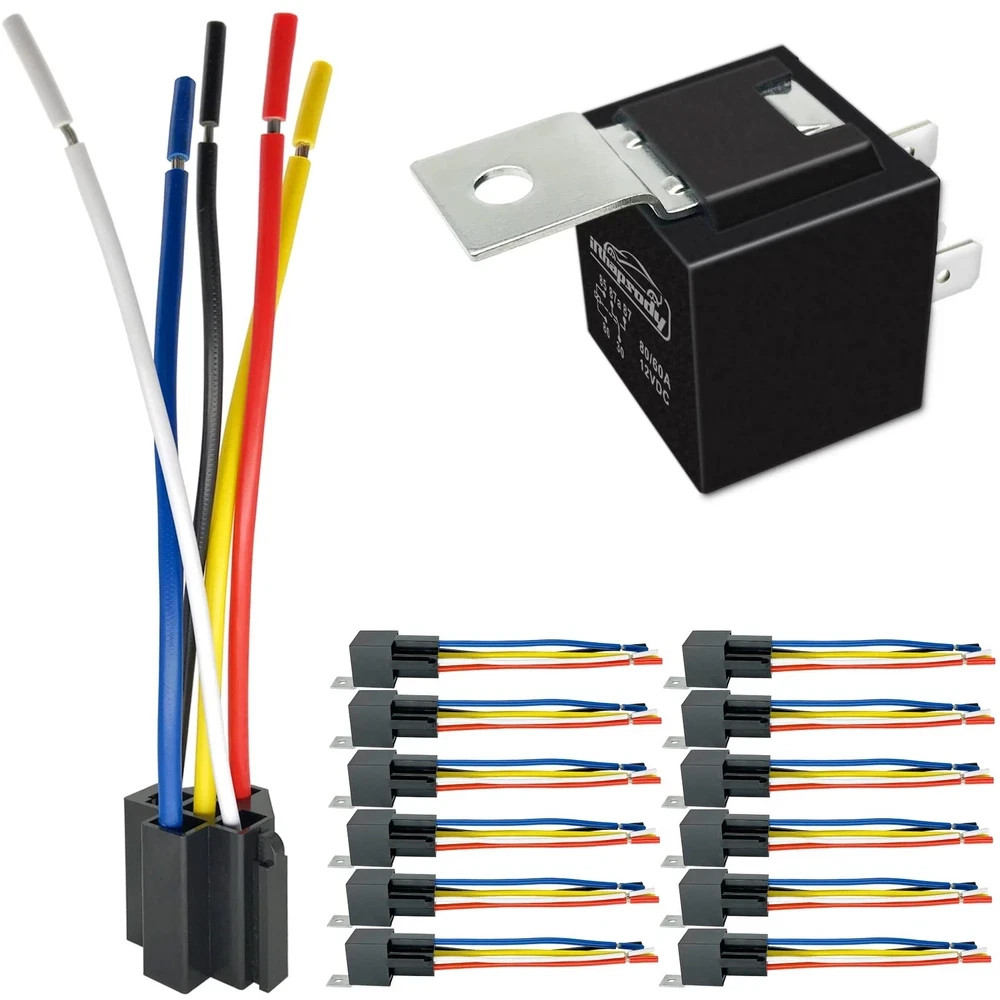

- 5-prong (SPDT) universal standard relay, high switching capability
- 30-VDC (red), 85-Ground (black), 86-Trigger (white), 87-Output /O (blue), 87a-Output N/C (yellow)
- 12awg & 16awg tinned copper wiring harness: Electrical conductivity, corrosion resistance, and oxidation resistance are stronger
Product Description
Nominal Coil Voltage: 12 V DC
Coil Power: 1.8 W
Coil Resistance: 80Ω¸
Must Operate Voltage: 6~8 V DC
Must Release Voltage: 0.6~3.6 V DC
Maximum Applied Voltage: 15.6 V DC
Contact Ratings: NO 80A 14V DC
Contact Resistance: 100mMAX (at6VDC 1A)
Max Switching Current: 80A
Max Switching Power: 560 W
Life Expectancy Electrical: 100,000 Operations (at30 Operations/minute)
Life Expectancy Machanical: 10,000,000 Operations
Temperature Range: -30 ~ +80 degrees Celsius
Vibration Resistance: 10~55Hz, 1.5mm
Shock Resistance: Operations Extremes: 10g. Damage Limits: 100g
Hunidity: 40% ~ 85%
Insulation Resistance: 100mΩ¸ Min at500VDC
Dielectric Strength Between Open Contacts: 500VAC (for one minute/sec)
Between Contactw and coil: 750AC (for one minute/sec)
Operate Tice: 7ms
Release Tice: 5ms
