Brand new never been used.

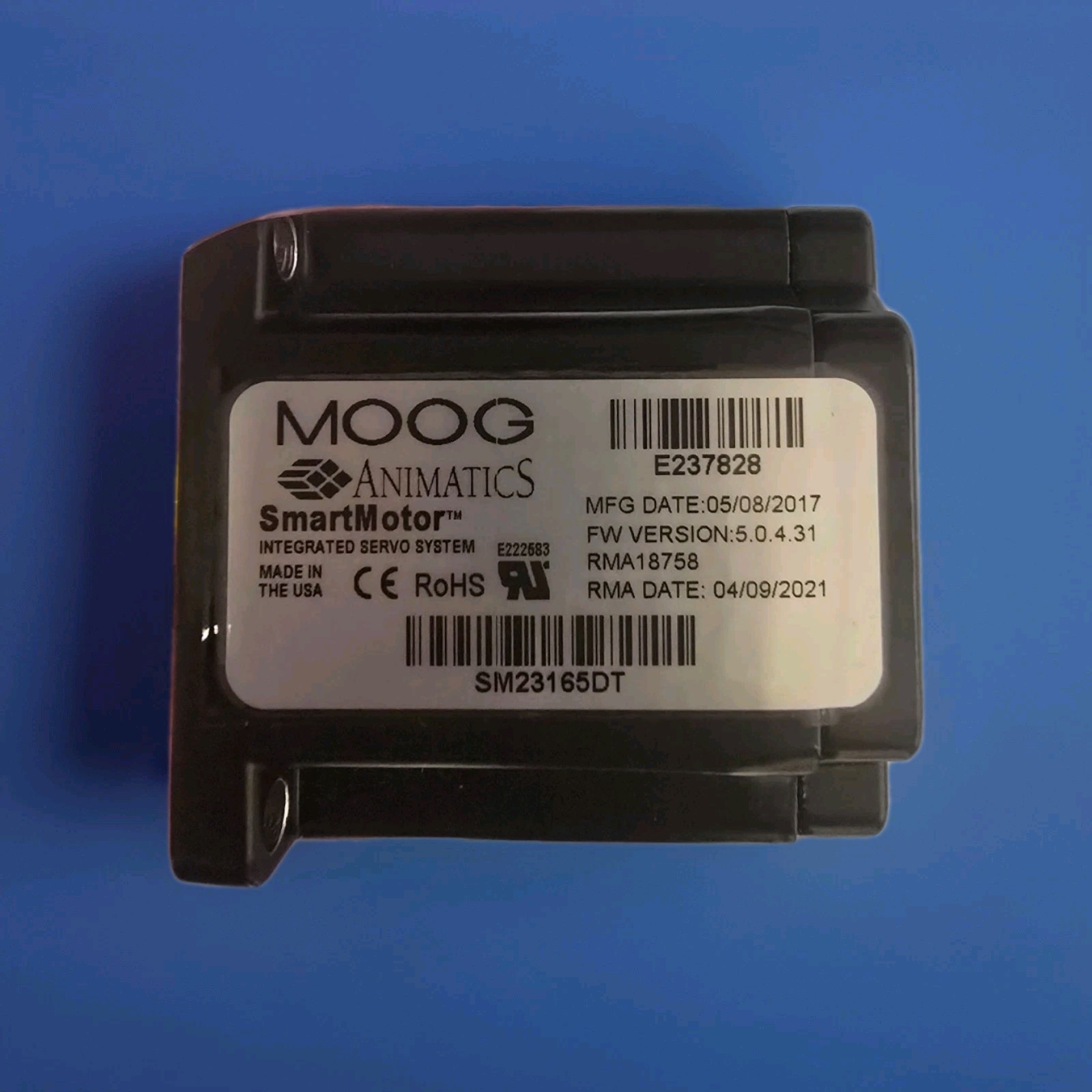

SM23165DT Class 5 D-Style SmartMotor24 vdc - 48vdc
AS-IS
Specifications
Fieldbus Availability
View the fieldbus options by model
Continuous Torque4.61in-lb74oz-in0.52N-mPeak Torque7.40in-lb118oz-in0.84N-mNominal Continous Power204WattsNo Load Speed5,200RPMMax. Continous Current @ 3800 RPM5.074AmpsPeak Power @ 3400 RPM210WattsVoltage Resolution4,000Counts/RevRotor Inertia0.001oz-in-sec^20.70610^-5 Kg-m^2Weight1.3lb0.59kgShaft Diameter0.250in6.35mmShaft, Radial Load7lb3.18kgShaft, Axial Thrust Load3lb1.36kg
