weighing kit (NTEP) Legal for trade Full kit Build your own Floor scale 80000 For Sale

Floor Scale Kits - 80,000 lb up to 80,000 LB

4) NTEP 20,000lb load cells large envelope

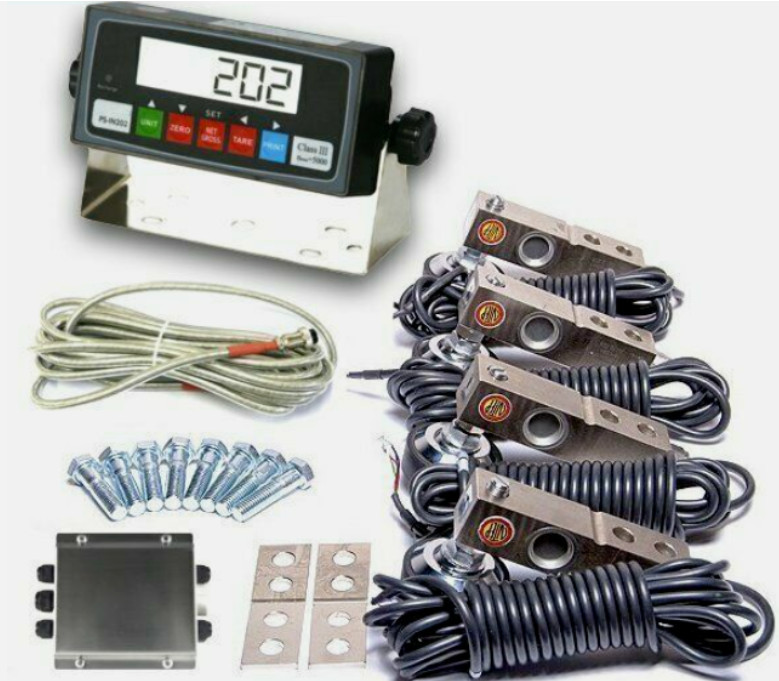

Kit includes four NTEP Load Cells, Mounting Hardware, Digital LCD indicator with wall mounting stand and RS-232, rechargeable battery, AC adapter 100-220v, junction box, four leveling feet, 15' long cable with quick disconnect

Leveling Feet - Four quantity, construction with molded rubber insert, 2.375" diameter, 3" length, 1.625" long 1/2-20 threads

Load Cells - Four quantity 10,000lb, nickel-plated alloy steel, 3.0mV/V rated output, NTEP certified at 5000 divisions, Class lll, 19' cable length

Interface Cable - 15' long, four wire

Junction Box - Four channel signal trim

Summing Board - Four channel signal trim

• Indicator Specifications:
• Legal for Trade NTEP CC# 12-112
• 0.5″ LED display
• Configurable A/D conversion rate
• power for 8 350 ohm load cells
• Units: Lb / Kg / oz
• 5 button operation
• Slave mode to use as remote display
• 3 kinds of signal output for printers, Score boards & computers ( includes livestock sale mode) Comp ports: Rs-232 x1
• power: external AC/DC adapter & built-in rechargeable battery
• Stainless steel bracket for table stand or wall mount
• Size: 6.5″ x 3″ x 1.5″

  Features:
• Shear beam load cells, one end fixed.
• Alloy steel or Stainless Steel Option
• Self-centering
• Easy to install & use
• Shear Beam Single Ended Load Cell

  load cell Specifications:
• Rated Output (mV/V): 3.00±0.015
• Nonlinearity: ±0.02%FS
• Hysteresis: ±0.02%FS
• Repeatability: ±0.01%FS
• Creep (30 minutes): ±0.02%FS
• Zero Balance: ±1.00%FS
• Temperature Effect on Zero: ±0.02%FS/10°C
• Temperature Effect on Output: ±0.02%FS/10°C
• Input Resistance: 385±5Ω
• Output Resistance: 350±3Ω
• Insulation Resistance: ≥5000MΩ
• Excitation Voltage: 10V(DC/AC)
• Compensated Temperature Range: -10°C ~ 50°C
• Operating Temperature Range: -20°C ~ 60°C
• Safe Overload: 120%FS
• Cable: 5.4x6 m
