Description:【True 100A Full-Power Output – No Derating】【250V Max Input & 99.9% MPPT Efficiency – Harvest Every Watt】【10-Year Design Life – Built for Unattended, Harsh Environments】【Universal Battery Compatibility & Complete Protection】Automatically detects 12V/24V/36V/48V systems and supports all lead-acid (AGM/Gel/Flooded) and lithium (LiFePO4) batteries. Includes comprehensive safeguards: reverse polarity (input/output), overcharge, short-circuit, overheat, and over-current protection—so your investment stays safe.【Effortless Setup & Intuitive App – No Coding, No Hassle】

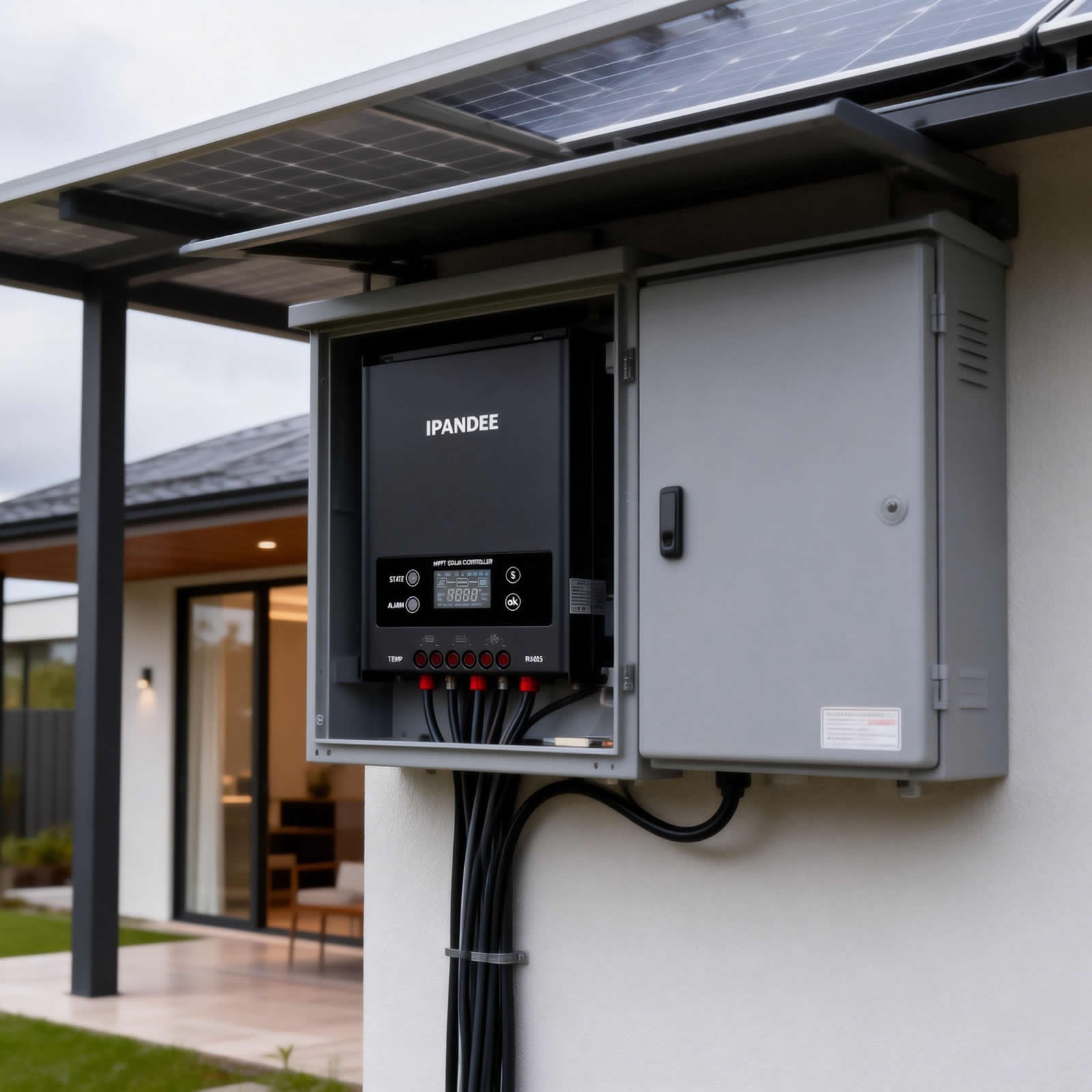

100A MPPT Solar Charge Controller 12V 24V 36V 48V Battery LCD Max PV 250V LCDDescription:✅ 【Advanced 100A Solar Charge Controller, True 100A Continuous Output】IPANDEE 48v charge controller ever sustains a full 100A charging current under real-world conditions—zero throttling, even in high-temperature or continuous-load environments. This solar controller 100A Engineered to reliably power demanding 24/7 applications,100a solar regulator charge controller battery Intelligent regulator ideal for off-grid solar system, off-grid home solar power system, large farms,ranches,remote weather stations,forest fire watch towers,highway and border security systems,marine vessels,Workshop,off-grid homes,Solar System RV Off Grid marine, and mobile power stations where every watt counts.✅ 【250V Max Input, Up to 5200W Power & 99.9% High Efficiency】The 250vdc mppt supports High PV Input Power/Voltage,up to 250V Solar Input from solar panels,When the battery is a 12V system, the recommended maximum PV input power is 1300W;For 24V system,the Max. is 2600W;For 36V system,the Max. is 3900W;For 48V system, Max. is 5200W. minimizing cable loss and enabling flexible high-voltage panel configurations over long distances.Advanced 100 amp solar charge controller algorithm achieves 99.9% tracking efficiency MPPT Technology,maximizing daily energy yield for faster battery charging and lower cost per kWh.This significantly enhances the energy utilization in the solar system.✅【Wide Battery Compatibility, 12V/24V/36V/48V Auto】100A MPPT solar charge controller 12v 24v 36v 48v Compatible with many types of 12/24/36/48V batteries,Lead-Acid and Lithium Batteries: such as Lead-acid battery, LiFePO4 battery, Sealed battery, Gel battery, AGM battery, Flooded battery, Lithium battery and User-defined, easy switching by the control system. When the Battery Type parameter is set to Lithium Battery, there is also a lithium activation function.✅【Excellent Heat Dissipation & Full Safety Protection】Full battery charging protection, this Intelligent Regulator Solar Charge Controller with LCD Display Includes comprehensive safeguards: reverse polarity (PV input & battery output), overcharge, over-discharge, short-circuit, overheat, over-current, lightning surge, and nighttime reverse current protection. This 100amp charge controller MPPT charge controllers for Solar Panels Ensures long-term safety for your solar panel kit, batteries, and critical loads—even in unmonitored, extreme environments.
✅ 【User-Friendly Large Backlit LCD Screen & Easy Connection】100 amp solar charge controller display lcd is equipped with an Bright Large and High-Resolution LCD display for system operation information and two buttons for menu operation. 250v charge controller 48v LCD Display Regulator Simply connect the cables to the solar panel and battery according to positive and negative poles to automatically recognize the voltage and charge the battery.LED indicators and error codes provide quick system diagnostics, 48v controller Max PV 250vdc mppt solar panel charge controller Ideal for DIY off-grid setups.
✅【Smart App Monitoring & Bluetooth Wireless Control】MPPT solar charge controller 48v with our Free official "Solarmate" App – compatible with iOS and Android via Bluetooth wireless monitoring—track real-time PV voltage, charging current, battery SOC & voltage with zero subscription fees forever. Plug-and-play simple setup with intuitive menu navigation. 100 amp mppt solar charge controllers Built-in RS485 communication port for wired remote monitoring, PC software control, and BMS integration. BT-2 Bluetooth module (sold separately) enables wireless connectivity. Package: 250 volt mppt 100 amp solar charge controller ×1, English user manual×1.
✅ 【10-Year Industrial Lifespan – Operates -20°C to +50°C, Stores -40°C to +70°C】 MPPT 100a 48v mppt charge controller engineered with industrial-grade components, aluminum heat sink, and conformal coating for extreme resilience.Solar charge controller 100 amp Operates reliably from -20°C to +50°C, and survives storage or transport in temperatures as low as -40°C (Arctic winters) or as high as +70°C (desert warehouses). 100a mppt solar panel regulator charge controller solar/battery grid mppt Designed to comply with CE, FCC ,RoHS. Proven in off-grid cabins, wildfire towers, border surveillance, rural telecom sites, and emergency backup systems—where failure is not an ESF48H100
Controller type: Controller with Maximum Power Point Tracking (MPPT)
MPPT efficiency: ≥99.5%
No-load static loss: 1W–1.5W
System voltage: 12V/24V/36V/48V Auto
Cooling method: Fan cooling
PV Maximum Open Circuit Voltage (VOC): 250Vdc
Start charging voltage point: 3V higher than battery voltage
Input low voltage protection point: 2V higher than the current battery voltage
Input overvoltage protection point: 250VdcRated input power:
12V system: 1300W
24V system: 2600W
36V system: 3900W
48V system: 5200WApplicable battery type: Lead-acid battery / Li-ion battery
Lithium battery activation function: Optional
Charge rated current: 100A
Charging method: Lead-acid battery: fast charge, equal charge, floating charge; lithium battery: fast charge, equal charge
Load voltage: same battery voltage
Rated load current: 50A
Load control mode: Normally open and normally closed mode / dual period control mode / light control mode / light control-fixed time control mode
Display method: High-definition LCD segment code backlight display
Communication method: 8-pin RJ45 interface/RS485 bus/support host computer monitoring/support external Bluetooth, WIFI module expansion to realize app cloud monitoring/support external monitoring header
Protective function: Input and output over-voltage protection, anti-reverse connection protection, battery drop protection, etc.
Working temperature: –20°C ~ +50°C
Storage temperature: –40°C ~ +70°C
IP protection class: IP21
Maximum wire size: 25mm²
Net weight (kg): 3.4
Gross weight (kg): 4
Product Size (mm): 305*200*85
Packaging size (mm): 382×245×129
Package Included:
1 x 100A MPPT with premium gift box packaging
1 x English User Manual
