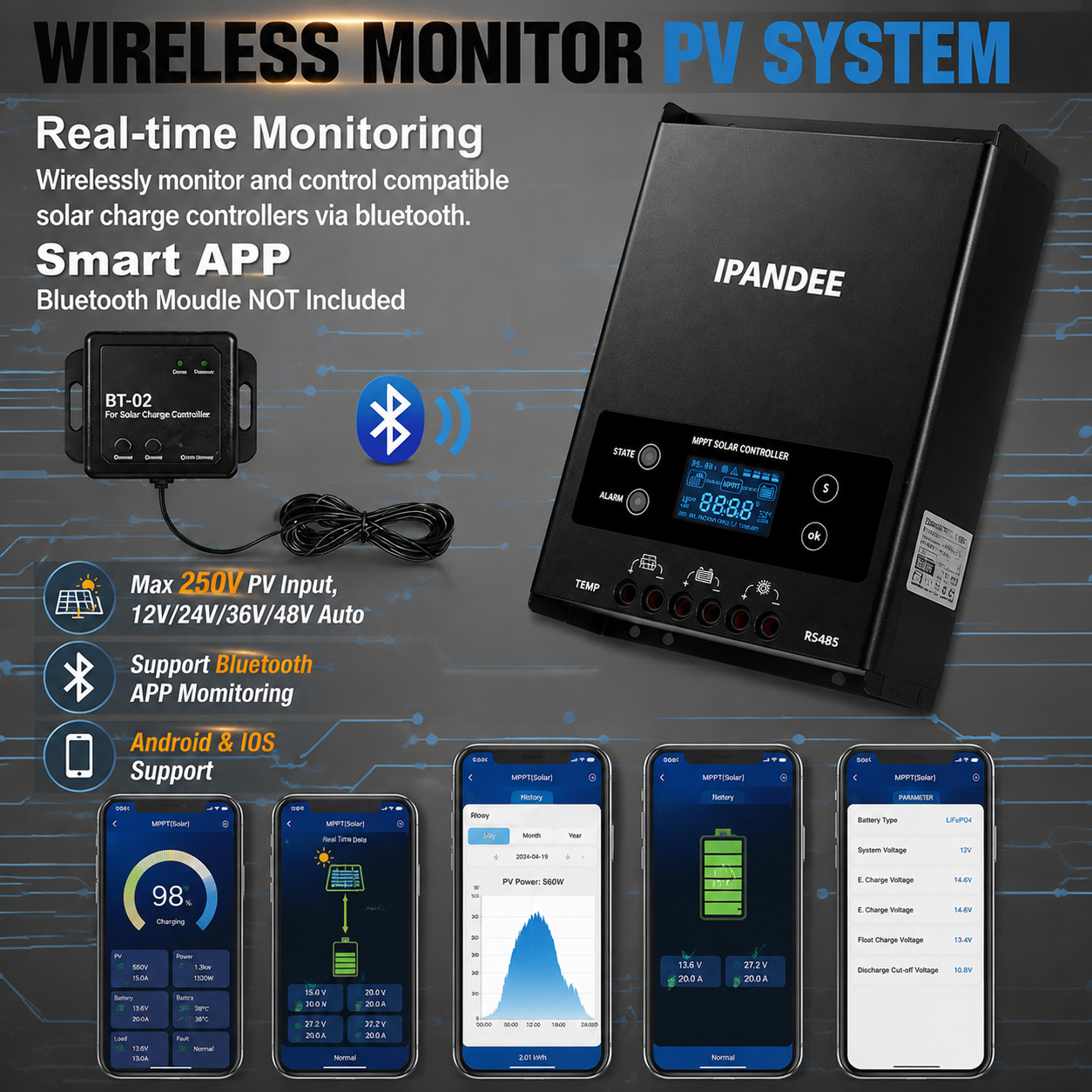

5200W 100A MPPT Solar Charge Controller 12V/24V/36V/48V Battery PV Max Regulator:
$303.98

✅ 【User-Friendly Large Backlit LCD Screen & Easy Connection】100 amp solar charge controller display lcd is equipped with an Bright Large and High-Resolution LCD display for system operation information and two buttons for menu operation. 250v charge controller 48v LCD Display Regulator Simply connect the cables to the solar panel and battery according to positive and negative poles to automatically recognize the voltage and charge the battery.LED indicators and error codes provide quick system diagnostics, 48v controller Max PV 250vdc mppt solar panel charge controller Ideal for DIY off-grid setups.
✅【Smart App Monitoring & Bluetooth Wireless Control】MPPT solar charge controller 48v with our Free official "Solarmate" App – compatible with iOS and Android via Bluetooth wireless monitoring—track real-time PV voltage, charging current, battery SOC & voltage with zero subscription fees forever. Plug-and-play simple setup with intuitive menu navigation. 100 amp mppt solar charge controllers Built-in RS485 communication port for wired remote monitoring, PC software control, and BMS integration. BT-2 Bluetooth module (sold separately) enables wireless connectivity. Package: 250 volt mppt 100 amp solar charge controller ×1, English user manual×1.
✅ 【10-Year Industrial Lifespan – Operates -20°C to +50°C, Stores -40°C to +70°C】 MPPT 100a 48v mppt charge controller engineered with industrial-grade components, aluminum heat sink, and conformal coating for extreme resilience.Solar charge controller 100 amp Operates reliably from -20°C to +50°C, and survives storage or transport in temperatures as low as -40°C (Arctic winters) or as high as +70°C (desert warehouses). 100a mppt solar panel regulator charge controller solar/battery grid mppt Designed to comply with CE, FCC ,RoHS. Proven in off-grid cabins, wildfire towers, border surveillance, rural telecom sites, and emergency backup systems—where failure is not an ESF48H100
Controller type: Controller with Maximum Power Point Tracking (MPPT)
MPPT efficiency: ≥99.5%
No-load static loss: 1W–1.5W
System voltage: 12V/24V/36V/48V Auto
Cooling method: Fan cooling
PV Maximum Open Circuit Voltage (VOC): 250Vdc
Start charging voltage point: 3V higher than battery voltage
Input low voltage protection point: 2V higher than the current battery voltage
Input overvoltage protection point: 250VdcRated input power:
12V system: 1300W
24V system: 2600W
36V system: 3900W
48V system: 5200WApplicable battery type: Lead-acid battery / Li-ion battery
Lithium battery activation function: Optional
Charge rated current: 100A
Charging method: Lead-acid battery: fast charge, equal charge, floating charge; lithium battery: fast charge, equal charge
Load voltage: same battery voltage
Rated load current: 50A
Load control mode: Normally open and normally closed mode / dual period control mode / light control mode / light control-fixed time control mode
Display method: High-definition LCD segment code backlight display
Communication method: 8-pin RJ45 interface/RS485 bus/support host computer monitoring/support external Bluetooth, WIFI module expansion to realize app cloud monitoring/support external monitoring header
Protective function: Input and output over-voltage protection, anti-reverse connection protection, battery drop protection, etc.
Working temperature: –20°C ~ +50°C
Storage temperature: –40°C ~ +70°C
IP protection class: IP21
Maximum wire size: 25mm²
Net weight (kg): 3.4
Gross weight (kg): 4
Product Size (mm): 305*200*85
Packaging size (mm): 382×245×129
Package Included:
1 x 100A MPPT with premium gift box packaging (Bluetooth not included)
1 x English User Manual

Click below picture to purchase the Bluetooth module for real-time monitoring.
