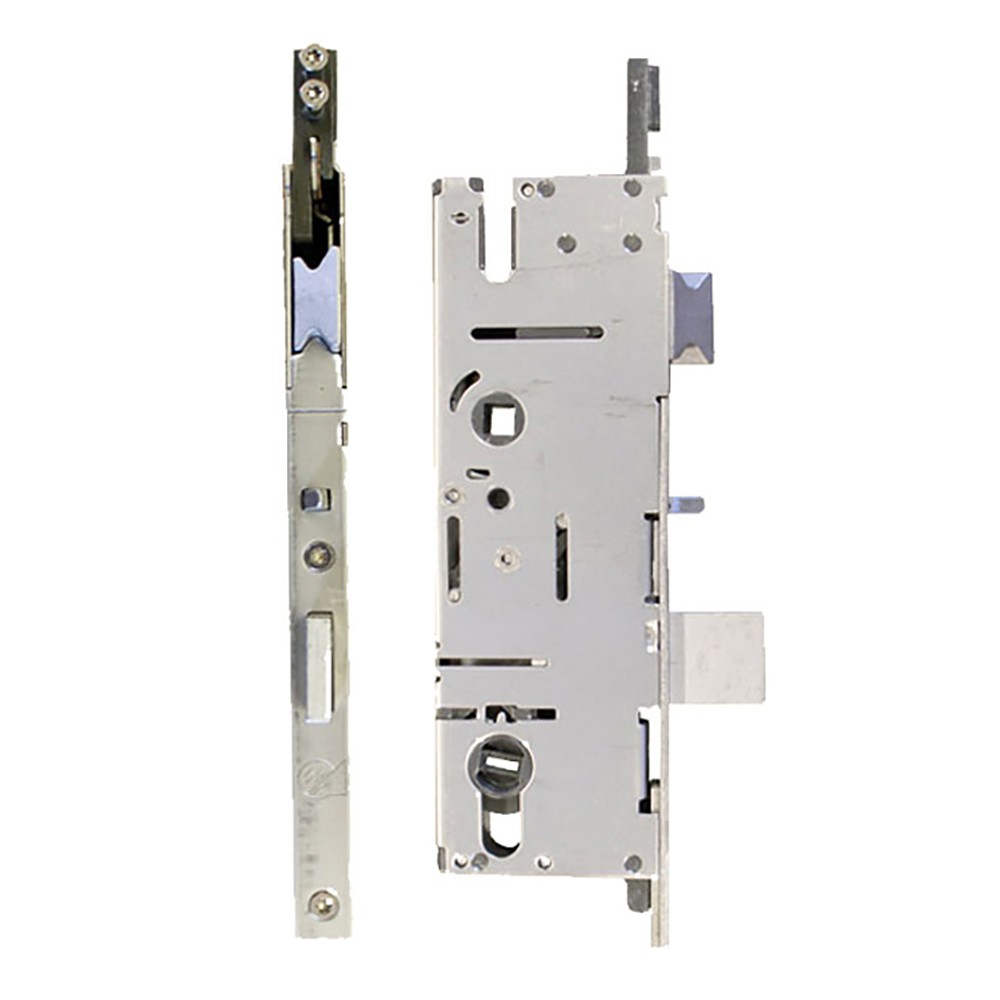

P2000 16mm Active 45mm Gear with Tongue Locking System
Cylinder Type: American
Handle Height: 36 inches (914mm)
Backset: 1.77 inches (45mm)
Faceplate Width: 5/8 inch ( 16mm)
Material: Stainless Steel
Bottom Tongue Position: 26.42 inches (671mm)
Tongue versions are used with Astragals. The Rhino and Shootbolt can be used with or without astragal.
Stamped numbers on front of gear LF2113 - Back of gear LD2113
Note: If used with appropriate upper extension, can fit doors from 69 inches to 108.5 inches.
Premiere P2000 Active American 3 Point Tongue Locking System
For Door heights from 69 in. to 108.5 in. use these parts:
Bottom Gear with Tongue - 8145-2113-81-LA
Upper Ext. - 69\" to 82.5\" door - 16-2084-UA (tongue position 18.92\")
82\" to 95.5\" door - 16-2085-UA (tongue position 26.39\")
95\" to 108.5\" door - 16-2086-UA (tongue position 32.89\")
