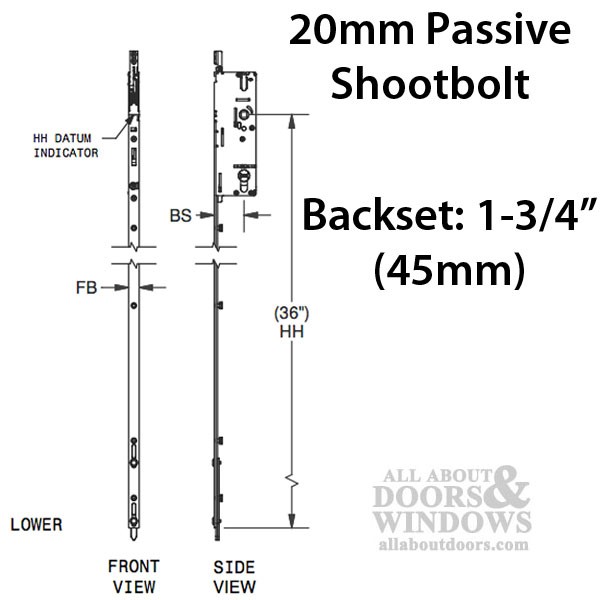

20mm P2000 Passive Lower 35/92 Shootbolt, 36 HH
This is the lower assembly of a 2 point lock with vertical shootbolts locking at top and bottom of door
The passive gear and be used on doors with astragals or without. (when the locks are face to face)
When the active door deadbolt extends into the passive gear box it restricts movement of the top and bottom shootbolts
Type: Lower Gear Assembly with Shootbolt attached
Faceplate Width: 13/16 inch (20mm)
Backset: 1-3/8 inch (35mm)
Handle Height, bottom: 36 inch (914mm)
Handle to Cylinder- PZ : 3-5/8 inches (92mm)
Gearbox Lock Cylinder: American Version with Flat tailpiece
Markings on Faceplate: LF2270 lower
NOTE: Requires 3 pieces to make complete Passive lock assembly
1. Lower Assembly with Gear
2. Upper Assembly, per height requirement
3. Shootbolt Tip 5670-80-81 attaches to Upper to complete overall length
There are 4 combinations of Upper Extensions to fit varied door heights
20-2274UA Door heights 69.0\" - 82.5\"
20-2275UA Door heights 82.0\" - 95.5\"
20-2276UA Door heights 95.0\" - 108.5\"
20-2271UA Door heights 108.0\" - 121.5\"
