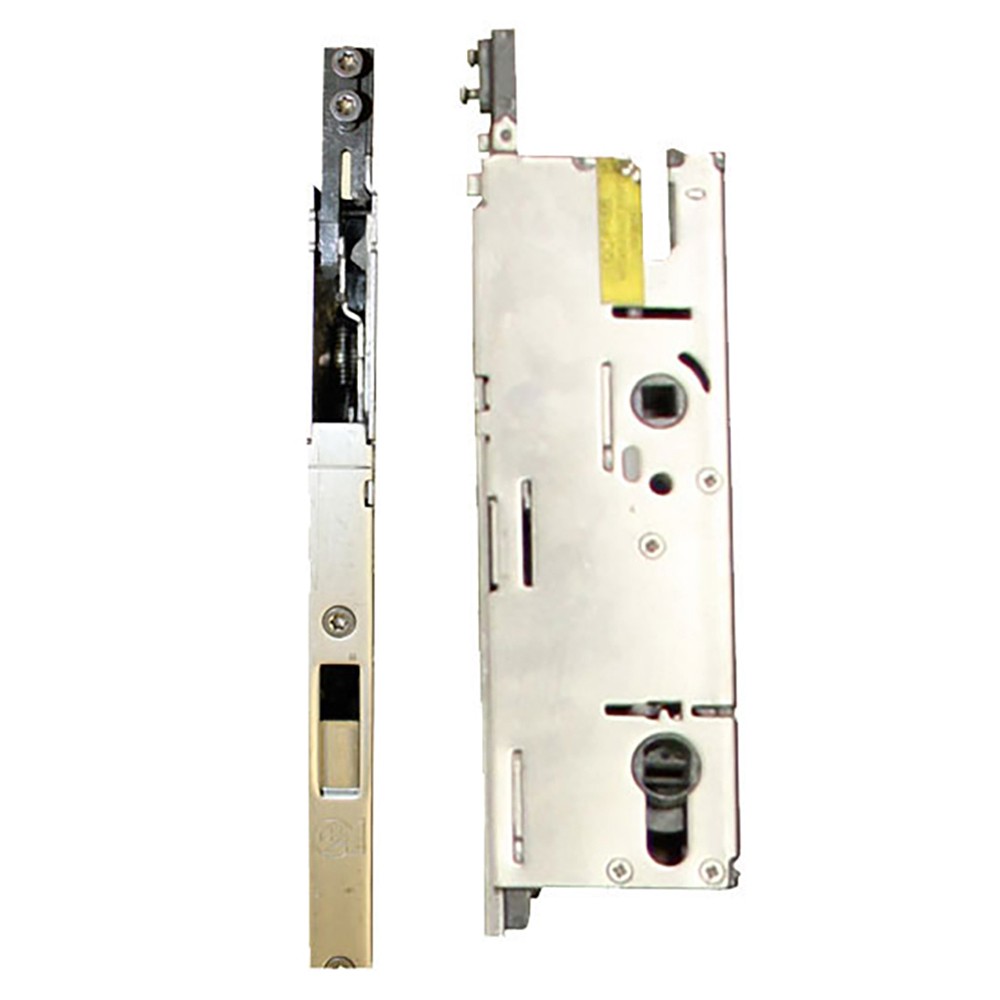

20mm P2000 Passive Lower 45/92 Hook / Shootbolt, Winkhaus OML Replacement, 38.559 HH
Backset: 1-3/4 inch (45mm)
Faceplate Width: 13/16 inch  .787\"  (20mm)
Handle PZ: 3-5/8 inch (92mm)
Cylinder Version: AmericanÂ
Handle Height: Â 38.559\"
Upper Has 1 Hooks Receptacle; Lower 1 hook Receptacle
Overall Length: 76-1/4\" with 38.559\" handle Height  ( Milgard 6-8 door ??)Â
NOTE:Â
Active Hook would be 8745223881 and the Passive would be 8545223681
Optional Double Door Shootbolt Kit - Fits Double Doors from 84.5\"- 98.5\"
Active Shootbolt Door, 3 point lock
8045-2239-80-LA - Lower SB Gear  Handle Height:  38.559\"
2295UA - Mid SB Extension
5670-80-81 - Upper Shootbolt Tip, 20mm
Passive Shootbolt Door, 2 point lock 76.25\" Milgard DoorÂ
8545-2237-81 - Lower SB Gear  Handle Height:  38.559\"
2275UA - Upper Extension w/ Receptacle for hook
5670-80-81 - Upper Shootbolt Tip, 20mm
