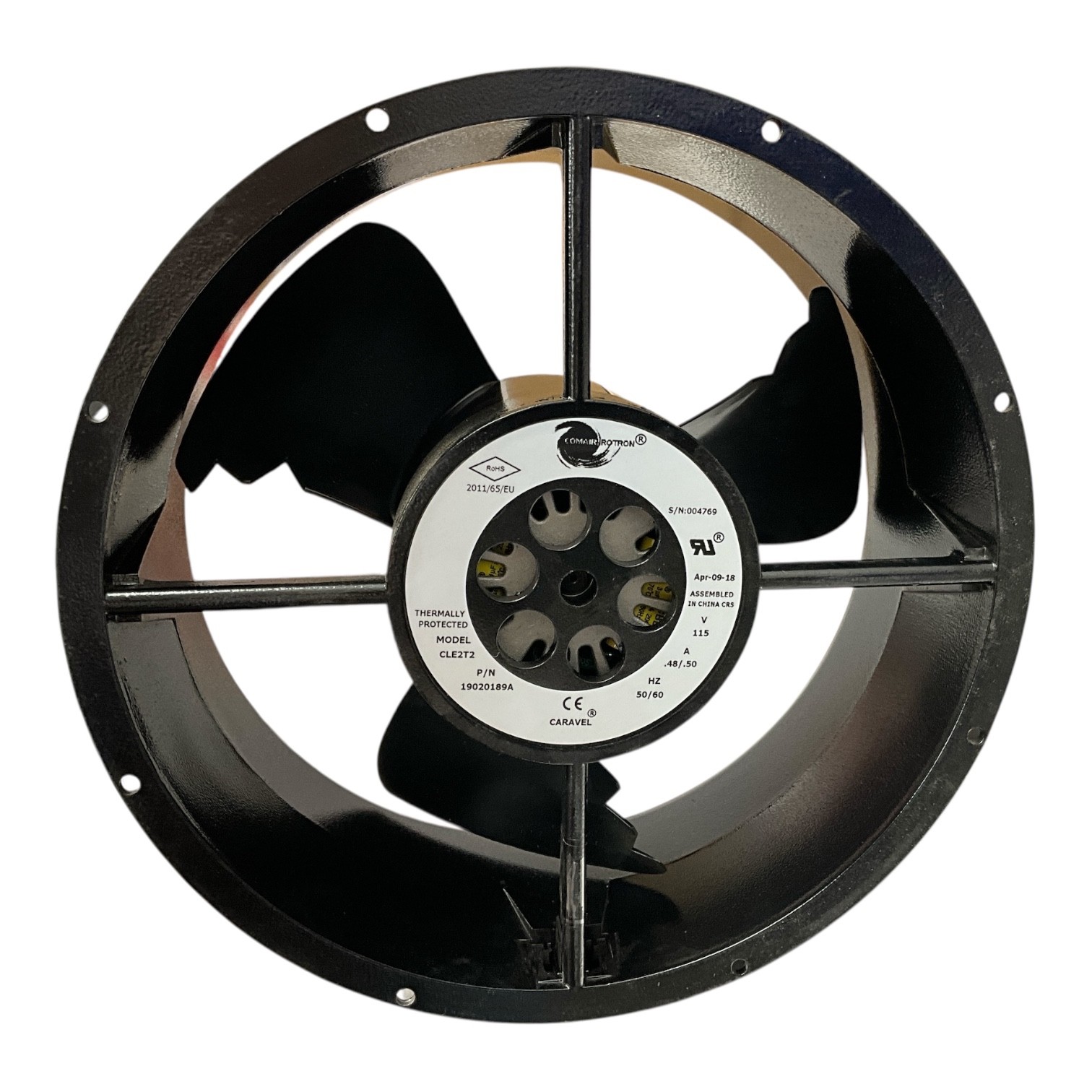

Comair Rotron Caravel CLE2T2 19020189A 10in 115VAC 550 CFM Axial Fan
Description:
Comair Rotron Caravel industrial AC tubeaxial cooling fan in its original box. The packaging shows shelf and storage wear, The fan appears clean and unused. Please review all photographs for the exact item and cosmetic condition.
Specifications:
- Manufacturer: Comair Rotron
- Series: Caravel AC
- Model: CLE2T2
- Manufacturer part number: 19020189A
- Additional assembly label: 560745
- Voltage: 115 VAC
- Frequency: 50/60 Hz
- Running current: 0.48/0.50 A
- Power: 67/61 W
- Speed: 1400/1650 RPM
- Maximum airflow: 455/550 CFM
- Size: 254 mm diameter × 89 mm deep—approximately 10 × 3.5 inches
- Bearing type: Ball bearing
- Connection: Two 0.11-inch terminals
- Thermally protected
- Aluminum housing with plastic propeller
- UL/cUL and CE approvals
- Date shown on item: April 2018
The manufacturer specifies continuous-duty operation, a permanent-split-capacitor motor, automatic-reset thermal protection and a rated life of approximately 46,000 hours at 70°C.Official Comair Rotron datasheet
Important:No power cord, finger guards, mounting hardware or other accessories are included unless pictured. Installation should be performed by a qualified person because the fan operates directly from 115 VAC.
Where it is used
This is a high-volume industrial ventilation and equipment-cooling fan. Typical applications include:
- Electrical and control cabinets
- Industrial machinery enclosures
- Telecommunications and server equipment
- Welding and power-supply equipment
- HVAC and refrigeration equipment
- Test equipment and laboratory cabinets
- Heat exchangers and electronic cooling systems
- Replacement in equipment requiring a 10-inch, 115-VAC, 550-CFM tubeaxial fan
Compatibility should be confirmed usingpart number 19020189A, voltage, dimensions, airflow direction and mounting-hole pattern. It is not an ordinary household plug-in fan.
