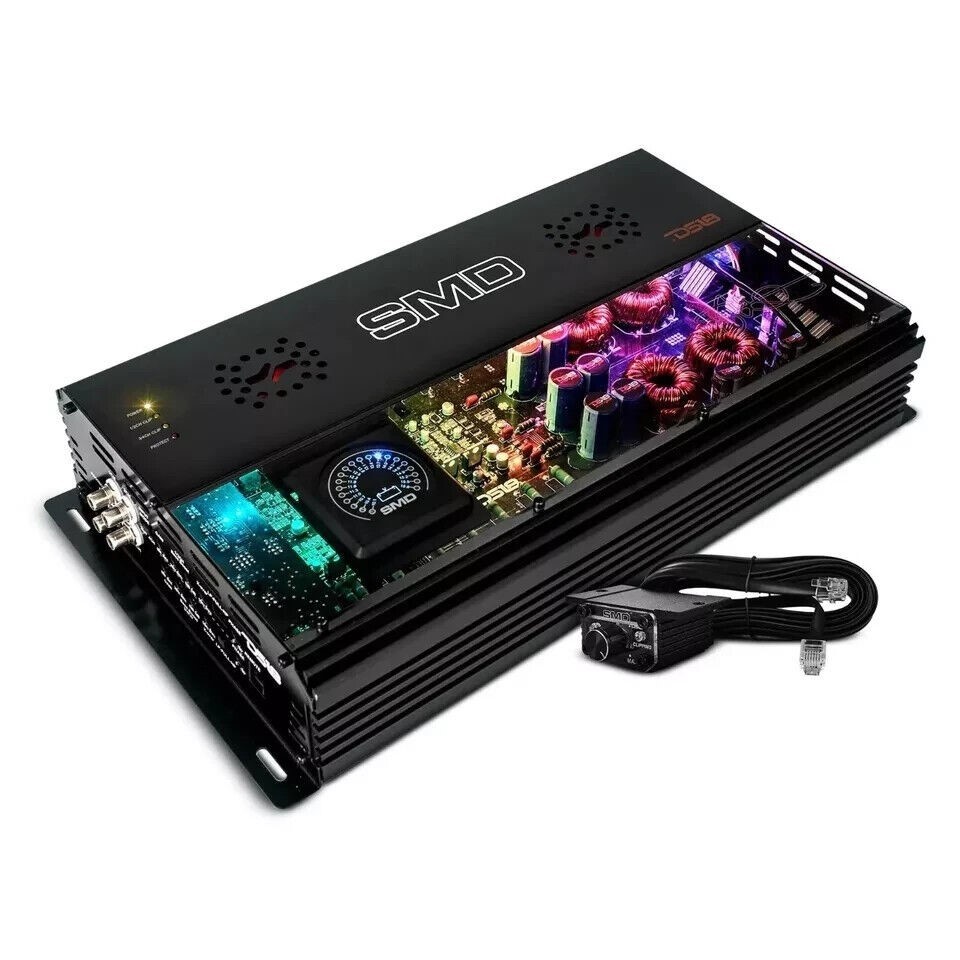

DS18 SMD 500.4AB 2000 Watt RMS 4-Channel Car Amplifier Voltmeter RGB LED Korean For Sale

EXCLUSIVE SMD DESIGN WITH VM-1 VOLTMETER

FRONT ACRYLIC WINDOW AND DIGITAL RGB LIGHTING

IR REMOTE CONTROL FOR LED PATTERNS AND COLORS

PROFESSIONAL TIFFANY
RCA TERMINALS

DUAL COOLING FANS
FOR ENHANCED PERFORMANCE

KOREAN COMPONENTS
OFC INTERNAL WIRING

Introducing the SMD-500.4AB— engineered by DS18 in collaboration with Steve Meade Designs. Built for superior audio performance, it features premium Korean components and Sky High Car Audio’s OFC Internal Wiring. With DS18’s reputation as the LOUDEST in pro audio and Steve Meade’s industry-standard installation peripherals, this amp is built for extreme power and convenience.

“When we first started working on theSMD amplifierswith DS18, I made it clear that these amplifiers needed to stand out from the rest,\" says Steve Meade.

With theSMD-500.4AB, we achieved that and more. What sets theSMD-500.4ABapart is its unique clear half-top design ensuring efficient heat dissipation through a reverse-mounted board and dual cooling fans. It also features an exclusive built-inSMD VM-1digital/analog-style LED voltmeter that monitors power draw in real-time. Customizable RGB lighting adds another layer of personalization, allowing you to match your vehicle’s interior or create dynamic light displays.

Manufactured using premium components from Korea, this amplifier guarantees the reliability and powerful sound quality thatSteve Meade Designsis known for. TheSMD-500.4ABis not only visually striking but also engineered for top-tier performance. It delivers an impressive 300W x 4 RMS at 4-ohm, 500W x 4 RMS at 2-ohm, and 1000W x 2 RMS bridged at 4-ohm, driving even the most demanding setups with ease.

TheSMD-500.4ABis designed for audiophiles seeking superior sound quality. As a Class AB amplifier, it prioritizes clarity and detail, delivering pristine audio performance. Equipped with a precision attenuation knob for easy bass control, it maintains a .10% THD, ensuring exceptional Total Harmonic Distortion levels. With 0 AWG power and ground inputs and a 200A fusing requirement, it’s built for robust power delivery. Additional features include selectable 2/4 channel inputs and Tiffany RCA connectors for the highest quality signal transfer in your setup.

Crafted with precision using only the best components, DS18’sSMD-500.4ABis a full-range amplifier capable of powering anything—from subs and tweeters to midbass vocals and any front and rear combination of speakers. Its advanced protection suite includes thermal overload, DC output, short circuit, and voltage input protection, ensuring safe operation in any setup.

Push the limits of what’s possible with theSMD-500.4AB’s groundbreaking design and raw power!

Highlights:

• 4 Channel Stereo Full Range

• Exclusive SMD Design ~ Class AB

• 2 - 4 Ohm Stable ~ 4 X 500 Watts @ 2 Ohms RMS

• VM-1 Voltmeter ~ Fans ~ Input Selector

• Acrylic Window ~ Digital LED Lighting w/ Remote

• Bass Knob ~ LED Indicators ~ Made in Korea

Power:

• RMS Power @ 4 ohm Stereo (14.4v): 4 x 300 Watts

• RMS Power @ 2 ohm Stereo (14.4v): 4 x 500 Watts

• RMS Power @ 4 ohm Bridge (14.4): 2 x 1000 Watts

Audio:

• Frequency Response: 10Hz-24KHz

• Signal to Noise Ratio: >98dB

• Efficiency @ 4ohm: >62%

• Damping Factor: 160

• Input Impedance: 22K ohm

• Channel Separation: >50dB

• Total Harmonic Distortion (THD): 0.10%

• Low Level Input Range: 200mV-6V

• High Level Input: NO

• Selectable X-Over: HPF/FULL/LPF

• X-Over Filter Range: 50Hz-2KHz

• Bass Boost Range: 0~9dB

• Bass Boost Frequency: 30Hz-60Hz

• Phase Selector: 0~180

Features:

• Amplifier Class: Analog AB

• Amplifier Type: Stereo Full-Range

• Number of Channels: 4

• Minimum Impedance: 2 Ohm Stereo / 4 Ohm Bridge

• Led Indicator

• Power / Protection / Clip

• Power Input Terminal Size: 0 AWG

• Recommended Fuse Size (Not Included): 200A

• Cooling Fan

• Thermal Protection

• Over-Load Protection

• DC Output Protection

• Short Circuit Output Protection

• Voltage Input Protection

• Clipping Protection

• Body Color / Finish: Black

• Input Mode Selectable: Yes (2/4ch)

• Metal Adjustment Knobs with Click Position

• Professional Tiffany RCA Connectors

• Remote Level Knob with Clip indicator

• Linkable (Strap mode) Amplifier

• Reliable Heavy Duty Korean Board Design

• Very High Efficiency Digital Circuit Design

• Exclusive SMD design with VM-1 Voltmeter

• Front Acrylic Window and Digital RGB Lighting

• IR Remote Control for LED patterns and colors

Measurement:

• Overall Length: 16.6\" / 422mm

• Overall Width: 9.15\" / 232mm

• Overall Height: 3\" / 76mm

• Heatsink Length: 15\" / 380mm
