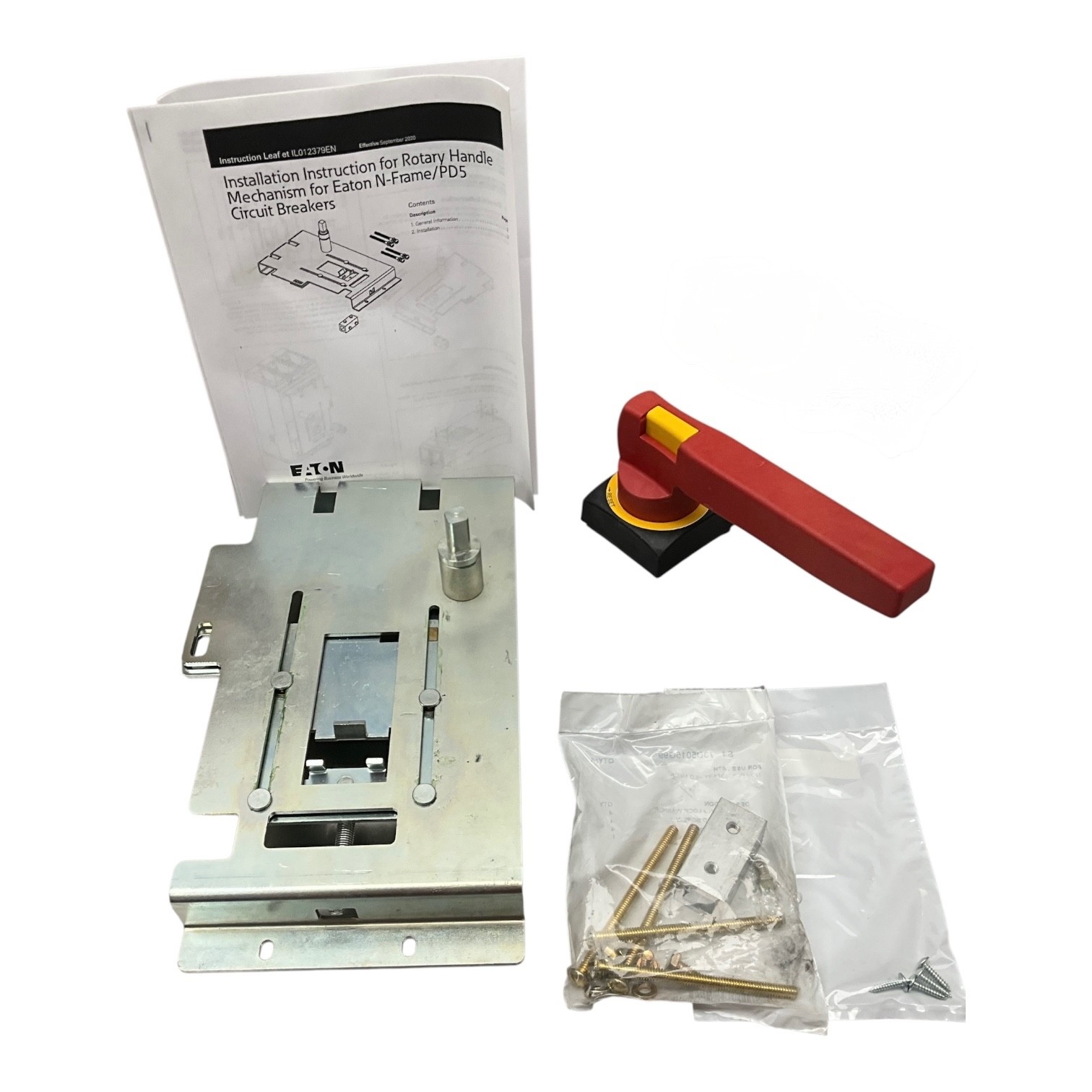

Eaton PDG5XHMDE Emergency Red Rotary Handle Mechanism PD5 Breaker New
Description:
New EatonPDG5XHMDE emergency rotary handle mechanismfor Eaton Power Defense **PD5/PDG5 frame molded-case circuit breakers.
This assembly allows a circuit breaker installed inside an electrical enclosure to be operated externally from the enclosure door. The red/yellow handle provides clear emergency ON/OFF operation and includes the operating mechanism, mounting hardware, and installation instructions shown in the photos.
- Brand: Eaton / Cutler-Hammer
- Catalog number:PDG5XHMDE
- Product type: Extendable-shaft rotary handle mechanism
- Handle color: Red with yellow indicator
- Application: Emergency disconnect
- Breaker compatibility: Eaton Power Defense PD5/PDG5 frame
- Enclosure compatibility: Type 1, 3R, 13, 4 and 4X applications
- Country of manufacture: USA
- Condition:New – Open Box
- Quantity: One complete kit as pictured
- Circuit breaker isnot included
Where It Is Used
Commonly installed in:
- Industrial electrical-control panels
- Machinery disconnect systems
- Motor-control cabinets
- Manufacturing and automation equipment
- Pump and compressor control panels
- Emergency power-isolation applications
- Outdoor or washdown-rated electrical enclosures
The mechanism connects the enclosure-mounted handle to an Eaton PD5/PDG5 circuit breaker, allowing the breaker to be switched without opening the cabinet. Eaton’s instructions identify it as aPDG5 extendable-shaft rotary handle mechanism.Eaton installation instructions
