Eaton PDG5XHMDE PDG5 Emergency Black Rotary Handle Mechanism Power Defense NOB
Description:
GenuineEaton PDG5XHMDE emergency Black rotary handle mechanismdesigned for Eaton Power Defense PDG5 molded-case circuit breaker installations. This door-mounted operating handle allows the breaker to be operated externally from the front of an electrical enclosure.

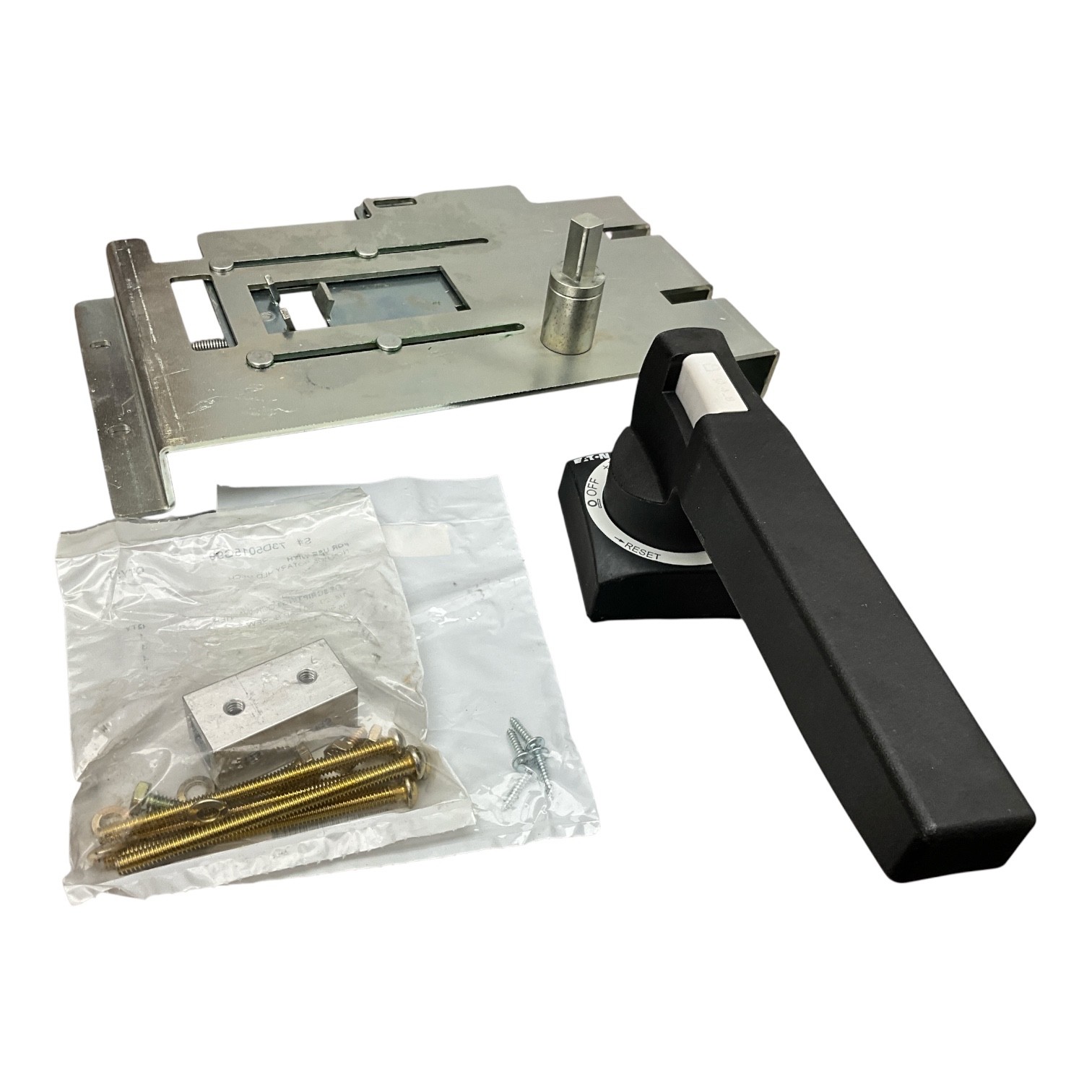

The handle providesON, OFF, TRIP, and RESETposition indication. The kit includes the rotary handle, operating mechanism, shaft, mounting hardware, and accessories shown.
- Brand: Eaton
- Model / Catalog Number:PDG5XHMDE
- Style Number:84D5811G02
- Product Type: Emergency Black rotary door handle mechanism
- Breaker Series: Eaton Power DefensePDG5 / Frame 5
- Enclosure Compatibility: Types1, 3R, 13, 4 and 4X
- Country of Manufacture: USA
- Quantity: 1 kit
- Breaker not included
- Please compare the exact part number and photos with your application before purchasing
Where It Is Used
Used in industrial electrical panels, switchgear, control cabinets, machinery disconnect panels, manufacturing equipment, and power-distribution enclosures fitted with a compatibleEaton Power Defense PDG5 circuit breaker. It allows an operator to turn the breaker on, off, reset it, or identify a trip without opening the enclosure door.
Eaton’s installation literature confirms that PDG5XHMDE is part of thePDG5 extendable-shaft rotary-handle system. Installation should be performed by qualified electrical personnel.Eaton installation instructions
