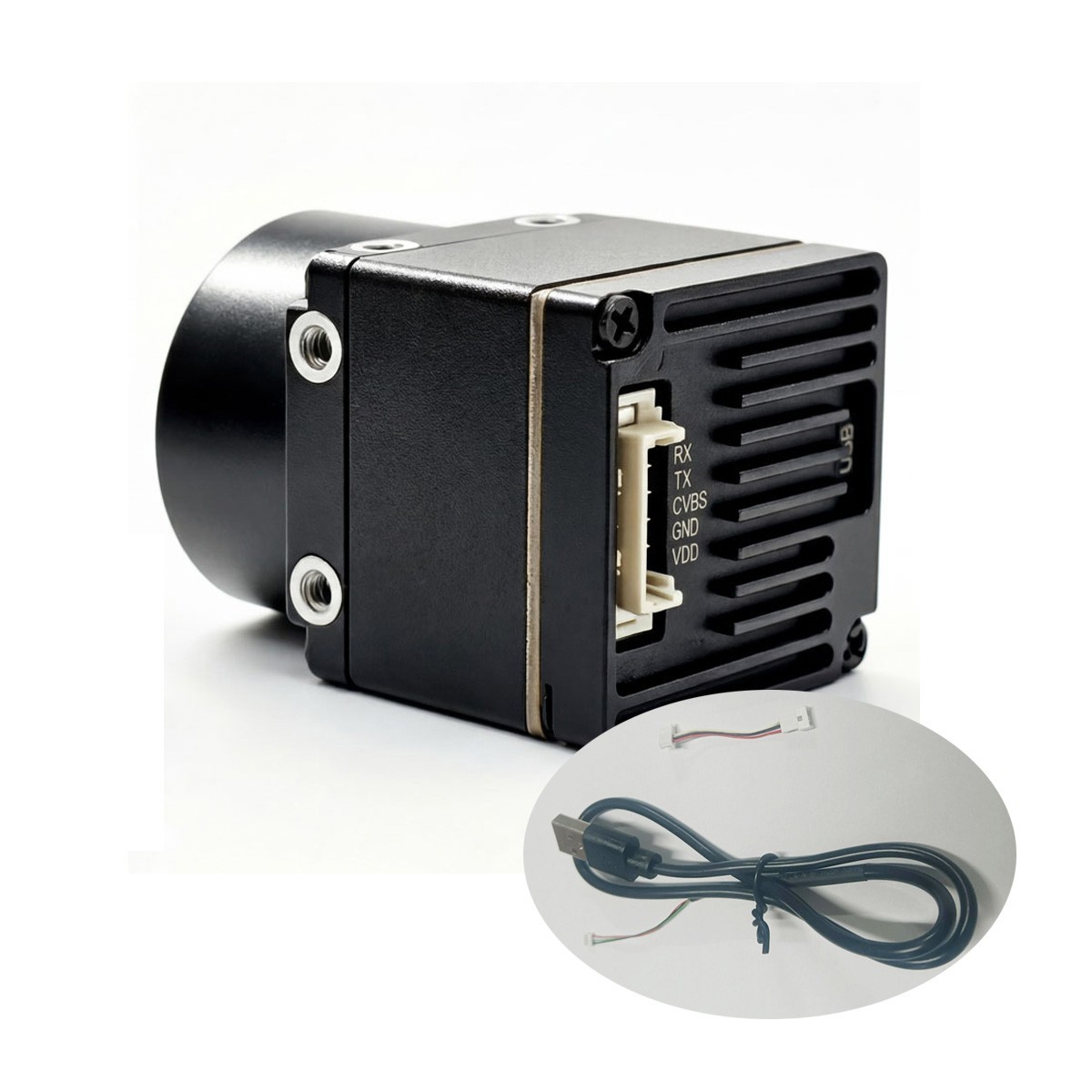

FPV Mini Infrared Thermal Imaging Camera 640x512 12μm 9.1mm CVBS USB (UVC) Port For Sale

Thermal Imaging Camera 640x512 Core Module CVBS, USB(UVC) , Temp Measurement -20~+550C, Drone/NVR/DIY, SDK Key Features & Highlights

• 640×512 HD Thermal Sensor — Uncooled VOx detector delivers crisp, detailed thermal images so you can spot small targets at a glance.
• 50Hz High Frame Rate — Smooth, real-time video with ultra-low latency (<20ms). No lag, no ghosting, even for moving subjects.
• Temperature Measurement from -20°C to 550°C — Optional versions measure surface temperatures accurately for inspection, R&D and safety checks.
• Tiny & Featherweight — Just 21×21×27mm and 23.1g. The perfect core for drones, handheld devices, scopes and DIY builds.
• Ultra-Low Power <0.7W — Keeps your battery happy, ideal for battery-powered and portable applications.
• Wide 5–24V Input — Works with everything from LiPo packs to USB power banks. No extra converter needed.
• Developer Friendly — Choose the version with SDK support for secondary development and full integration control.

Technical Specifications Model XS-HI640512 Detector Type VOx Uncooled Infrared Focal Plane Detector (12μm) Resolution640×512 (384×288 on Option 3) Frame Rate 50Hz (PAL) Field of View 45.8° × 37.3° Lens Focal Length & Aperture 9.1mm / F1.0 Waveband 8–14 μm (LWIR) Video Latency < 20ms Video Output Interfaces USB (UVC) Power Consumption <0.7W Input Voltage 5–24V DC (wide input) Operating Temp. -20°C ~ +60°C Dimensions 21 x 21 x 27 mm | 0.83 x 0.83 x 1.06 in Weight 23.1g | 0.05 lbs Product Specifications Comparison Chart Specification 640×512 No Temp 640×512 With Temp 384×288 With Temp 640×512 Ethernet With Temp Basic Information Temperature Measurement ❌ No ✅ Yes ✅ Yes ✅ Yes Ethernet Port (RJ45) ❌ No ❌ No ❌ No ✅ Yes Detector Detector Type VOx Uncooled FPA VOx Uncooled FPA VOx Uncooled FPA VOx Uncooled FPA Resolution 640×512 640×512 384×288 640×512 Pixel Pitch 12μm 12μm 17μm 12μm Spectral Range 8~14μm 8~14μm 8~14μm 8~14μm Image Processing Video Output 640×512 @50Hz 640×512 @25Hz 720×576 @25Hz 640×512 @25Hz Boot Time 10s 10s 10s 10s Image Algorithms NUC / AGC / DDE / 3D NR NUC / AGC / DDE / 3D NR NUC / AGC / DDE / 3D NR NUC / AGC / DDE / 3D NR Color Palettes 10 Modes 10 Modes 10 Modes 10 Modes Image Mirror L/R / U/D / Center L/R / U/D / Center L/R / U/D / Center L/R / U/D / Center Temperature Measurement Measurement Range N/A -20°C ~ +550°C -20°C ~ +550°C -20°C ~ +550°C Accuracy N/A ±2°C or ±2% ±2°C or ±2% ±2°C or ±2% Analysis Function N/A Max / Min / Center Temp Max / Min / Center Temp Max / Min Temp Display Lens Focal Length 9.1mm 13mm Optional 10/15/19/25mm Optional 10/15/19/25mmOptional Field of View (FOV) 45.8°×37.3° 32.9°×26.6° (13mm) 36.8°×27.8° (10mm) 36.8°×27.8° (10mm) Interface & Power Interface CVBS, USB USB USB USB, RJ45 Ethernet Power Input DC 5~24V DC 5V DC 5~18V DC 12V Power Consumption <0.7W 1.6W 1.1W 0.9W Development Support Basic Demo OSD Menu / SDK OSD Menu / SDK SDK Environment & Structure Operating Temperature -20°C ~ +60°C -30°C ~ +60°C -30°C ~ +60°C -30°C ~ +60°C Storage Temperature -45°C ~ +75°C -45°C ~ +75°C -45°C ~ +75°C -45°C ~ +75°C Dimensions (excl. lens) 21×21×26.5mm 21×21×26.5mm 26×26×41.2mm 26×26×37mm Weight 23.1g 19.0g 33.6g 30.0g

Notes:
Default lens focal length: 9.1 mm.Custom focal lengths are available upon request. Please contact us for quotation and lead‑time information for other lens options.
