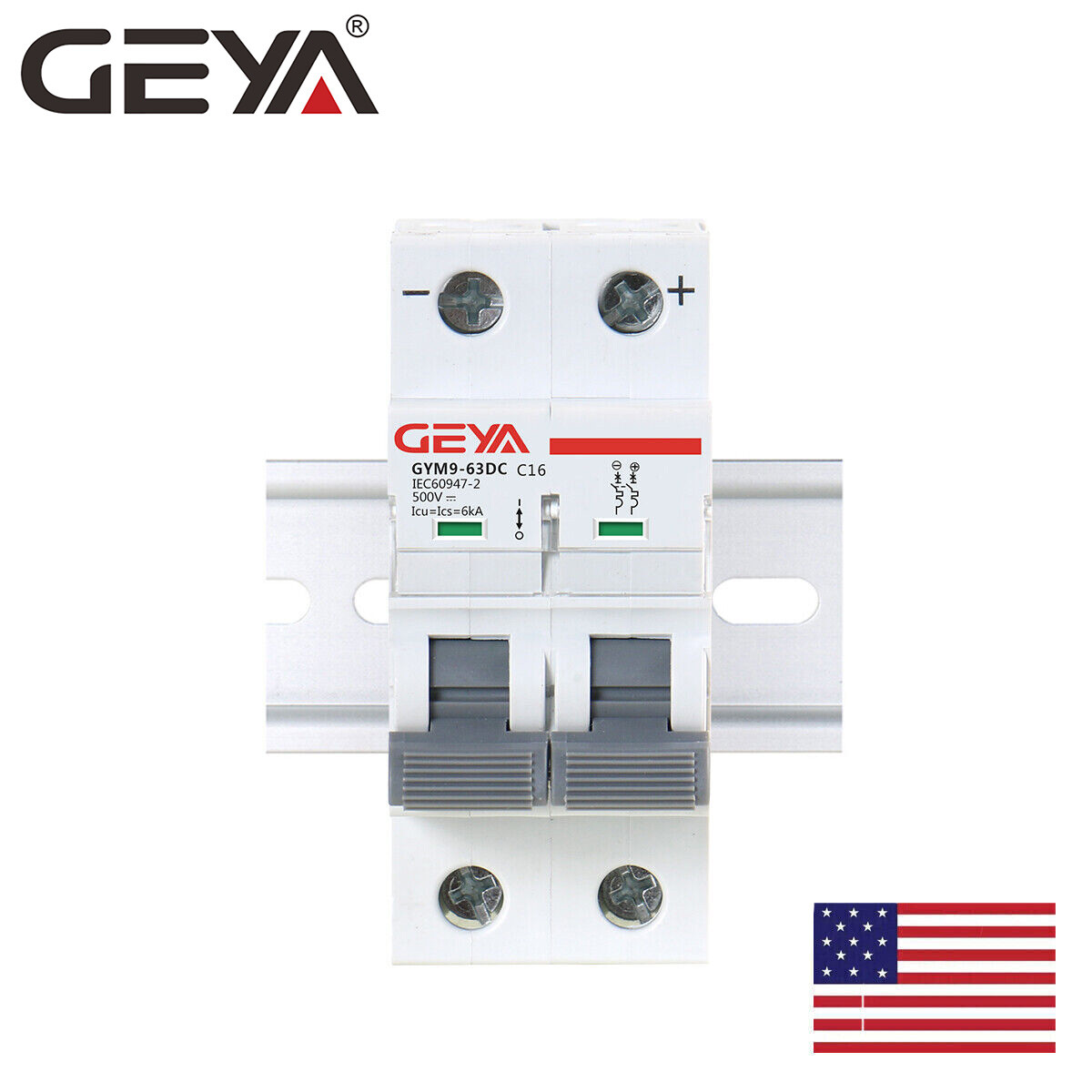

GYM9 Series DC Mini Circuit Breaker

Product Description

This link is in US.

If you from other country.Please click here.

General

GYM9-DCcircuit breaker isused for DC rated voltage to 1000v, rated current to 63A line, foroverload and short circuitprotection, and can also be used as an infrequent operation of the line. Circuit breakers are used inDC applications such as communications and photovoltaic systems.

Feature

1.In complicance with IEC/EN606947-2

2.With indicator function in the contact position

3.Transparent cover designed to carry label.

Specification

Electricalfeatures Rated current In 1-63A 80-125A Poles 1P 2P 3P 4P Rated voltage Ue 1P: 230/400V~
2/3/4P:400~ 1P:240/415V~
2P-4P:415V Insulation voltage Ui 500V Rated frequency 50/60Hz Rated breaking capacity 6000A Rated impulse withstand voltage(1.2/50) Uimp 6kV Dielectric test voltage at and ind. freq.for 1min 2kV Polution degree 2 Thermo-magnetic release characteristic B C D C D Electrical life 8000 6000 Mechanical life 10000 20000 Installation Contact position indicator Yes Portection degree IP20 Terminal connertion type Cable/U-type busbar/Pin -type busbar Tightening torque 30Nm 22 Mounting On DIN rail FN 60715 (35mm)
by means of fast clip device Connection Top and bottom Connection Rated current In Nominal Section Area of Copper Wire(AWG) 1-6A 17 AWG 10A 15-16 AWG 16/20A 15 AWG 25A 14 AWG 32A 9 AWG 40/50A 7 AWG 63A 5 AWG 80A 3-4 AWG 100/125A 1-2 AWG

Packing

Packaging containing: DC Circuit breaker*1 PCS & Rail 10mm *1 PCS

More DC circuit breaker for your consider

Pole Single Pole 6-125A Double Pole 6-125A Four Pole 6-125A

DC Fuse & Socket DC Surge Protection Device DC circuit breaker Plastic distribution box PV transfer switch for 110/220V PV transfer switch for 220/400V PV Combiner Plastic Box
