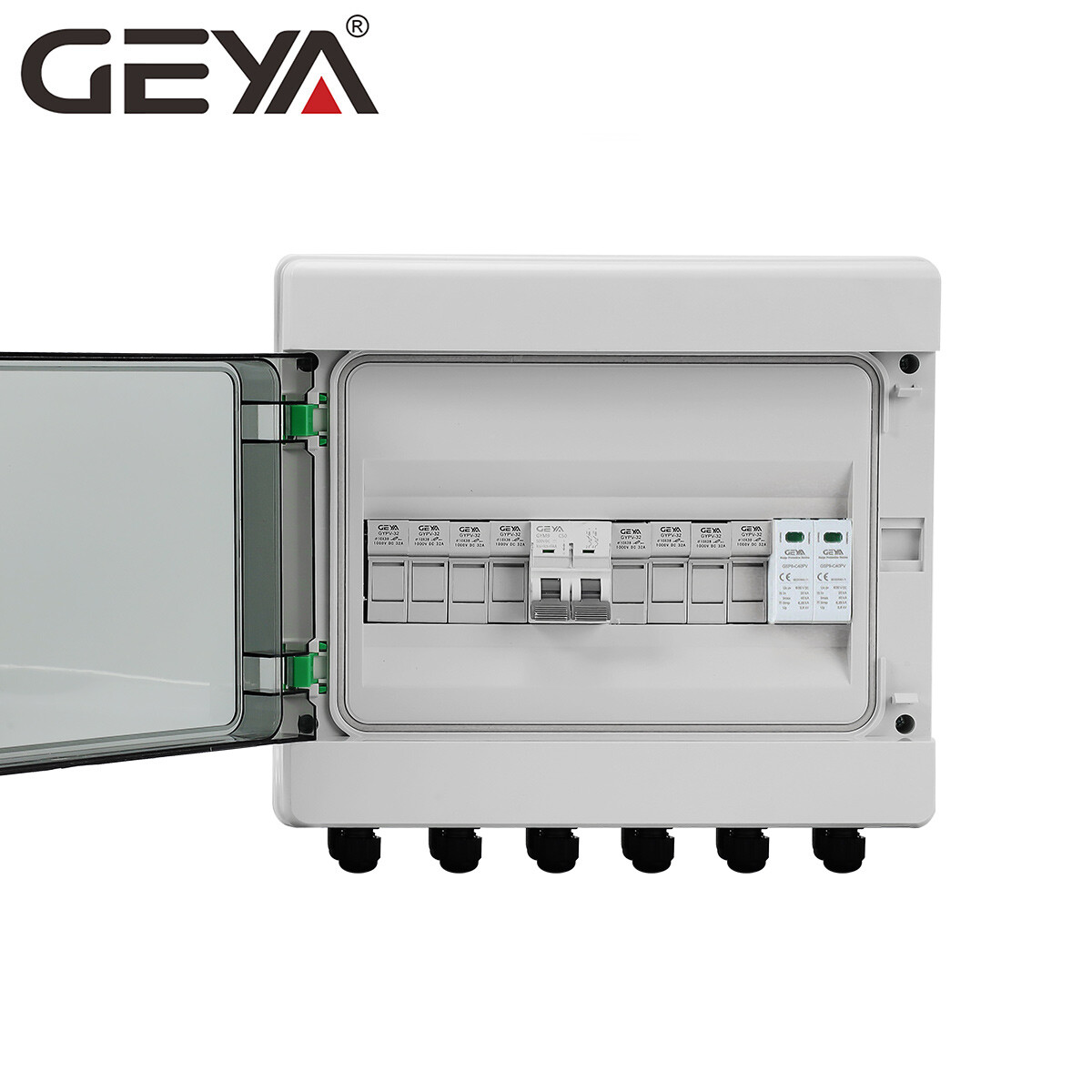

Store Categories Store Categories PV DC Distribution Box
Product Description
Overview
*High reliability
With DC FUSE
With DC Surge Protection Device
With DC circuit breaker or DC load isolation switch.
*Strong adaptability
IP65 design,waterproof,anti dust and anti ultraviolet.
Strict test for high and low temperature,used widely.can be used outdoor andindoor
The simple installation,the simplified system wiring,the convenient wiring.withmounting buckle,suit for any regular surface
The box body is made of cold rolled steel and other metal materials.
*Flexible configuration
Used for single crystal silicon solar modules,polycrystalline silicon solar modules,thin film solar modules,Current rating of the photovoltaic fuse,circuit breaker,load isolation switch is modifed.
-Warranty - 18months; Professional technical Guidance Service
FEATURE
-Suitable for inverter(MAX input voltage DC550V, 1 PV input channel, single MPPT inverter)
This item is for 1MPPT.If you need item for 2 MPPT,Please contact me.
Design and configuration strictly accordance with the 'Technical specification for photovoltaic junction equipment' CGC/GF 037:2014.Provide users with a safe,brief,beautiful and applicable photovoltaic system products.
Name GYPV/2-1 Electric parameter System maximum dc voltage 550VDC 1000VDC Maximum input current for each string 15A Maximum input strings 2 Maximum output switch current 50A/63A Number of inverter MPPT 1 Number of Output strings 1 Lightning protection Category of test Ⅱgrade protection Nominal discharge current 20kA Maximum discharge current 40kA Voltage protection level 2.8kV 3.8kV Maximum continuous operating voltage Uc 630V 1050V Poles 2P 3P Structure characteristic Plug-push module System Protection grade IP65 Output switch DC isolation switch(standard)/DC circuit breaker(optional) MC4R Waterproof Connectors Standard PV dc fuse Standard PV surge protector Standard Monitoring module Optional Preventing diode Optional Box material PVC Installation method Wall mounting type Operating Temperature －25℃～＋55℃ Elevation of temperature 2km Permissible relative humidity 0-95%,no condensation Mechanical parameter Width×High×Depth(mm) 320*285*140
