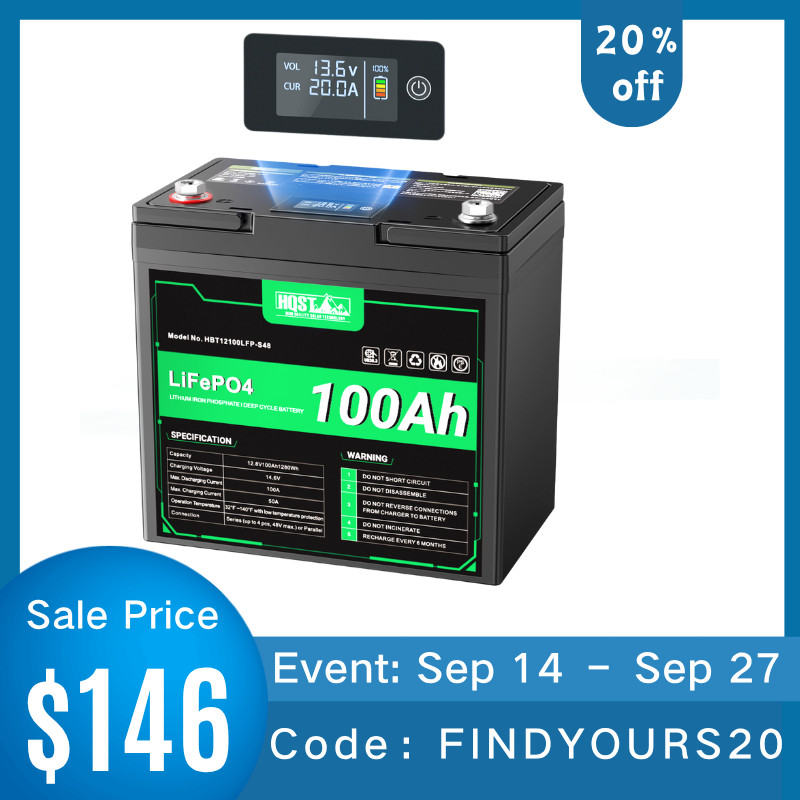

12V 100Ah LiFePO₄ Battery – 1280Wh, 10+ Year Life ⚡ Upgrade to LiFePO₄ · 10+ Year Life 12V 100Ah LiFePO₄ Battery Full 1280Wh · Mini Group 22NF · Expandable to 48V / 20.48kWh Model: HBT12100LFP-S48SC-G8-US 🔋 10+ Years Lifespan
Grade A LiFePO₄ cells + advanced 20+ protection BMS, 8000+ cycles at 70% DOD, far longer than lead-acid
📦 Mini Size · Full Capacity
Compact Group 22NF design, up to 52% smaller than Group 31, only 21 lb, fits tight spaces
🔗 Expandable to 48V
Supports 4S4P series/parallel, up to 16 batteries for 20.48kWh storage – ideal for RV/solar/off-grid
⚡ 100% Usable Power
Full 1280Wh usable capacity, 100A continuous discharge, 20A recommended charge (50A max)
🏕️ One for Day Trips · Two for Weekends
Single unit powers fridges, lights, fans, fish finders. Real-time LED display shows capacity, voltage, current
📸 Product Images & Applications 📋 Technical Specifications ModelHBT12100LFP-S48SC-G8-US Nominal Voltage12.8 V Energy1,280 Wh Rated Capacity (0.2C)100Ah Cycle Life (0.2C, 25±5℃)8,000 cycles at 70% DOD Max. Continuous Discharge Current100A Max. Charge CurrentOptimal: 20A; Maximum: 50A Max. Charging Voltage14.6V Discharge Cut‑off Voltage10V Self‑Discharge Rate2% ~ 3% per month at 25℃/77℉ Over‑Discharge Recovery Voltage11V Charging Temperature Range0℃ ~ 45℃ / 32℉ ~ 113℉ Discharging Temperature Range-10℃ ~ 60℃ / 14℉ ~ 140℉ Low‑Temperature Protection (Charging)-5℃ ~ +5℃ / 23℉ ~ 41℉ Low‑Temperature Protection (Discharging)-25℃ ~ -15℃ / -13℉ ~ 5℉ High‑Temperature Protection (Charging)60℃ ~ 70℃ / 140℉ ~ 158℉ High‑Temperature Protection (Discharging)70℃ ~ 80℃ / 158℉ ~ 176℉ Storage Temperature Range-20℃ ~ 45℃ / -4℉ ~ 113℉ (1‑3 months)
-20℃ ~ 20℃ / -4℉ ~ 68℉ (1 year+) Recommended Operating Temperature20℃ ~ 30℃ / 68℉ ~ 86℉ Terminal Bolt SizeTailor‑made M8 Internal Resistance≤10mΩ Weight9.5kg / 21 lb Dimensions22.9 × 13.8 × 20.8 cm
13.07 × 8.66 × 6.77 in
Compatible with Group 22NF battery case 📦 Package Contents & Warranty 📦 What\'s in the Box
- 12V 100Ah LiFePO₄ Battery (with carry handle) × 1
- M8 Bolts (pair) × 2
✅ Ready to install – all accessories included 🛡️ Warranty & Support 4‑Year Material & Workmanship Warranty
✅ Safety Certified ✅ IP65 Rated ✅ 20+ BMS Protections 🔌 Charging Recommendation: Use a compatible LiFePO₄ charger, solar panels with a suitable charge controller, or a DC‑DC charger. Recommended charging current is 20A; maximum 50A.
⚡ Upgrade your power system – Ideal for RVs, solar storage, off‑grid cabins, and home backup
