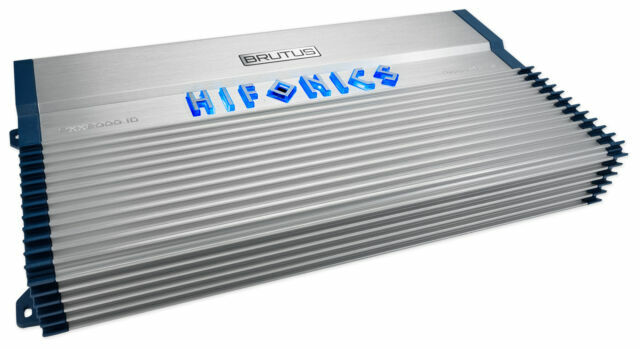

The BXX2000.1D is a 2000 watt mono amplifier featuring Super Class D™ technology with an NGSD digital chip to provide you with an extremely efficient, low temperature, high amplification system that others only dream about. The rock solid Ultra-Fi™ MOSFET outputs are selected for both balance and output power. This keeps power smooth even during demanding peak in the music. All Mono and five channel amplifiers include a bass remote to put the bass control at arm’s length. The amplifiers protection condition is also shown by blue illumination for normal operation and red for a short being present and requires the attention of an installer.
LOW NOISE PRE-AMPLIFIER CIRCUITRYMaximum low voltage signal from the source unit comes into the amplifier circuit with minimal distortionRCA INPUTSNickel-plated RCA jacks create the most effiecient audio connection and resist corrosionOPERATION MODEMono onlyCROSSOVER TYPEVariable electronic crossovers allow for complete control of the soundELECTRONIC EQUALIZERControl of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers.
Check specifications for specific frequencies for this amplifierCLASS / TOPOLOGYSuper D-Class™ designs which employ high-speed microprocessors with proprietary D/A conversion algorithms to efficiently control the current consumption. At very high listening levels, Hifonics amplifiers with Super D-Class circuitry result in lower distortion, higher current efficiencies and less heat than conventional D-Class amplifier designsOUTPUT DEVICE TECHNOLOGYPro-Fi™HEAT SINKClassic aluminum Hifonics design to minimize heat build up on the Ultra-Fi™ output devicesPOWER SUPPLYSimpatico Coil DesignThe dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devicesOUTPUT CONNECTIONSHigh temperature impact resistant nickel plated connectors with allen head set screws which allow for secure termination of wire and creates an erosion resistant sealCONNECTION TYPEMolded and Angled
Secure connection for all Power, Ground and Speaker connections. Angled for ease of access while creating a clean wire mangement profileLED SYSTEM PROTECTION CIRCUITRY DIAGNOSTICSMonitor overload and speaker short protection with illuminated indicators on the amplifier end panelBASS REMOTE INCLUDEDWired Bass Remote allows adjustments to bass frequencies from the control which can be mounted anywhere in the vehicle.PHASE ADJUSTMENTPhase 0-180°
