INLINE 6 Data Link Adapter Heavy Duty Diagnostic Scanner For 3165033

Product Description

INLINE 6 Data Link Adapter Heavy Duty Diagnostic Scanner For 3165033

3165033 Inline 6 Data Link Adapter For Komatsu Diagnostic Tool Kit J1939 J1708

Get INLINE 6 for 5 Reasons:

• The INLINE 6 can communicate with your PC through a 9-pin serial connector. The INLINE 6 also can communicate with your PC over a Universal Serial Bus (USB) through a 4-pin standard connector. The INLINE 6 adapter connects to vehicle power, the SAE J1708/J1587 data link, and two CAN/J1939 data links via a 25-pin serial connector.

• With full compliance to the Technology and Maintenance Council's RP1210 standard, the INLINE 6 will work with the latest INSITE, PowerSpec and Calterm III software applications.

• It will also work with any other software applications that are fully compliant with the RP1210 standard (note that while some non- applications fully support RP1210, others do not, so you should test each application in question with the INLINE 6 adapter to make that determination).

• The eye-catching INLINE 6 breaks new ground by utilizing the latest electronic technology to deliver high performance and high quality at an attractive price.

• Each INLINE kit contains a data link adapter, basic cables, and the INLINE PC software driver. Load the software driver, connect all the hardware, and you are ready to start a new era in data link adapters.

  INLINE 6 Features:
• Supports SAE J1708/J1587 and J1939/CAN data links

• Both CAN ports auto detect between 250 & 500 kbps

• Supports USB full speed port at up to 2M baud rate

• Custom USB cable includes thumbscrews for secure mounting to INLINE 6

• Supports RS-232 PC serial port at up to 115.2k baud rate

• Is fully compliant with TMC's RP1210 standard

• Small enough to fit in pocket

• Attractive black powder coated aluminum housing provides ruggedness

• Derives 8 V to 50 V DC power from vehicle

• Controlled by advanced 140 MHz 32-bit Freescale processor for maximum speed and performance

• Includes 6 LEDs to indicate status of power, USB, RS-232, J1708/J1587, and two CAN communication ports

• Both CAN ports support SAE J1939, SAE J2534, and ISO 15765 protocols

• INLINE 6 is certified to meet European CE requirements

• Rated for -40° to +85° C operating temperature

• INLINE 6 meets rigorous in-cab environmental test requirements

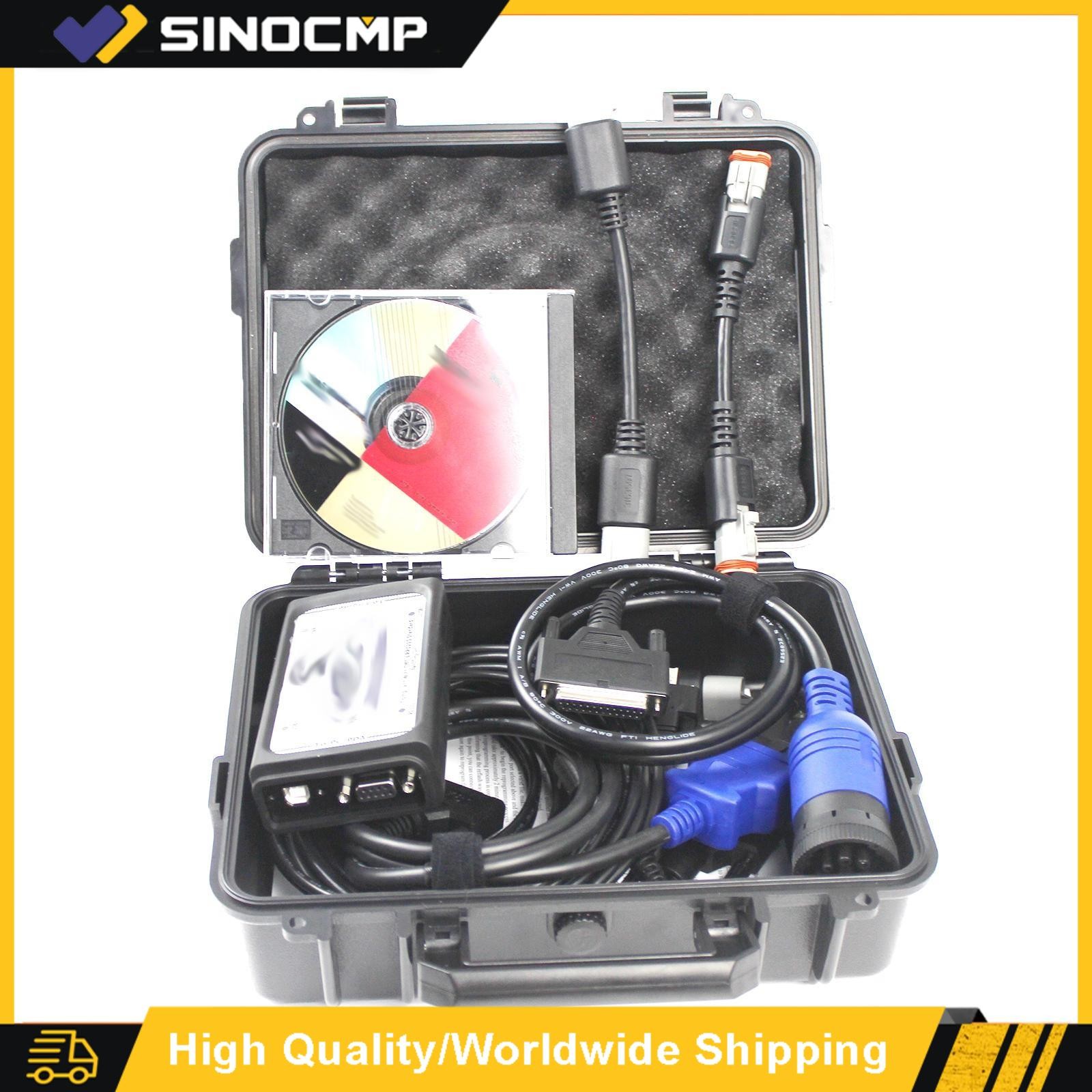

Package Including:

• 1 x INLINE 6 data link adapter (P/N 2892093)

• 1 x USB 14-foot cable (P/N 2892176)

• 1 x DB25F/9-pin data link cable (P/N 4919780)

• 1 x DB25F/3-pin/3-pin/2-pin cable (P/N 4919797)

• 1 x J1939 Gender Changer adapter (P/N 3163597)

• 1 x J1939 Backbone adapter (P/N 3163096)

• 1 x ObdII cable (P/N 4919781)

• 1 x INLINE 6 software CD (P/N 2892095) Include Insite 7.6.2 + keygen

INLINE 6 Quick Start Guide IntroductionThe INLINE 6 is a highly reliable datalink adapter that can be used on a wide range of applications to communicate with vehicle systems via SAE J1708/J1587 and SAE J1939 protocols. Please note that the INLINE 6 is designed to be used with RP1210 compliant software.Minimum System RequirementsMicroprocessor – Intel Pentium 500 MHzMemory – 2 GB CD DriveOperating System – Windows 7, Vista, & XP SP3To Install the INLINE 6 Software Driver• Insert the INLINE 6 driver CD into your computer’s CD-ROM drive.• Run INLINE6_Driver_Setup.exe• If a Windows Explorer folder opens, select INLINE6_Driver_Setup.exeNote that on some systems the autorun settings may be set to have the installation to just begin executing upon CD insertion.IF YOU SEE:WINDOWS XP - A message appear stating “The software you are installing has not passed Windows Logo…” Click “Continue Anyway”. Click “Finish” wheninstallation is complete.

To Install the INLINE 6 USB Hardware:To install the INLINE 6 USB hardware, power up the INLINE 6 by plugging in the USBcable provided with the kit to the INLINE 6 and the PC.

• WINDOWS XP - The Found New Hardware wizard should be displayed.On the first screen, select “Install the software automatically (Recommended)”. Click “Next” to continue. A message may appear “This software has not passed Windows Logo Testing……” Select “Continue Anyway”. Click “Finish” when installation is complete.
• WINDOWS VISTA/WINDOWS 7 - No action is required. The system trayshould display a balloon stating “Installing Inline 6”.
• NOTE: If there is a previously installed INLINE 6 driver, you may need to remove the older driver before proceeding.
• After you have connected your INLINE 6 to your computer and the computer recognizes it as a valid device – you may need to update the firmware in the adapter. Please see the section below on using the INLINE 6 Reflash Tool

• Using Your INLINE 6
• To use the INLINE 6, you must select it from within the application you areusing. Each application has a unique method for selecting datalink adapters.Please refer to the application’s documentation for instructions on selectingRP1210 compliant adapters.
• To Uninstall the INLINE 6 Software Driver
• WINDOWS XP- To remove the INLINE 6 driver, click the “Start”button on the Windows task bar, and then navigate to “Control Panel”. Navigate to “Add or Remove Programs” Click on the entry “ Inline6”. Click the “Remove” button. This will start the uninstall process. Wait until the uninstall process has completed before proceeding.WINDOWS VISTA/WINDOWS 7 – To remove the INLINE 6 driver,
• click the “Start” button on the Windows task bar, and then navigate to “Control
• Panel”. Navigate to “Programs/Features” Click the entry “ Inline6’,
• Click “Uninstall” at the top of the Programs/Features window. This will start the
• uninstall process. Wait until the uninstall process has completed before
