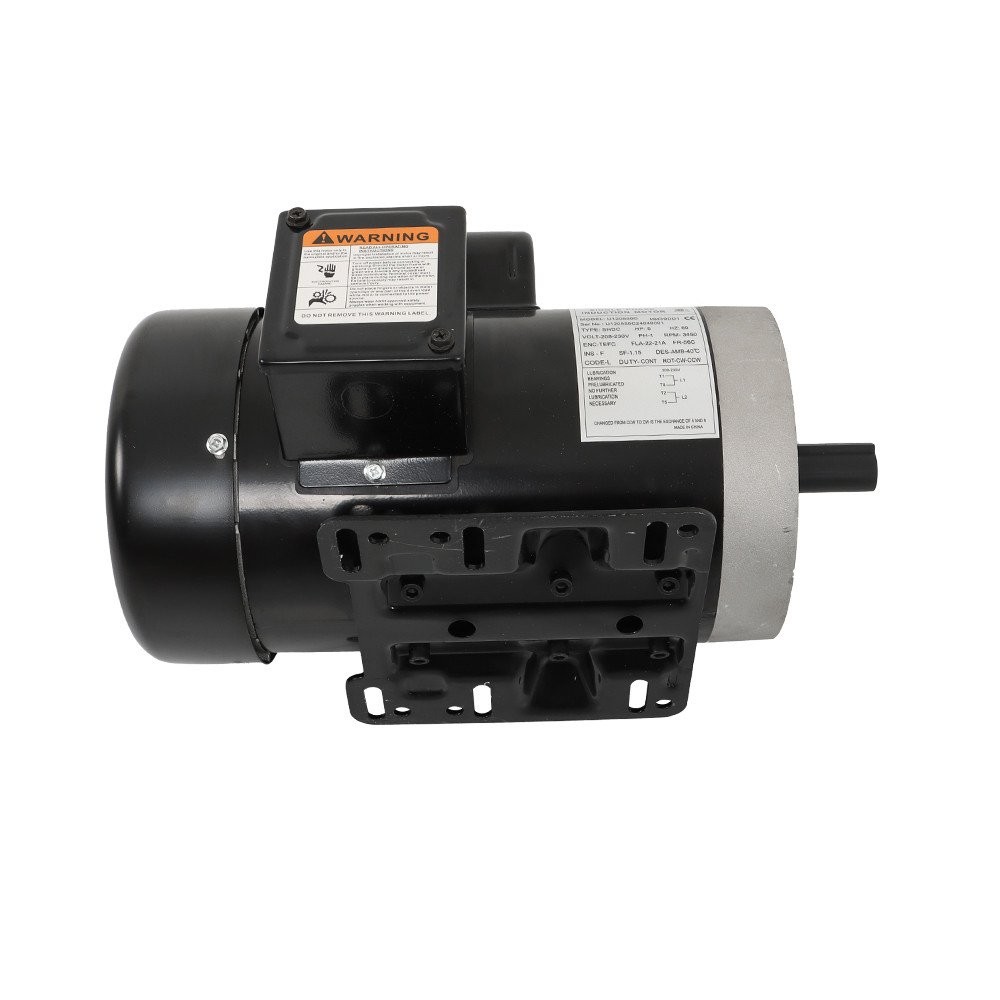

Specifics and features:General Purpose Three Phase Motor: HP - 3,POLE - 2,FRAME -56C, ENC -TEFC,IP - 55Security Persistent: INS - F, Rotation - CW/CCW, Shaft diameter - 5/8",Shaft length - 1.88"Housing Material: Rolled steel shell. Adopt S1 continuous working system, safe and durable, long service lifeHZ: 60Hz, Voltage: 230V/460V, AMP: 9.0A / 4.5A,RPM: 3450Widely Application: General purpose motor is suitable for general equipment. 3HP Electric Motor:The high power motor can improve the work efficiency, is the same type of energy-saving motor, can reduce the energy cost or overhead. Mobile and convenient. LABLT 3HP 60HZ 3450RPM General Purpose Three Phase Motor 230V/460V CW/CCW 2Pole
Specifics and features:
General Purpose Three Phase Motor: HP - 3,POLE - 2,FRAME -56C, ENC -TEFC,IP - 55
Security Persistent: INS - F, Rotation - CW/CCW, Shaft diameter - 5/8",Shaft length - 1.88"
Housing Material: Rolled steel shell. Adopt S1 continuous working system, safe and durable, long service life
HZ: 60Hz, Voltage: 230V/460V, AMP: 9.0A / 4.5A,RPM: 3450
Widely Application: General purpose motor is suitable for general equipment.
3HP Electric Motor:The high power motor can improve the work efficiency, is the same type of energy-saving motor, can reduce the energy cost or overhead. Mobile and convenient.
High Quality Framework:The general purpose motor adopts heavy rolled steel shell structure, high strength, durable. In addition, the smooth surface provides smooth use.
Maximum Speed 3450 RPM:The rated horsepower, rated voltage and rated current should be checked before the general purpose motor is put into operation to ensure that it is used in the correct environment.
Fully Enclosed Fan:Even in harsh environments, a large fan at one end cools the motor during hours of operation to reduce energy costs and operating temperatures for you to save energy.
Sturdy Mounting Bracket:The general purpose motor package for general equipment, includes a rugged mounting bracket to improve motor stability and reduce friction for extended motor life.
Wide Application:The general purpose motors are suitable for general equipment.
After Receiving the Electric Motor
1.Before using the electric motor, ensure that the wiring is correct, run the electric motor without load, and check whether the motor runs normally
2.Under the premise of not exceeding the load, the current of the circuit breaker should be more than three times the rated current of the electric motor before it can be started normally
3.For the conversion of single-phase electric motor and three-phase electric motor with VFD, unpredictable problems may occur, and the operation is not simple, so it is not recommended for non-professional electricians to try.Please buy suitable motor to use
4.If you have any installation and use problems, you can provide clear wiring diagram (you can see the digital coding clearly), working video and so on to consult us. We will reply as soon as possible, please understand
Notes:
We strongly recommend professional installation.
If you are unsure whether the product is suitable for your vehicle, please contact us promptly before purchasing to confirm.
Due to the fact that all detailed dimensions of the product are manually measured, please allow for measurement errors.
Due to lighting issues during photography, the product images in the link may not reflect the actual color of the item.
Thank you for collecting our store and looking forward to working with you.
Item SpecificsCountry of Origin United StatesBrand LABLTMPN QS553712QRRotation CW/CCWCurrent Type ACNominal Rated Input Voltage 230 VSpeed 3450 RPMHorsepower 3HPFrequency 60HZPhase Three phaseCondition NewWarranty 1 Year
