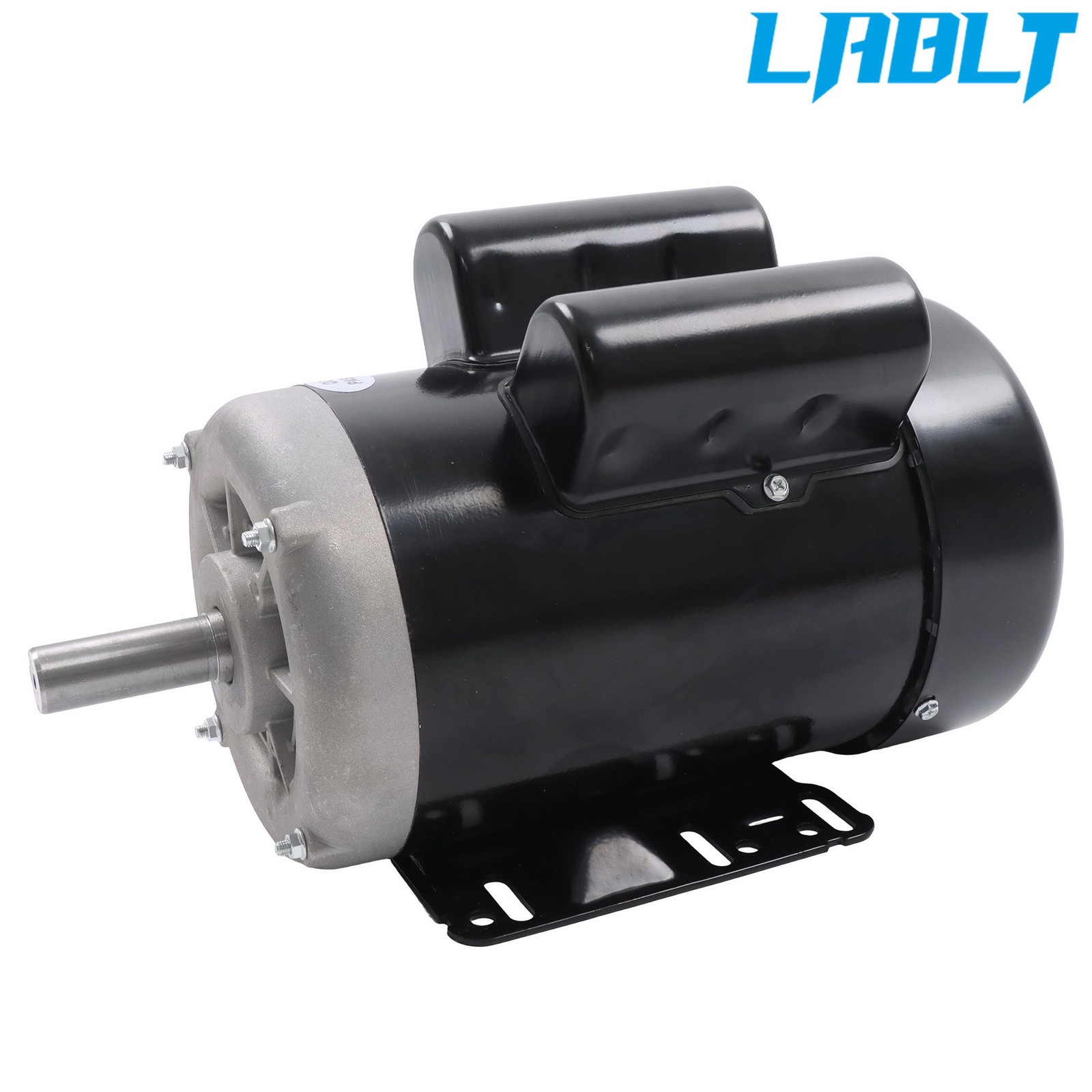

Description:Frequency Rating：60 Rated Input Voltage：230VRated Load (HP)：3Special Motor Construction：Spindle MotorCurrent Type：ACShaft Diameter：7/8 inEnclosure Type： TEFC (Totally Enclosed Fan Cooled)Phase：Single PhaseInsulation Class：F (Max 311°F)Mounting Type：Base-MountedPole :２Amps：12.4AMotor Type：Induction/AsynchronousBase RPM：3450RPMIP Rating：IP55Shaft Length：2.25inProtector：NonHousing Material：Rolled steel shellModel：Farm Electric MotorIEC Frame Size：145TSynchronous Speed:3600 RPM LABLT Farm Duty 3HP Motor Single-phase 145T TEFC 3450RPM 230V 7/8" Shaft Dia
Description:
Frequency Rating：60 Hz
Nominal Rated Input Voltage：230V
Rated Load (HP)：3
Special Motor Construction：Spindle Motor
Current Type：AC
Shaft Diameter：7/8 in
Enclosure Type： TEFC (Totally Enclosed Fan Cooled)
Phase：Single Phase
Insulation Class：F (Max 311°F)
Mounting Type：Base-Mounted
Pole :２
Amps：12.4A
Motor Type：Induction/Asynchronous
Base RPM：3450RPM
IP Rating：IP55
Shaft Length：2.25in
Protector：Non
Housing Material：Rolled steel shell
Model：Farm Electric Motor
IEC Frame Size：145T
Synchronous Speed:3600 RPM
Housing Material: Rolled steel shell. Adopt S1 continuous working system, safe and durable, long service life, INS - F, Rotation - CW/CCW, Shaft diameter - 7/8", Shaft length - 2.25".
High Working Efficiency: Compact structure and small size, electric motor can run at the maximum speed of 3450 rpm, high working efficiency; There are lots of heat sinks, so it has huge heat sinks.
Fully Enclosed Fan: The TEFC electric motor with large fan at one end, even in wet and dusty conditions, cools the motor during long runs, thus reducing energy costs, reducing operating temperatures and increasing service life.
Application for:
Widely Application: 3HP electric motor widely used in industrial and agricultural production, transportation, commercial and household appliances and other fields. For example, water pump, agricultural machinery and so on.
Package Includes:
1 ×3HP Single-PhaseGeneral Electric Motor3450RPM 145T 7/8" Shaft TEFC 230V 60Hz
About LABLT:
LABLT has rich experience in the production, sales and after-sales service of Industrial parts. For many years, we have been committed to providing professional and personalized services to enhance the shopping experience of buyers. If you need any parts, please come to LABLT to buy them. We look forward to cooperating with you!
Item SpecificsBrand LABLTMPN OM437229OCShaft Diameter 7/8 inEnclosure Type TEFC (Totally Enclosed Fan Cooled)IP Rating IP55Rated Load (HP) 3Poles 2AC Phase Single PhaseNominal Rated Input Voltage 230 VMotor Type Farm Duty MotorIEC Frame Size 145TAC Frequency Rating 60 HzMounting Type Base-MountedReversible/Non-Reversible ReversibleShaft Length 2.25 inShaft Type KeyedCountry of Origin United StatesInsulation Class F (Max 311°F)Housing Material Rolled steel shellBase RPM 3450Amps 12.4 AWarranty 1 Year
