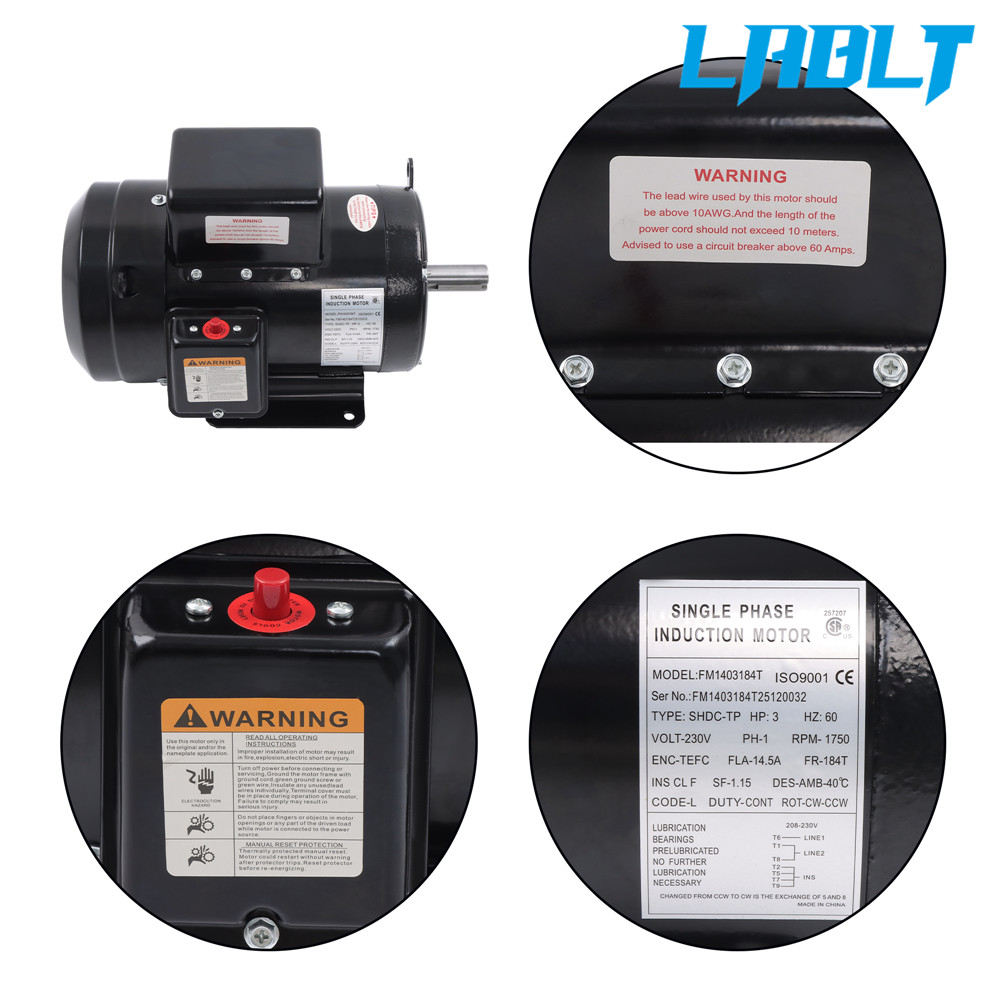

Description:3 HorsepowerSingle PhaseTEFC / IP55 Fully EnclosedPoles: 4184T FrameService Factor 1.15Class F Insulation208-230 Volt1800 RPMFan CooledShaft Length: Approximately 2 7/8"Keyed 1 1/8" Diameter ShaftCurrent: ACFull Load Amps: 12.960 HZShaft Material: 1045 Carbon SteelMax Temp: 40 Degrees CSteel HousingFast Heat DissipationTwo Rotation CW/CCW3HP Electric MotorHigh power motor can improve the work efficiency, is the same type of energy-saving motor, can reduce the energy cost or overhead.Fully Enclosed Fan LABLT Farm Duty 3HP Motor Single-phase 184T TEFC 1800RPM 208/230V 1-1/8" Shaft
Description:
3 Horsepower
Single Phase
TEFC / IP55 Fully Enclosed
Poles: 4
184T Frame
Service Factor 1.15
Class F Insulation
208-230 Volt
1800 RPM
Fan Cooled
Shaft Length: Approximately 2 7/8"
Keyed 1 1/8" Diameter Shaft
Current: AC
Full Load Amps: 12.9
60 HZ
Shaft Material: 1045 Carbon Steel
Max Temp: 40 Degrees C
Steel Housing
Fast Heat Dissipation
Two Rotation CW/CCW
3HP Electric Motor
High power motor can improve the work efficiency, is the same type of energy-saving motor, can reduce the energy cost or overhead.
Fully Enclosed Fan
Even in harsh environments, fans cool the motor within hours of operation to reduce energy costs and operating temperatures, saving you energy.
Maximum Speed 1800 RPM
The rated horsepower,voltage,current should be checked before the motor is put into operation to ensure that it is used in the correct environment.
High Quality Framework
The electric compressor motor adopts heavy rolled steel shell structure, high strength, durable. In addition, the smooth surface provides smooth use.
Working Efficiency
The listing is about a 3HP 1800 RPM single phase farm duty motor. CW/CCW two running directions, according to their own needs, arbitrary switch.
Package Includes:
1 × 3HP Single-PhaseGeneral Electric Motor
About LABLT:
LABLT has rich experience in the production, sales and after-sales service of Industrial parts. For many years, we have been committed to providing professional and personalized services to enhance the shopping experience of buyers. If you need any parts, please come to LABLT to buy them. We look forward to cooperating with you!
Item SpecificsCountry of Origin United StatesBrand LABLTMPN OM436752OCShaft Diameter 1 1/8 inEnclosure Type TEFC (Totally Enclosed Fan Cooled)IP Rating IP55Rated Load (HP) 3AC Phase Single PhaseNominal Rated Input Voltage 208 V, 230 VService Factor 1.15IEC Frame Size 184TAC Frequency Rating 60 HzMounting Type Base-MountedReversible/Non-Reversible ReversibleInverter/Vector Duty Rating Not Inverter/Vector Duty RatedShaft Type KeyedInsulation Class H (Max 356°F)Insulation Class H (Max 356°F)Protection Against Liquids Not ProtectedBase RPM 1800Full Load Amps 13.5Color BlackFeatures 3 Horsepower Single Phase TEFC / IP55 Fully EnclosedDesign Heavy DutyWarranty 1 Year
