HDMI Matrix Switch Series4x4 HDMI Matrix Switch8x8 HDMI Matrix Switch16x16 HDMI Matrix Switch4x4 Seamless HDMI Matrix8x8 Seamless HDMI Matrix8x16 Extender HDMI Port:HDMI*4HDMI*8 HDMI*16HDMI*4HDMI*8HDMI*8Output Port:HDMI*4HDMI*8 HDMI*16HDMI*4HDMI*8HDMI*16Chip:3.4G high-bandwidth chip3.4G high-bandwidth chip3.4G High-bandwidth Chip3.4Gbp3.4Gbp18GbpsResolution: Way:IR remote control, Button Switch, LAN control, RS232,
Web controlIR remote control, Button Switch, LAN control, RS232,
Web controlIR Remote Control, Button Switch, LAN Control, RS232,Web ControlIR remote control, Button Switch, LAN control, RS232,
Web controlIR remote control, Button Switch, LAN control, RS232,

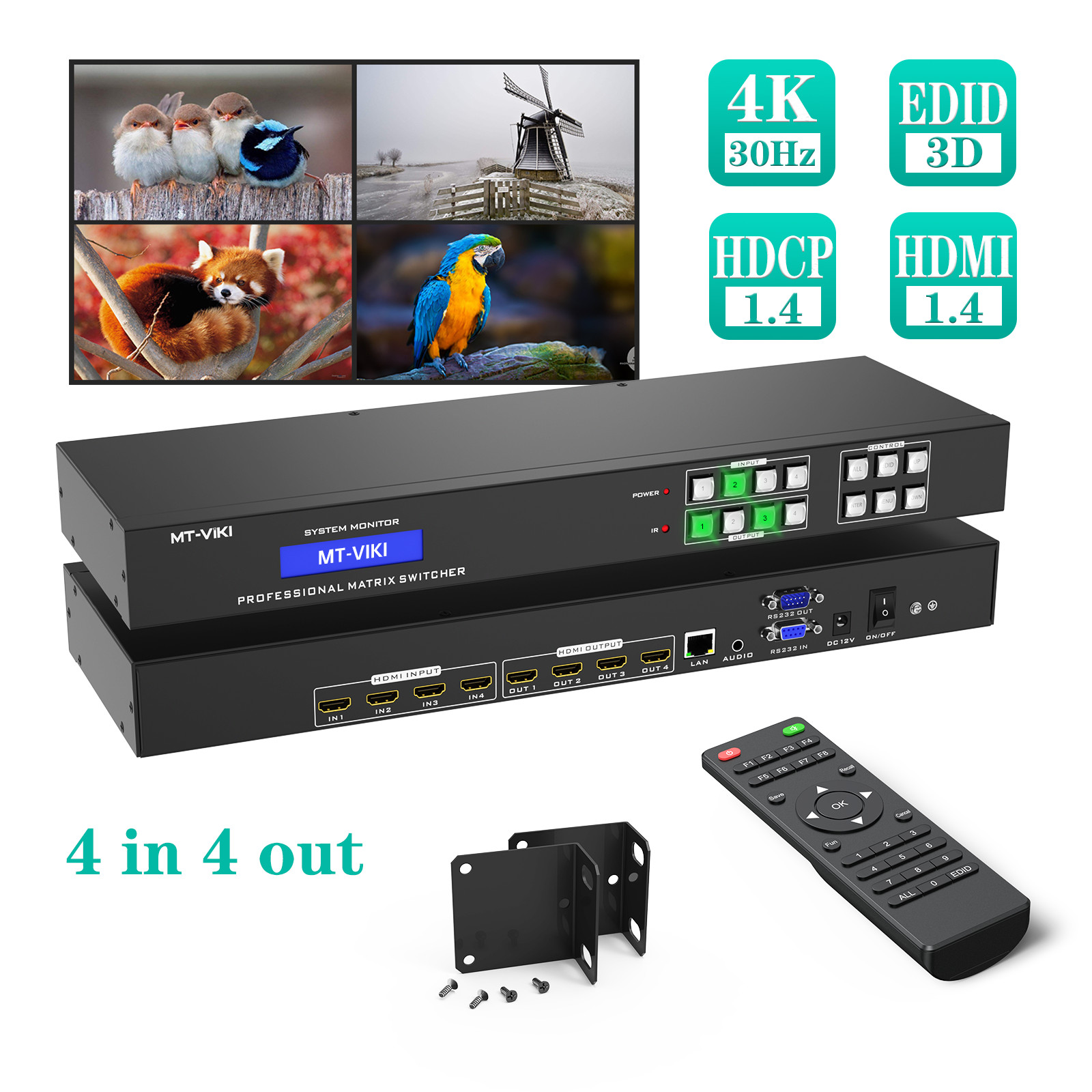

Web controlButton, IR remote control, RS232, LAN port, WEB GUI, The-third-party, Android APP Equipment Height:1U1U2U1U1U2UMT-VIKI 4K@30hz 4x4 HDMI Matrix Switch，MT-HD44L
This 4×4 HDMI Matrix routes up to four 4K HDR HDMI sources to four 4K HDR display devices. Allow all outputs to mirror the same signal or independently route unique input signals to each display for a fully customized HDMI routing matrix.
Technical ParameterOutput Port:4*HDMIAudio Output:Support left and right analog stereo soundInput Port:4*HDMIStatic Protection:Human body discharge mode: ±8KV (air gap discharge) ±4KV (electric)Equipment Height:1UControl Method:Standard : button, RS, remote control switch Optional,WEB control,APP controlSupport Supply:DC12V2AControl lnterface:RS232IN *1/RS232 OUT*1/LAN*1Input VoltagePo:AC100V-260AVC,50/60HZHDMI Version:HDMI1.4Wer Consumption:8WHDCP lugs)Color Space:Support R GB, YUV, YUV colorspace, supportX.V.COLORextendedc olor
- 4K@30Hz with 3D support
- 3.5mm analog audio extraction (Output 4 only)
- 5 control methods: Web GUI / Android App / IR remote / RS232 / Front panel buttons
- Power-off memory — restores last state after power loss
- EDID management for optimal resolution matching
- 1U rack-mountable (ears included)
- Supports PCM, Dolby AC3, DTS 5.1/7.1, DSD
Typical Applications:ScenarioHow to use🎮 4 game consoles to 4 TVsEach TV shows a different console🏢 Conference roomLaptop to projector + main screen + two side monitors🏋️♂️ Gym / Sports barMultiple screens showing different sports channels🎬 Home theaterOne source to TV, another to projector, audio extracted to soundbarPackage：
- 1 x HDMI Matrix switch 4x4
- 1 x RS232 Cable
- 1 x IR Remote
- 1 x Rack ears & screws
- 1 x Power cable & adapter
- 1 x CD driver
- 1 x User Manual
Important Note：
- ⚠️ 3.5mm audio extraction works ONLY on Output 4. If you need analog audio, connect your speaker to OUT4.
About Us： MT-VIKI, is a professional A.V transmission supplier and manufacturer from 2003, like HD switcher, splitters, KVM switch, matrix switcher, video wall controller, multi-viewer, hdmi transmitter and receiver, and other accessories.You May Also Need – Perfect Match for Your SetupWireless HDMI Transmitter and Receiver1x4 HDMI SplitterVGA + AUDIO to HDMI Adapter3x1 HDMI SwitchDP to HDMI advanced chipXIntegrated advanced Way:Plug and PlayPlug and PlayPlug and PlayButton Switch, Remote ControlPlug and Play
