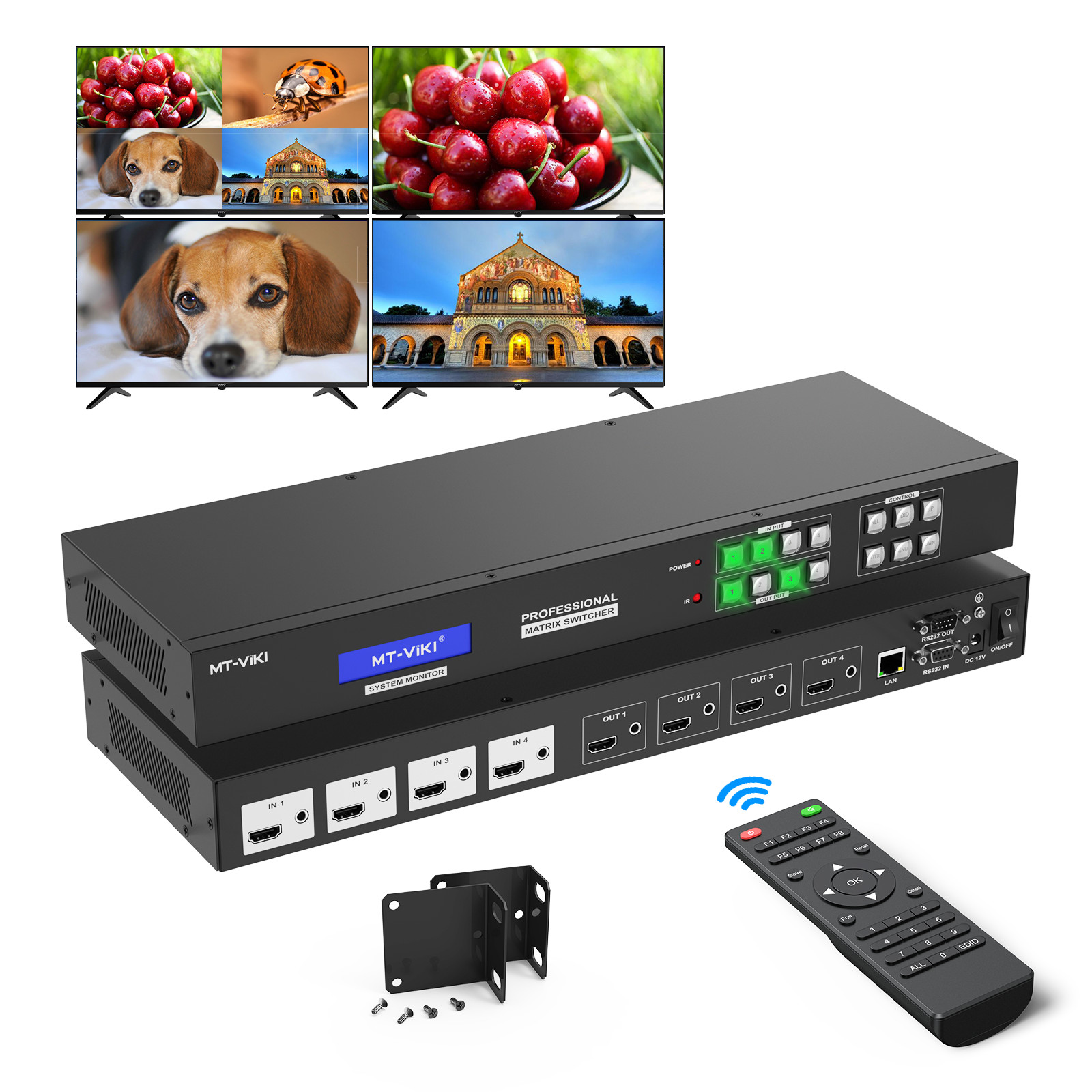

Web ControlEquipment Height:1U1U1U2U1U2UMT-VIKI 4K@30Hz Seamless Multi-functional HDMI Matrix Switcher 4x4, MT-HD44LH
This multi-functional HDMI matrix switch has 4 display modes: Split/Splicer/Seamless matrix/Bypass matrix. Only in seamless matrix mode can support seamless switching.
Key SpecificationsModel:4x4 HDMI Matrix with Video WallAudio I/O:3.5mm Audio Jack (Input & Output) – Supports Audio Embedding & De-embeddingVideo Resolution:Up to 4K@30Hz (3840x2160), backward compatible with 1080pControl Methods:Front Panel Buttons, IR Remote, RS-232, LAN (TCP/IP), Web GUI, Android/iOS APPSwitching Mode:Seamless Switching (No black screen / No delay)Chassis:1U Rackmount Design (Rack Ears Included)Special Features:Video Wall / Split Screen / Splicing / Rotation / Mirror ImageCompatibility:HDCP 1.4, HDMI 1.4, Supports EDID ManagementHDMI Compatible:HDMI 1.4 (Downward compatibility)Power Supply:DC 12V 2AControlling Software:Professional Control SoftwarePower Consumption:≤6WRS-232:Potter rate: 115200, data bit: 8, stop bit: 1, no strangepuppet verificationElectrostatic:Human Model: 8KV (air discharge), + 4KVVideo Format:4K*2K@30HzProtection:Contact DischargeColor Features:1. True 4K@30Hz Visual Experience
Supports 4K@30Hz ultra-high-definition resolution input and output, backward compatible with 1080p. Whether for home theater or commercial display, it ensures crystal-clear image quality.
2. Powerful Video Wall & Multi-View Functions
This is more than just a switcher—it's a video wall processor.
Seamless Switching: Switch between input sources with no black screen, no tearing, no delay. Perfect for live streaming, stage performances, and conference presentations.
Splicing / Video Wall: Combine up to 4 displays into one large video wall, or display multiple sources on a single screen (Multi-View).
Rotation & Mirror: Supports 90°/180°/270° rotation and mirror mode—ideal for vertical digital signage, TikTok/Instagram live streaming, or special installation requirements.
3. Comprehensive Audio Embedding & De-embedding
Equipped with independent 3.5mm analog audio input and output jacks.
Audio De-embedding: Extract digital audio from HDMI signals and output to external amplifiers or sound systems.
Audio Embedding: Mix external audio (from a microphone or music player) into the HDMI output.
Note: Supports independent switching between HDMI audio and 3.5mm audio output to meet complex audio setup requirements.
4. Six Control Methods for Every Scenario
Say goodbye to limited control options. This unit offers full flexibility:
Visual Front Panel: LCD display shows real-time input/output status with responsive tactile buttons.
IR Remote: Included remote control for easy desktop operation.
RS-232 Serial Port: Compatible with mainstream control systems (Crestron, Control4, etc.)—ideal for integrators and bulk deployments.
TCP/IP LAN & Web GUI: Simply enter the IP address in any web browser for visual control—no software installation required.
Android/iOS APP: Control remotely via smartphone or tablet for added convenience.
5. 1U Rackmount Design
Built with a durable metal chassis and standard 1U height. Rackmount ears are included for secure installation in server racks, or it can be placed on a desktop. Designed for 24/7 continuous operation with excellent heat dissipation.
Application Scenarios:
Conference Rooms / Training Rooms: Share multiple laptops or computers with projectors and displays.
Control Centers / Security Monitoring: Display multiple camera feeds on a video wall for easy monitoring.
Home Theater: Connect gaming consoles, streaming devices, and Blu-ray players with seamless switching and external audio support.
Digital Signage: Support vertical screen rotation for retail displays, menus, and advertisements.
Live Streaming / Events: Seamless switching and multi-view capabilities for professional production setups.
Package Contents:
1x Seamless HDMI Matrix 4x4
1x RS232 Cable
1x IR Remote
1x Rack ears & screws
1x Power cable & adapter
1x Ground wire
Scan code for user manual and software
