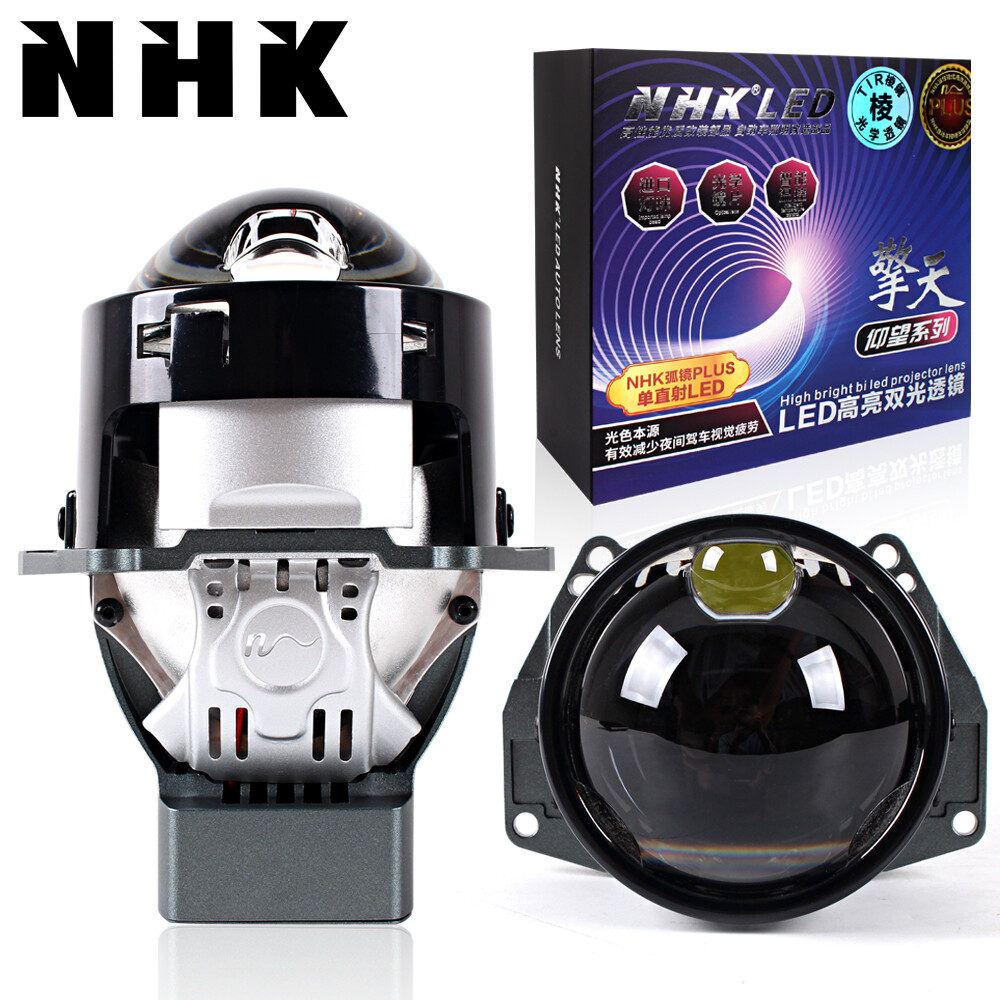

NHK M5 PLUS Bi LED Projector Lens Hyperboloid LED Headlight 160W 6000K Retrofit
The latest TIR technology：
TIR biprism ability to collect the lightemitted by LED beads canachieve a refractive efficiencyof over 90%, reflecting thelight out.Under the samepower, the utilization rate oflight is improved comparedto traditional reflective 100% Brand New, never been used or installed
Size：3.0 Inch
Voltage：9V-16V
Color (Low beam). 160W/Pair (High beam)
Driver：Dual reflector, built-in LED driver, suitable for headlight follow-up
Light Beam：LHD
Product Description：
Convex Glasses Lens: Hyperbolic lens with separate direct lens for greater brightness.
LED chips: Made of high luminous efficacy LED chips,instant start without delaying, not only more efficiency and powerful but also energy saving.
Cooling System: Features a powerful cooling fan, CPU grade fin heat sink. Using of imported, professional high temperature resistant LED chip , 80000 hours of continuous work with LED.
Solenoid Motor: Ensure heat dissipation effectively, expose more light through the lens, improved he lens performance.
LED driver: Integrated intelligent temperature control processing system,Digital LED drivers monitor fan speed for optimal heat protection and stable performance.
Bolt Pattern: Featuring a "G5" bolt pattern gives you access to a long list of compatible retrofit brackets featured on our website. While this unit does not have a threaded shaft for easy reflector based installs; it can be retrofitted into many makes and models that have pre-made brackets for popular vehicles.
Wiring: Please note that these units come with 5 bare wire leads. One power and ground for each of the low and high beam inputs. The 5th wire is for additional high beam center intensity light. We recommend tying this in with the standard high beam hook up. We offer pre-attached 9006 and 9005 inputs for easier hook up. Single filament applications can use a direct connection to factory low beam plug with a high beam splitter. Dual filament applications will require a MotoControl wiring harness to make this unit plug and play.
Package includes:
A pair of NHK 3.0 inch Bi-LED Projector Hyperboloid Lens
Wiring Pinout:
Black - Low Beam Ground
Red - Low Beam Power
White - High Beam Power
Blue - High Beam Ground
Yellow - Additional High Beam Light Power
