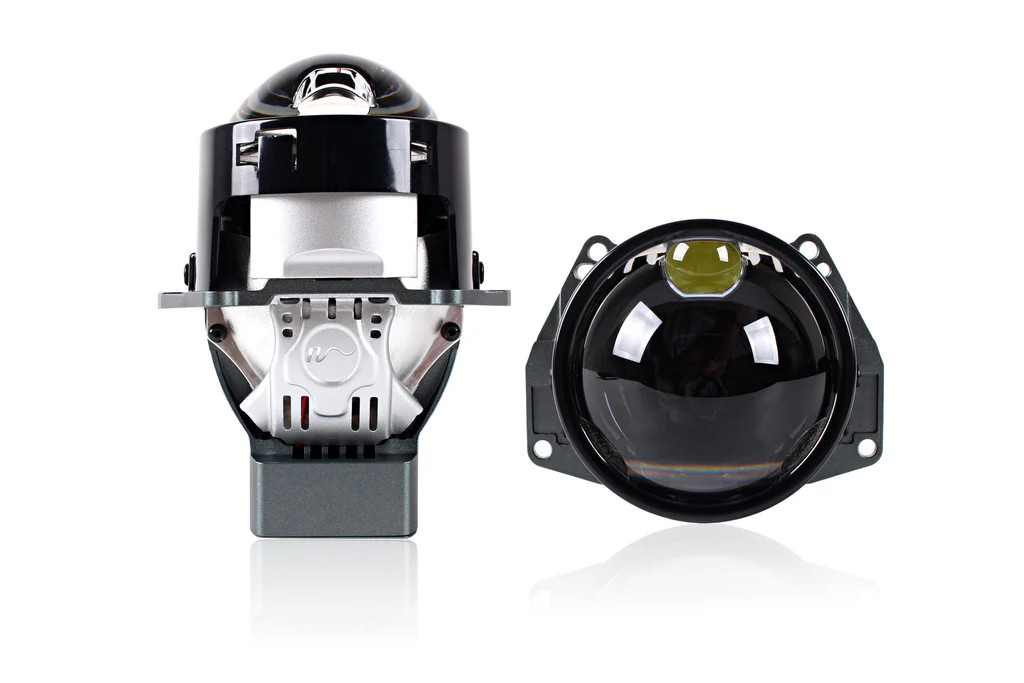

TIR Optics:Welcome to the new flagship NHK Bi-LED unit. Featuring TIR lens technology. This allows for more control and better efficiency, which leads to superior lighting performance.
Output:The M5 is the successor to the V series. Ultra crispy cutoff with a very well optimized hot spot. This projector is set up to maximize low beam and high beam intensity.
Color:Featuring a cool white 6000K color temperature with a thick blue band at the cutoff for maximum color flicker that spans across the whole beam pattern. If flicker is what you are into; this is your unit!
Bolt Pattern:Featuring a "G5" bolt pattern gives you access to a long list of compatible retrofit bracketsfeatured on our website. While this unit does not have a threaded shaft for easy reflector based installs; it can be retrofitted into many makes and models that have pre-made brackets for popular vehicles.
Noise:This unit features a whisper-quiet fan in comparison to other LED projectors and bulbs on the market. Fan is located at the rear of the unit, please allow some space for air to recirculate if using a weather cap on the back of the unit.
All In One:The NHK M5 Bi-LED is a complete package. No external drivers, just wire up the low and high beam and you are good to go. This is excellent for the users that hate mounting ballasts and additional wiring in their vehicles.
Wiring:Please note that these units come with 5 bare wire leads. One power and ground for each of the low and high beam inputs.The5th wire is for additional high beam center intensity light. We recommend tying this in with the standard high beam hook up. We offer pre-attached 9006 and 9005 inputs for easier hook up. Single filament applications can use a direct connection to factory low beam plug with a high beam splitter. Dual filament applications will require a MotoControl wiring harness to make this unit plug and play.
What's Included:2x NHK M5 plus Bi-LED Projectors (LHD)
Warranty:3 Years
Tech Specs:Depth: 146mmWidth: 108mmHeight: 82mm
Aircraft aluminum cooling
Intelligent temperature control system
Fast and efficient heat dissipation.
Low Beam: 60W
Hight Beam: 70W+10W (dual reflector bowl)
Wiring Pinout:
Black - Low Beam Ground
Red - Low Beam Power
White - High Beam Power
Blue - High Beam Ground
Yellow - Additional High Beam Light Power
