If your machine is experiencing downtime, we offer overnight, two-day, and three-day shipping options during checkout. Please select one of these options. Otherwise, the package will be shipped via standard UPS Ground or USPS Ground Advantage

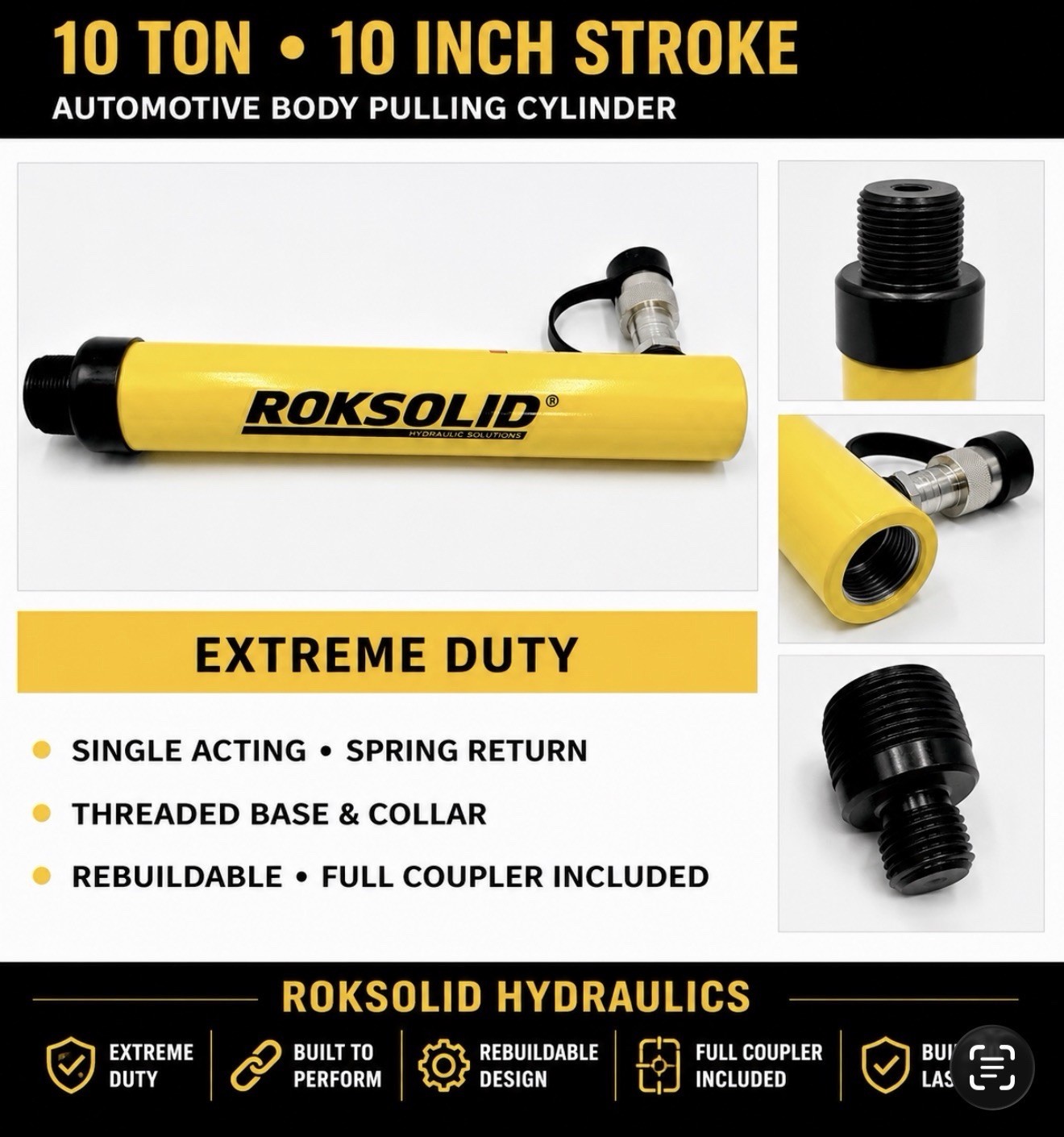

Equipped with identical specifications to the Power Team C1010CBT, Enerpac RA-1010, and OTC 4105A, each unit undergoes rigorous testing and quality control at our facility to ensure exceptional quality.
Plunger Thread Size and Base threads are the industry standard 1-1/4"-12
Fits many frame machines
Kindly contact us if you have any inquiries regarding the fitment of our cylinders.
Center Hole Dia.: 1 1/4 in
Single Acting
Bolt Circle Dia.: 6.3"
Oil Capacity: 22.61 cu. in.
Cylinder Type: General Purpose
Includes: Coupler, Dust Cap
Stroke Length: 10 1/8 in
Item: Hydraulic Ram
Plunger Dia.: 1.25 in
Body Material: Steel
Outside Dia.: 2.25 in
Retracted Height: 15.88 in
Handle: No
Extended Height: 26 in
Max. Pressure: 10,000 psi
Effective Area: 2.23 sq. in.
Plunger Thread Size: 1-1/4"-12
Effective Push Area: 2.23 sq in
Oil Capacity Push: 22.61 cu in
Nominal Capacity: 10 ton
Nominal Stroke Length: 10 in
Series: RA
Max. Push Capacity: 10 ton
Type: Single-Acting, Spring Return
Keep your cylinder performing like new!
Get the matching seal kit: RokSolid 10 Ton Hydraulic Cylinder Seal Kit (Item 267623617320) — fits 6, 8, 10, 12, 14, 16 inch stroke models for easy maintenance and repairs.
