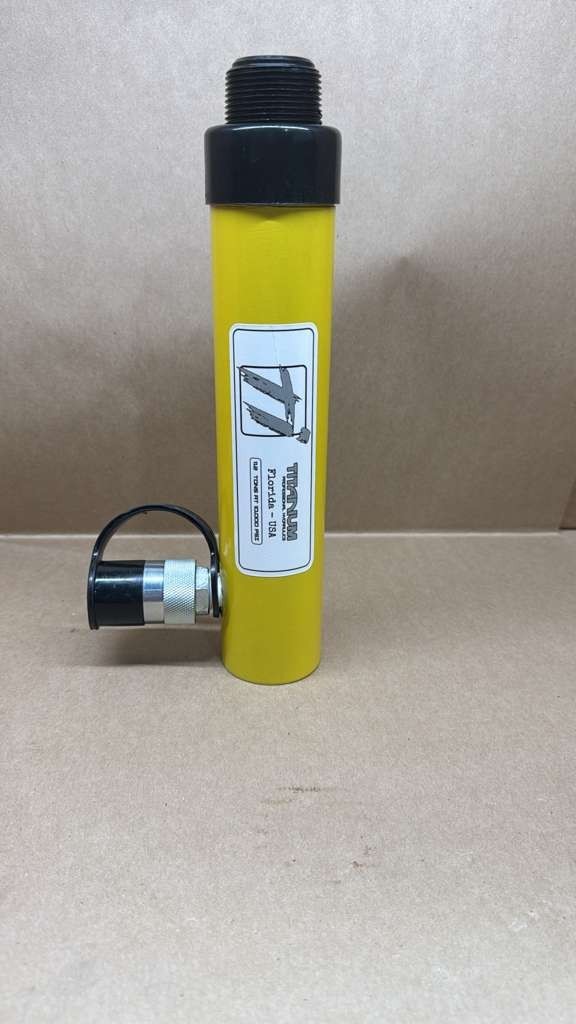

Equipped with identical specifications to the Power Team C1010CBT, Enerpac RA-1010, and OTC 4105A, each unit undergoes rigorous testing and quality control at our facilities to ensure exceptional quality.
Center Hole Dia.: 1 1/4 in
Single Acting/Double Acting: Single Acting
Bolt Circle Dia.: 6.3"
Oil Capacity: 22.61 cu. in.
Cylinder Type: General Purpose
Includes: Coupler, Dust Cap
Stroke Length: 10 1/8 in
Item: Hydraulic Ram
Plunger Dia.: 1.25 in
Body Material: Steel
Outside Dia.: 2.25 in
Retracted Height: 15.88 in
Handle: No
Extended Height: 26 in
Max. Pressure: 10,000 psi
Effective Area: 2.23 sq. in.
Plunger Thread Size: 1-1/4"-12
Effective Push Area: 2.23 sq in
Oil Capacity Push: 22.61 cu in
Nominal Capacity: 10 ton
Base Bolt Circle Dia.: 6.3 in
Nominal Stroke Length: 10 in
Series: RA
Max. Push Capacity: 10 ton
Type: Single-Acting, Spring Return
