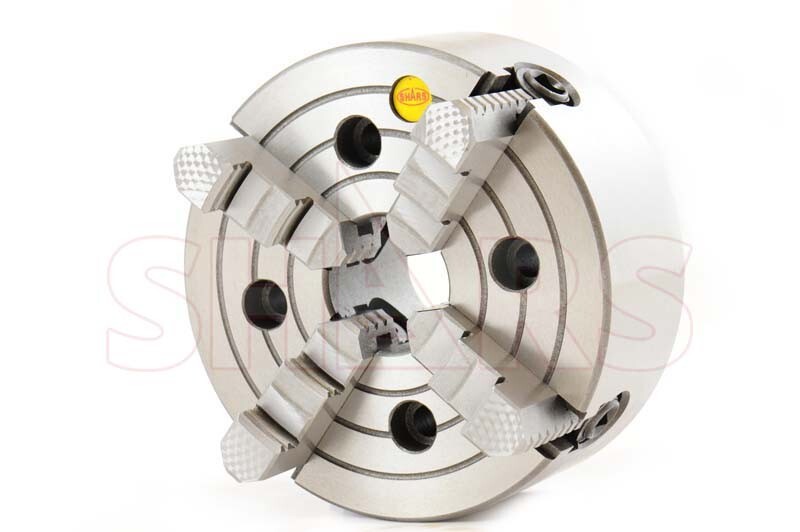

Shars 6\" 4 Jaw Independent Lathe Chuck with TIR Certification NewEach high quality chuck comes with acertificationProduct description SKU 202-5420 MFG SKU # 202-5420 LATHE CHUCK CATEGORY Independent Lathe Chucks BRAND Shars Tool CHUCK DIAMETER 6 THRU HOLE SIZE 1.772 MOUNTING Plain Back CHUCK THICKNESS 2.559 JAW MOVEMENT Independent NUMBER OF JAWS 4

Product application

• A matching back plate (sold separately) would need to be machined on the face and hub OD in order to fit this chuck. For detailed information, please look for the Shars back plate machining guide.
• Accuracy is maintained for the entire clamping range
• Semi-steel chuck body made from high quality cast iron

• Three operating screw design with each ground and hardened to HRC 43
• Two piece jaw design with a master jaw and a top reversible jaw in American Standard tongue and groove specification
• Both side of jaw teeth and guides are ground and hardened to HRC 58-62

• Each set of jaws are serialized in their own set
• A serialized set of jaws are then finished, ground, and lapped on their designated chuck body which will be the same chuck body on the final assembly to achieve a greater accuracy

• Before assembling the jaw to its designated chuck body, the jaw\'s finish machining are performed on a closed tolerance state of the art CNC machine from Japan

• Operating screw\'s thread flank are ground on both side to achieve a tighter contact with the master jaw
• Each chuck has gone through rigorous accuracy and repeatability inspection with clamping and jamming multiple random testing rods or rings

plain back mounting

size (inch) Back Mounting D (inch) D1 (inch) D2 (inch) D3 (inch) H (inch) H1 (inch) h (inch) h1 (inch) z-d (metric) 3 plain back 3.150 2.165 2.598 0.866 2.323 1.693 0.157 　 4M-6 4 plain back 3.937 2.835 3.307 0.984 3.031 2.126 0.157 　 4M-8 6 plain back 6.299 2.559 3.740 1.772 3.661 2.559 0.197 　 4M-10 8 plain back 7.874 2.953 3.740 2.205 4.213 2.953 0.236 　 4M-10 8 D1-4 7.874 2.501 3.252 2.205 4.213 2.953 0.512 0.394 3M-10X1 10 plain back 9.843 4.331 5.118 2.953 4.724 3.150 0.236 　 4M-12 10 D1-6 9.843 4.188 5.252 2.953 4.724 3.150 0.630 0.512 6M-16X1.5 12 plain back 12.598 5.512 6.496 3.740 5.433 3.543 0.236 　 4M-16 12 D1-6 12.598 4.188 5.252 3.740 5.433 3.543 0.630 0.512 6M-16X1.5 16 plain back 15.748 6.299 7.283 4.921 5.630 3.740 0.315 　 4M-16 20 plain back 15.748 7.847 9.291 6.299 6.299 4.135 0.315 　 4M-20 Product includes

• Included 1 set of reversible solid hard jaws
• 4 mounting screws
• 1 lathe chuck key
• Inspection report on runout on both inside and outside jaws
