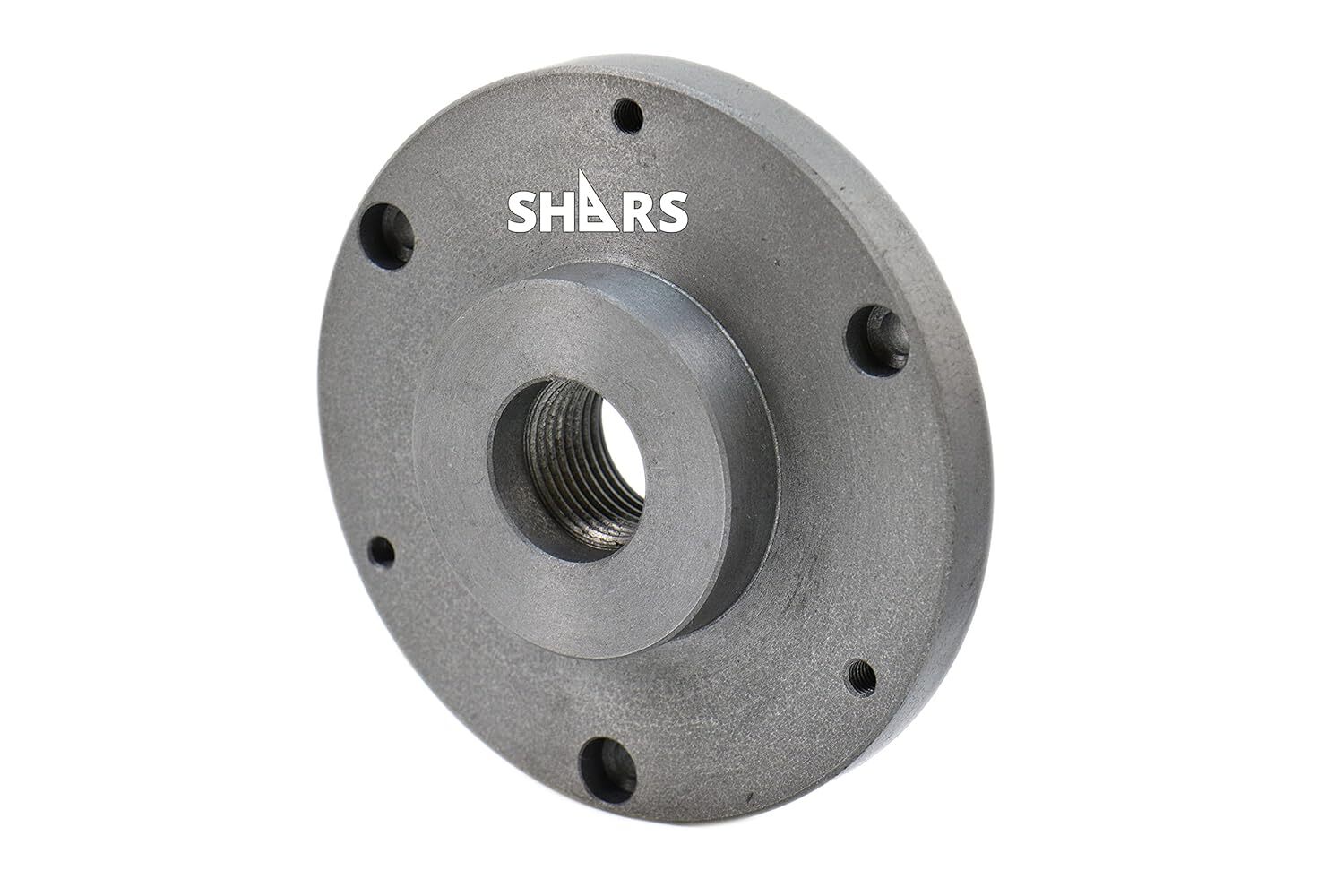

Shars 6\" Fully Machined Threaded Back Plate 1-1/2-8:
$89.99
Shars 6\" Fully Machined Threaded Back Plate 1-1/2-8 for 3 or 4 Jaw Self Center Chuck 202-6109 S
Product Details
- Back plate needs to be machined in order to fit the lathe chuck
- Back Plate Diameter: 6\"
- Mounting Thread Size: 1-1/2\'\' x 8 TPI
- Shoulder Diameter: 5.118\"; Bolt Circle Diameter: 5.591\"
- Compatible Chuck Diameter: 6\"; No. of Studs 3
Fully machined back plate can be mounted onto 4\"3 jaw or 4 jaw self centering and independent lathe chuck (p/n 202-5,202-5). You would not need to drill any mounting holes but you will need to turn the shoulder down .050\" to match the back of the lathe chuck to make the chuck & back plate more concentric with the lathe spindle. When turning the shoulder of the backing plate, ONLY TURN THE SHOULDER OF THE BACKING PLATE WHEN ATTACHED TO THE LATHE SPINDLE. If you use a chuck to clamp the backing plate and then turn it, the backing plate will not be true to the lathe spindle and will have more runout than specified when the chuck and back plate are put together.
