Nominal Coil Voltage: 12 V DC
Coil Power: 1.8 W
Coil Resistance: 80 Ω
Must Operate Voltage: 6~8 V DC
Must Release Voltage: 0.6~3.6 V DC
Maximum Applied Voltage: 15.6 V DC
Contact Ratings: NO 40A 14V DC
Contact Resistance: 100mMAX (at6VDC 1A)
Max Switching Current: 40A
Max Switching Power: 560 W
Life Expectancy Electrical: 100,000 Operations (at30 Operations/minute)
Life Expectancy Machanical: 10,000,000 Operations
Temperature Range: -30 ~ +80 degrees Celsius
Vibration Resistance: 10~55Hz, 1.5mm
Shock Resistance: Operations Extremes: 10g. Damage Limits: 100g
Hunidity: 40% ~ 85%
Insulation Resistance: 100mΩ Min at500VDC
Dielectric Strength Between Open Contacts: 500VAC (for one minute/sec)
Between Contactw and coil: 750AC (for one minute/sec)
Operate Tice: 7ms

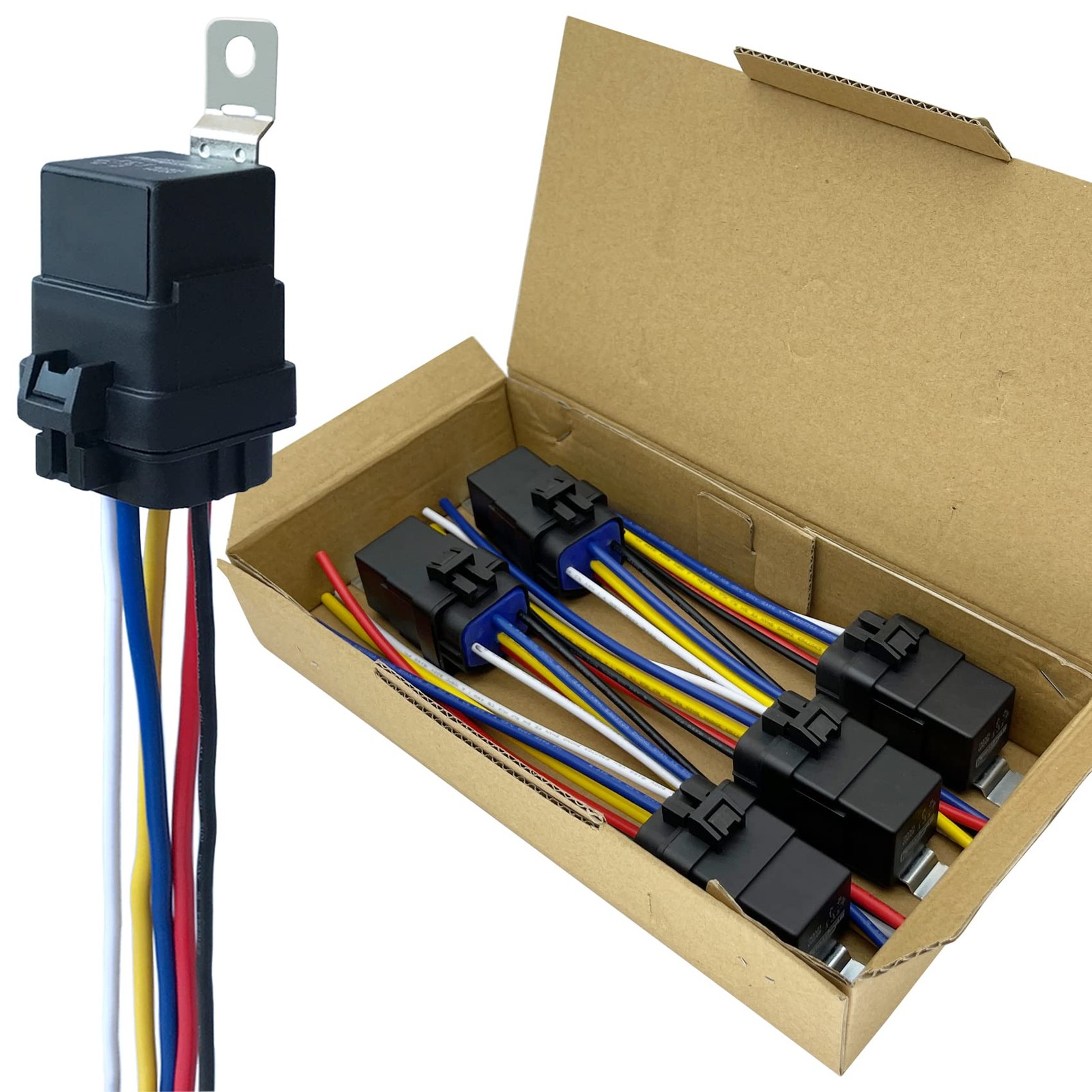

Release Tice: 5ms Package Content: 5 x 12VDC waterproof relay kit
Never go beyond its capabilities. Try to stay 10 to 15% below what the rate is for
12-volt 5-prong relay. Excellent water-repellent and dustproof ability, but not using it in water
Be careful when inserting the relay into the socket. If you force it, you will bend the female connectors
Primary leads use 12 a.w.g tinned copper wire. Coil leads use 16 a.w.g
Nominal Coil Voltage: 12 V DC; Coil Power: 1.8 W; Coil Resistance: 80 Ω; Must Operate Voltage: 6~8 V DC; Must Release Voltage: 0.6~3.6 V DC; Maximum Applied Voltage: 15.6 V DC
