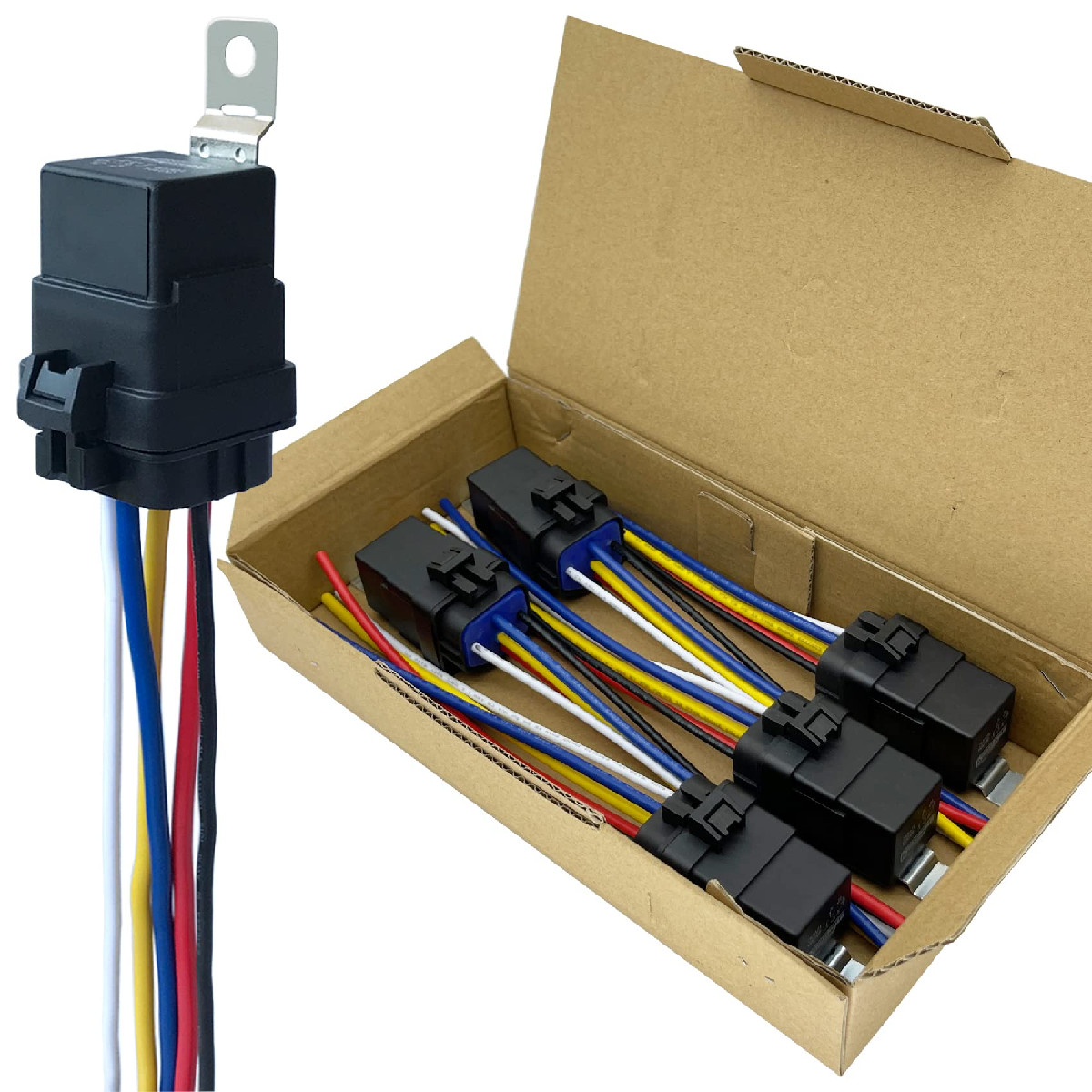

Irhapsody 5 Pack 40/30 Amp 12V Dc Waterproof Relay Kit Heavy-Duty Pigtail 5-Pin For Sale

Irhapsody 5 Pack 40/30 Amp 12V Dc Waterproof Relay Kit Heavy-Duty Pigtail 5-Pin Product Features

• Never go beyond its capabilities. Try to stay 10 to 15% below what the rate is for
• 12-volt 5-prong relay. Excellent water-repellent and dustproof ability, but not using it in water
• Be careful when inserting the relay into the socket. If you force it, you will bend the female connectors
• Primary leads use 12 a.w.g tinned copper wire. Coil leads use 16 a.w.g
• Nominal Coil Voltage: 12 V DC; Coil Power: 1.8 W; Coil Resistance: 80 Ω; Must Operate Voltage: 6~8 V DC; Must Release Voltage: 0.6~3.6 V DC; Maximum Applied Voltage: 15.6 V DC

Description Nominal Coil Voltage: 12 V DCCoil Power: 1.8 WCoil Resistance: 80 ΩMust Operate Voltage: 6~8 V DCMust Release Voltage: 0.6~3.6 V DCMaximum Applied Voltage: 15.6 V DCContact Ratings: NO 40A 14V DCContact Resistance: 100mMAX (at6VDC 1A)Max Switching Current: 40AMax Switching Power: 560 WLife Expectancy Electrical: 100,000 Operations (at30 Operations/minute)Life Expectancy Machanical: 10,000,000 OperationsTemperature Range: -30 ~ +80 degrees CelsiusVibration Resistance: 10~55Hz, 1.5mmShock Resistance: Operations Extremes: 10g. Damage Limits: 100gHunidity: 40% ~ 85%Insulation Resistance: 100mΩ Min at500VDCDielectric Strength Between Open Contacts: 500VAC (for one minute/sec)Between Contactw and coil: 750AC (for one minute/sec)Operate Tice: 7msRelease Tice: 5msPackage Content: 5 x 12VDC waterproof relay kit Specifications Itemweight 1.23 pounds
