Carlson SuperProbe2 Case Kit2W 4ohm Mounted SpeakerLi-Ion Battery 780mAh Protected Battery & Charger Module
Mounting hardware
(No affiliation with Mr Carlson\'s Lab)
We strongly recommend our SP101K2, SP101K2ASM,SP101K3A, SP101K3AASMkits to go with the CaseKit. The K2/K3A kits contain all of the extra components to fit the case machining and you won\'t have to source these parts.
This kit combines our BatteryPack Kit and a fully machined ABS case for the SuperProbe2 amplifier. This battery pack is the same used in our implementation on the Instructables site and shown in the photos. Use our other kits (MK0, MK1, MK2, MK3) for PCBs and probe to complete the SuperProbe2.As seen on YouTube and commented on on many other sites, Paul Carlson designed a very useful non-contact very high gain electronic probe for investigating just about any kind of electrical signal from audio to RF. The design is well proven and open-sourced. There are also several open-source PCB designs for the probe and amplifier, but most of them are SMD designs. This is likely the primary barrier to building a one-off implementation of this design.
Anyone interested in building the probe should first review:
Carlson\'s YouTube video @ @ search for many other reviews and assembly hints.

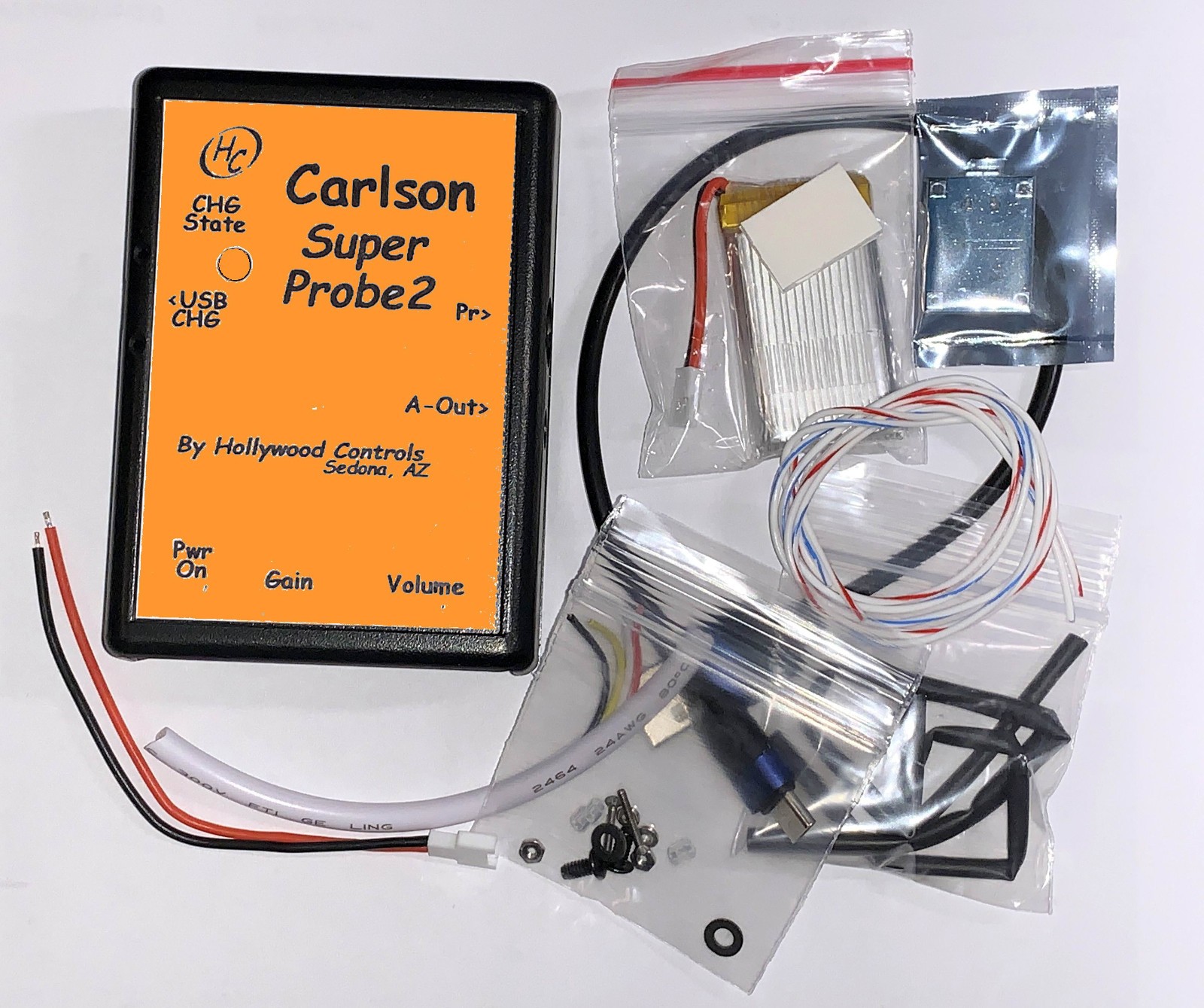

The KitThis kit includes a machined case, mounted 2W 4ohm speaker, protected 780mAh Li-Ion Battery with connector, a TP4056 1A charger module, (2) 0-80/4-40 mounting screws & hardware, battery connector cable, USB charging cable, wire, shrink tubing schematic.
SP101K2 or (SP101K1 & SP101K2X) or SP101K3A kits are required for complete SuperAmp2 assembly.
ParticularsBuyers Note: collects 12-25% of the final price of every transaction on this platform, so it is an expensive place to run a small business. We try to provide a good value to customers anyhow. Warranty return is 30 days, buyer pays return shipping.Flat First Class (GA) Shipping with Tracking.
Ask questions before ordering.
